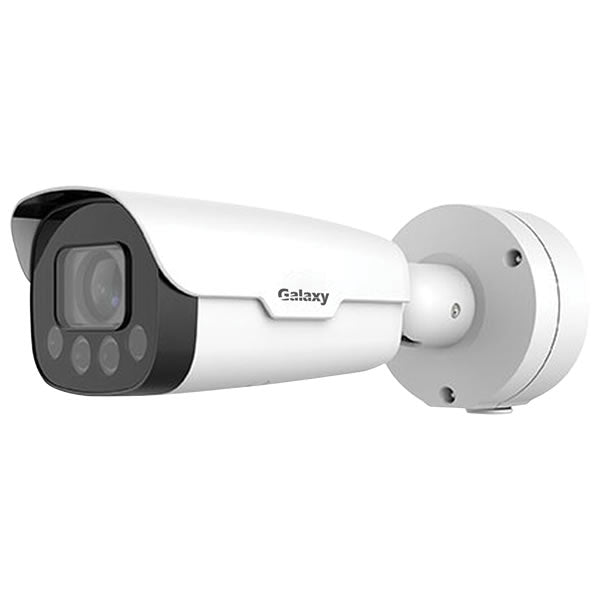

GX842FSL-AI Galaxy Pro AI 2MP Starlight WDR IR Motorized VF IP Bullet Camera
GX842FSL-AI Galaxy Pro AI 2MP Starlight WDR IR Motorized VF IP Bullet Camera
Model: GX842FSL-AI
Regular price
$1,128.10
Sale price
$1,128.10
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
2MP, 1920x1080, @60fps, Ultra265, 0.002Lux, 120dB WDR, IR up to 100m (328ft), Audio, Alarm, MicroSD slot, IP67, IK10, Human & Vehicle, 10X Optical Zoom, 5-50mm Motorized VF, Heater, PoE
Couldn't load pickup availability
- High quality image with 2MP,1/2.8'' CMOS sensor
- 1920*1080@60fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- Five streams offer more choices for different clients in an integrated solution
- 10X optical zoom allows for closer viewing of subjects
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Built-in heater, support normal start-up at low temperature
- DC12V or PoE+(IEEE 802.3at) power supply
| Camera | |
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour:0.002 lux (F1.6, AGC ON) 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Lens | |
| Lens type | 5~50mm@F1.6, AF automatic focusing and motorized zoom lens |
| Iris | DC-iris |
| Angle of View (H) | 4.71°~55.87° |
| Angle of View (V) | 2.65°~33.21° |
| Angle of View (O) | 5.56°~68.72° |
| DORI | |
| DORI Distance | Lens (5mm), Detect 82.2m(269.8ft), Observe 32.9m(107.9ft), Recognize 16.4m(54.0ft), Identify 8.2m(27.0ft) |
| Illuminator | |
| IR Range | Up to 100m (328.1 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 2MP (1920*1080),Max 60fps; Sub Stream: 1080P (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps; Fourth Stream: D1 (720*576), Max 60fps; Fifth Stream: D1 (720*576), Max 60fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video stream | Five streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas per scene |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events | |
| Basic Detection | Motion detection, Audio detection, Tampering alarm |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8KHz |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR,NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | Galaxy8000 |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| Built-in Heater | Support |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC |
| Certifications | |
| Certifications | CE, FCC |
| General | |
| Power | DC12V(+/-25%) , PoE+ (IEEE 802.3at) |
| Power consumption: Max 13W | |
| Power Interface | Dia. 5.5mm coaxial power plug |
| Dimensions (L x W x H) | 354 x 105 x 98mm (13.9" x 4.1" x 3.9) |
| Weight | 1.93kg(4.25lb) |
| Working Environment | -40°C~60°C(-40°F ~ 140°F), Humidity: </=95% RH (non-condensing) |
| Storage Environment | -40°C~70°C(-40°F ~ 158°F), Humidity: </=95% RH (non-condensing) |
| Surge protection | 6KV |
| Reset button | Support |
| Heater | Support |
| Protection | Ingression protection: IP67 Vandal resistant: IK10 |
