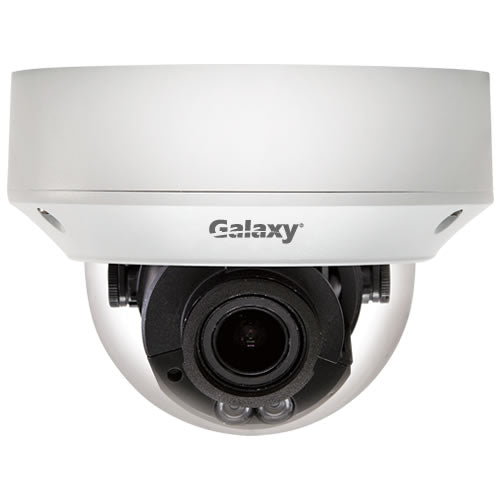

Galaxy Pro Series 2MP VF IR Dome Camera - 2.8~12mm
Galaxy Pro Series 2MP VF IR Dome Camera - 2.8~12mm
Model: GX782F-IR
Regular price
$245.05
Sale price
$245.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
1/2.7" CMOS, ICR, 1920x1080@30fps, DWDR, H.264, Triple Streams, IR up to 98ft (30m), Micro SD Card Slot, IP66, IK10, 2.8~12mm Manual VF Lens, DC12V / PoE, DC12V output
Couldn't load pickup availability
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- Lowlight surveillance
- 3D DNR (Digital Noise Reduction)
- H.264 High Profile
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- ONVIF Conformance
- Support PoE power supply
- Built-in PoE splitter that outputs DC 12V
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of +/-25%
- IK10 vandal resistant
- IP66
| Camera | |
| Sensor | 1/2.7", 2 Megapixel, progressive scan CMOS |
| Lens | 2.8~12mm@F1.4 |
| Angle of View (H) | 100.0deg. (wide) ~30deg. (tele) |
| Zoom/Focus | Manual |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Min. Illumination | Colour: 0.03 Lux (F1.4, 50IRE) Black & White: 0.01Lux (F1.4, 50IRE) |
| IR Range | Up to 30m (98 ft) IR range |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| WDR | Digital WDR |
| Video | |
| Max. Resolution | 1920 x 1080 |
| Video Compression | H.264,MJPEG |
| Frame Rate | 1080P (1920x1080): Max. 30 fps; 720P (1280x720): Max. 30 fps; D1 (720x576): Max. 25 fps |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Audio | |
| Audio Compression | N/A |
| Two-way audio | N/A |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,NTP,FTP,HTTP, SIP |
| Compatible Integration | ONVIF, API |
| Interface | |
| Audio I/O | N/A |
| N/A | |
| N/A | |
| Alarm I/O | N/A |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| Reset Button | Supported |
| Power Output | DC12V Power Output With PoE |
| General | |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: max.6.6 W (PoE :max.7.2 W) | |
| Dimensions (Dia. x H) | Dia.148 x 111.3 mm (Dia.5.8" x 4.4") |
| Weight | 0.75 kg (1.7 lb) |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity |
| Ingress Protection | IP66 |
| Vandal Resistant | IK10 |
