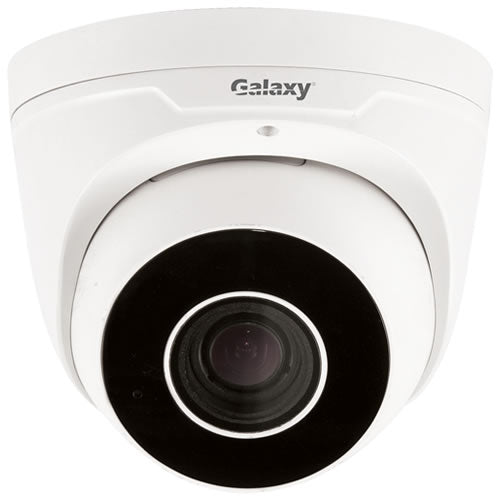

Galaxy Pro 4MP Motorized VF IR Turret Camera - 2.8~12mm
Galaxy Pro 4MP Motorized VF IR Turret Camera - 2.8~12mm
Model: GX715MFV-MIR
Regular price
$356.70
Sale price
$356.70
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
4MP, 2592x1520@20fps, Ultra265, Triple Streams, 120dB WDR, 3D DNR, ICR, Smart Functions, ONVIFIR up to 98ft (30m), Micro SD Card Slot, IP67, IR Anti-Reflection Window, 2.8-12mm Motorized VF Lens, DC12V / PoE
Couldn't load pickup availability
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 30m (98ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.264, MJPEG
- Triple streams
- 9:16 corridor mode
- ONVIF Conformance
- Support PoE power supply
- Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| Camera | ||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |
| DORI Distance | Lens (2.8mm),Detect (63m),Observe (25.2m),Recognize (12.6m),Identify (6.3m) Lens (12mm),Detect (270m),Observe (108m),Recognize (54m),Identify (27m) |
|
| Angle of view (H) | 91.0° ~ 27° | |
| Angle of View (V) | 54.4° ~ 13.7° | |
| Angle of View (O) | 118.3° ~ 33.2° | |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |
| Minimum Illumination | Colour: 0.005Lux (F1.4, AGC ON) 0Lux with IR |
|
| Day/Night | IR-cut filter with auto switch (ICR) | |
| S/N | >52dB | |
| IR Range | Up to 30m (98ft) IR range | |
| wavelength | 850nm | |
| IR On/Off Control | Auto/Manual | |
| Defog | Digital Defog | |
| WDR | 120dB | |
| Video | ||
| Video Compression | Ultra 265, H.264, MJPEG | |
| H.264 code profile | Baseline profile, Main Profile, High Profile | |
| Frame Rate | Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
|
| Video Bit Rate | 128 Kbps~16 Mbps | |
| 9:16 Corridor Mode | Supported | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 8 areas | |
| ROI | Up to 8 areas | |
| Motion Detection | Up to 4 areas | |
| Image | ||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |
| Digital noise reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |
| Dewarping | Support | |
| HLC | Support | |
| BLC | Support | |
| Audio | ||
| Audio Compression | G.711 | |
| Suppression | Supported | |
| Sampling Rate | 8KHZ | |
| Storage | ||
| Edge Storage | Micro SD, up to 256GB | |
| · Network Storage | ANR , NAS(NFS) | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |
| Client | EZStation EZView EZLive |
|
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||
| Interface | ||
| Built-in Mic | Supported | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |
| Certifications | ||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
|
| General | ||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |
| Power consumption: Max 8.16W | ||
| Dimensions (Ø x H) | ?129 x 110mm (Ø5.08 x 4.3) | |
| Net Weight | 0.82kg (1.8lb) | |
| Material | Front cover? plastic Spherical upper shell?metal globe rear-cover?metal shell?metal base?metal |
|
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ?95% RH (non-condensing) | |
| Strorage Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ?95% RH (non-condensing) | |
| surge protection | 6KV | |
| Ingress Protection | IP67 | |
| Reset Button | Supported | |
