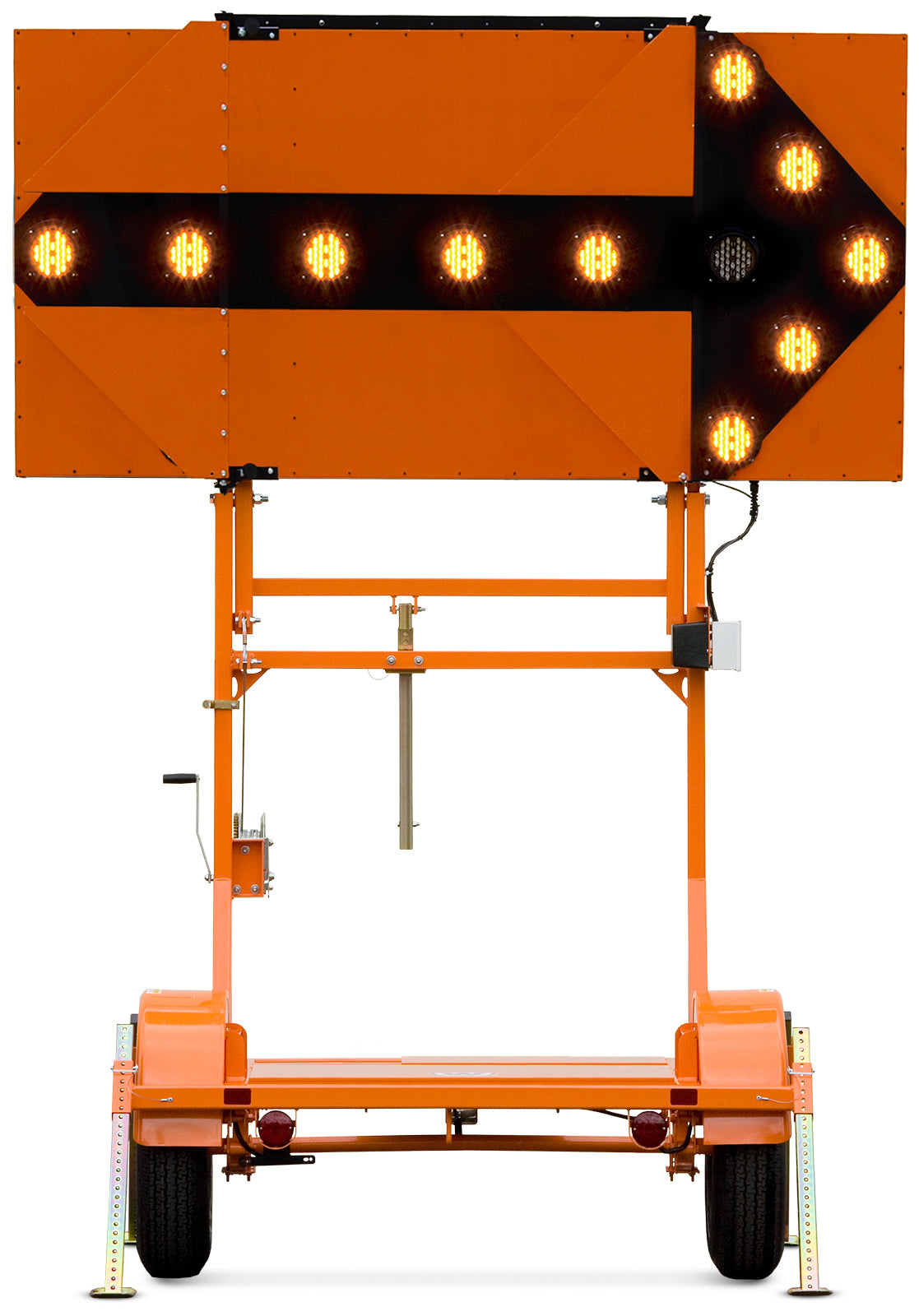

GX-WTSP55-LSA-MTO
GX-WTSP55-LSA-MTO
Model: GX-WTSP55-LSA-MTO
Regular price
$11,962.50
Sale price
$11,962.50
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
15 light arrow board Folding Frame
PLASTIC FENDER
48"X96" 15LT LED ARROW BOARD
15LT SOLAR CONTROL BOX
100 WATT SOLAR ARRAY
2 - 18AH BATTERIES
NO CHARGER
FLAPPER KIT
WANCO LABELS
LEAF SPRING AXLE
LED MARKER LIGHTS
15" TRAILER TIRES
DURABLE ORANGE PAINT
Couldn't load pickup availability
.
Features
- Super-bright LED display
- 7 display patterns
- Energy efficient eco-friendly operation
- Large display is MTO approved
- Maintenance-free batteries
Operation
- High-output amber LEDs legible up to 1 mile (1.6 km)
- Selection of arrow and bar patterns
- Flapper panels and reflective sheeting provide fail-safe operation in case of power failure
- Easy to operate and maintain
- Heavy-duty hand-winch with safety brake allows one person to raise board
- Single locking device holds arrow board in place while operating and during transport
- Controller located safely away from traffic
- Weather-resistant control box cover has lockable slam-latch
- Control box outputs have short-circuit protection, helping prevent blown transistors
- Arrow display has automatic and manual dimming, with flash rates of 30 to 40 per minute
- Stabilizer legs raise tires off the ground to provide stability in high wind
Power System
- Positive-drive voltage system applies power to lamps only when lit
- Power system includes resetting dual circuit breakers, reverse polarity protection, and low-voltage disconnect
- Solar charging system features solid state voltage regulator with charge indicator
- Solar panel mounted above arrow board for continuous no shadow charging
Maintenance
- Maintenance-free batteries
- Durable powder-coat finish resists the elements
- Lamps and visors are easily replaced
- Standard trailer tires
- Heavy-duty bolt-on fenders can be replaced if damaged
Environmental
- Consumes 80% less power than other solar arrow boards
- Smaller batteries have 80% less lead content
- Sealed batteries will not leak or spill
- Decreased charging time saves energy and downtime
- Manufacturing process emits near-zero VOCs (Volatile Organic Compounds)
- Nearly every component can be recycled
| SPECIFICATIONS | |
|---|---|
| WEIGHT | |
| Approx. 1000 lbs. (453kg) | |
| CONSTRUCTION | |
| Trailer | All welded structural steel |
| Arrow board | Aluminum sheet and welded channels |
| Coating | Powder-coated and oven-baked |
| Axle assembly | 2000 lb. (907kg) capacity with 5-on-5.5 inch B.C. idler hub 60-inch wheel track Double eye leaf springs |
| Tires | ST205/75D15 trailer tires |
| STANDARDS COMPLIANCE | |
| MTO approved | |
| POWER | |
| Batteries | Leak and spill-proof valve-regulated lead acid (VRLA) |
| Battery voltage | 12 Vdc |
| Battery capacity | 48 Ah total |
| Number of batteries | Two |
| Solar charging | One solar panel |
| Solar panel regulation | 50 W |
