GX-WTMMB-MTO
GX-WTMMB-MTO
Model: GX-WTMMB-MTO
Regular price
$44,950.00
Sale price
$44,950.00
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
MTO (Ministry of Transpiration of Ontario) Approved

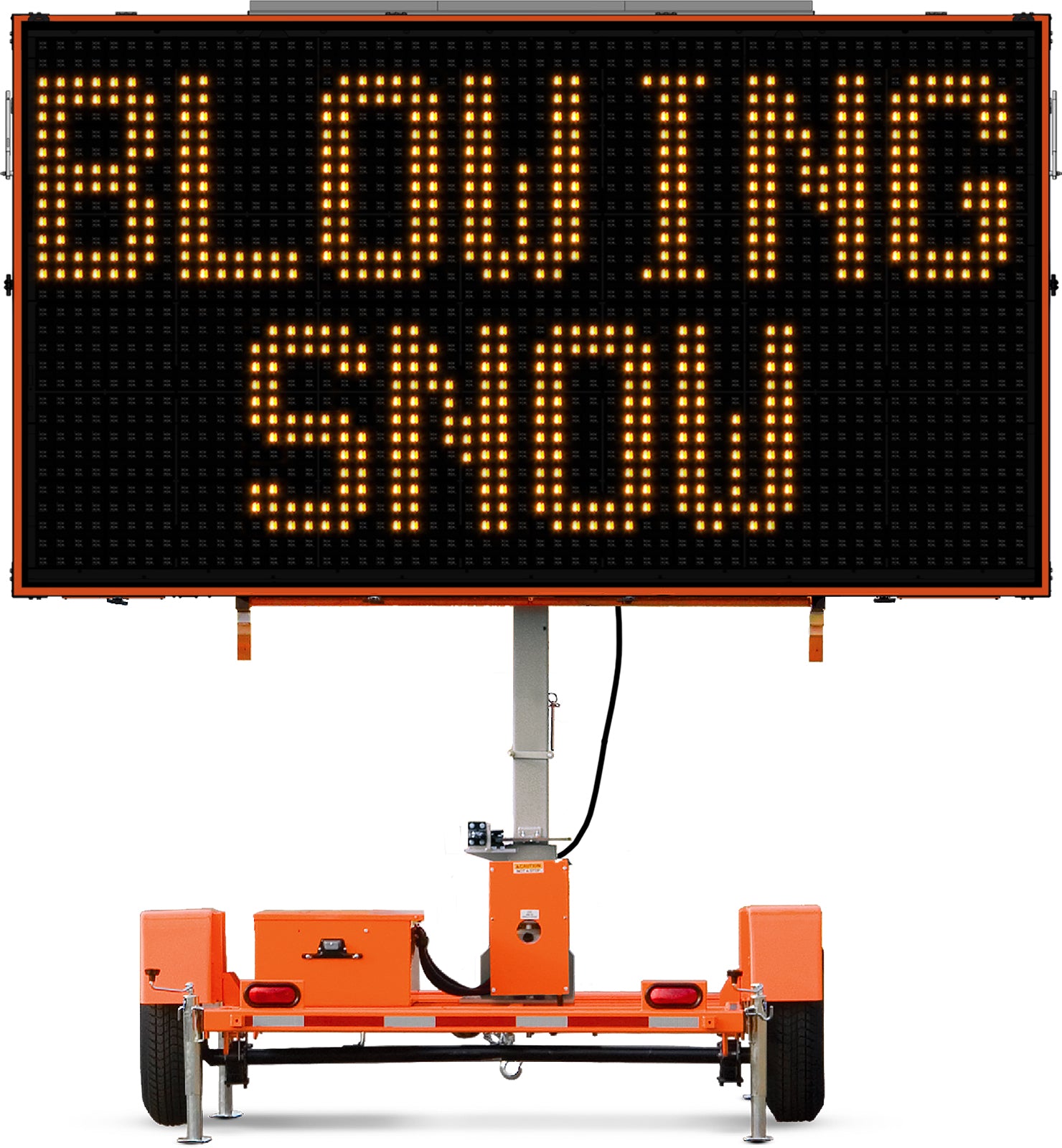

Full Matrix Display (56 x 30 PIXEL) Lensed display modules

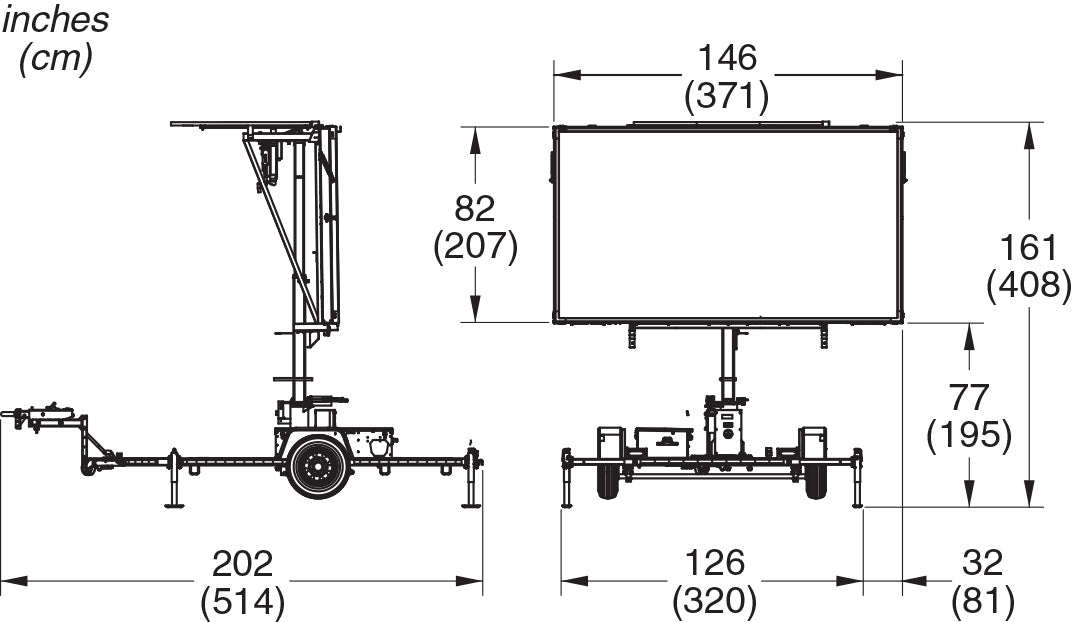

Cabinet : Orange Outside and Black inside 146X82 IN
3" ID pintle hitch with hydraulic surge brake
390Watt pivoting and tilting solar Panel Array
Hydraulic Tower Lift
Riveted battery box with (4) 12V 4D batteries (800AH AGM)
75Amp 12V dc charger
Equipped with ICC loaded with MTO2 font
GPS enabled
Equipped with a directional compass module
8.28 Software
Plastic Fenders
Couldn't load pickup availability
Features
- Extra-large display
- Low power consumption
- Independent solar panel array
- 360° tower rotation for optimal positioning
- Durable powder-coated and oven-baked finish
Setup
- Under 4,000 lbs, can be towed by most trucks and SUVs
- Hydraulic surge brake with lunette ring for 3-inch (7.6cm) pintle hook
- A hydraulic lift raises the message sign, allowing one person to easily raise and lower the message board
- Tower rotates 360 degrees for optimal positioning
- Single disc brake holds board in place during operation, while a cradle supports and holds board in travel position
Operation
- Full-matrix display for text and graphics
- Large 56×30-pixel display is MTO approved
- Onboard controller, no laptop required
- Full-color touchscreen controller with high-resolution display
- Three levels of password protection
- Store up to 150 changeable messages
- Easy integration with other software
- English and French language packs
- Large selection of fonts with individual character sizing
- Cooling fans protect sign cabinet from overheating
Power System
- Silent operation
- Solar panels charge batteries automatically without intervention
- Solar array tilts and rotates for optimal positioning
- Charging system shuts down when batteries are fully charged, preventing damage
- Unique system allows battery charging with solar panels or commercial power
- Cooling fan protects battery charger from overheating
- Battery box can be locked to prevent unauthorized access
- Choose from a variety of solar and battery power options
Maintenance
- Individual display modules can be replaced easily
- Standard 15-inch trailer tires
- Heavy-duty bolt-on fenders can be replaced if damaged
- Durable powder-coat finish resists the elements
Standards Compliance
- NTCIP compliant
- MTO compliant
.
| SPECIFICATIONS | |
|---|---|
| WEIGHT | |
| Weight | Approx. 1000 lbs. (453kg) |
| CONSTRUCTION | |
| Trailer | All welded structural steel |
| Arrow board | Aluminum sheet and welded channels |
| Coating | Powder-coated and oven-baked |
| Axle assembly | 2000 lb. (907kg) capacity with 5-on-5.5 inch B.C. idler hub 60-inch wheel track Double eye leaf springs |
| Tires | ST205/75D15 trailer tires |
| STANDARDS COMPLIANCE | |
| Compliance | MTO approved |
| POWER | |
| Batteries | Leak and spill-proof valve-regulated lead acid (VRLA) |
| Battery voltage | 12 Vdc |
| Battery capacity | 48 Ah total |
| Number of batteries | Two |
| Solar charging | One solar panel |
| Solar panel regulation | 50 W |
