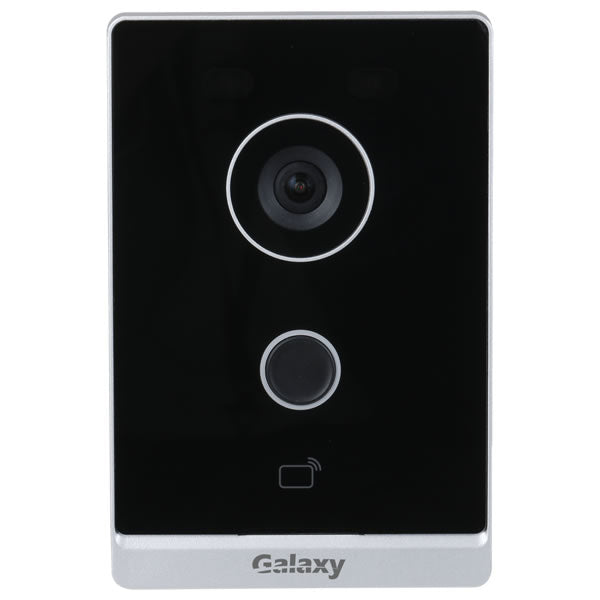

Galaxy Hunter IP Villa Wi-Fi Door Station
Galaxy Hunter IP Villa Wi-Fi Door Station
Model: GX-VTO2211G-WP
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
2MP, 120dB WDR, H.264, Auto IR, Day & Night (ICR), Built-in Speaker, Support up to 10,000 IC Cards, Card/App/Indoor monitor unlock, Tamper Alarm, Support 2 Locks, IP65, DC12V/PoE
Couldn't load pickup availability
- Thin lightweight design
- –30 °C to + 60 °C (–22 °F to +140 °F) operating temperature
- IP65 (Silicone sealant is need. For details, see the quick start guide.)
- IR illumination and night vision
- Card unlock, app unlock, and indoor monitor unlock
- Two-way audio and voice call through app
- Card capacity: 10,000
- Tamper alarm
- Standard PoE
- Control two locks
- Supports wireless network
|
Technical Specification |
|
Audio Input |
1 |
||
|
System |
Audio Output |
Built-in speaker |
|||
|
Main Processor |
Embedded processor |
|
Audio Mode |
Two-way audio |
|
|
Operating System |
Embedded Linux operating system |
Audio Enhancement |
Echo suppression and cancellation/digital noise reduction |
||
|
Button Type |
Mechanical |
||||
|
Audio Bit Rate |
16 kHz, 16 bit |
||||
|
Interoperability |
ONVIF |
||||
|
Function |
|||||
|
Network Protocol |
SIP; P2P; IPv4; DNS; RTSP; RTP; TCP; UDP |
||||
|
|
Communication Mode |
Full digital |
|||
|
Basic |
|||||
|
Unlock Mode |
Card/app/indoor monitor unlock |
||||
|
Camera |
1/2.8'' 2MP CMOS high definition, low illumination/ WDR/color/IR |
|
|||
|
Card Type |
IC card |
||||
|
Auto Snapshot |
Auto snapshot can only be enabled on indoor monitors |
||||
|
Field of View |
Horizontal: 125°; vertical: 72°; diagonal: 142° |
||||
|
Leave Videos |
Yes (Insert an SD card into the indoor monitor) |
||||
|
WDR |
120 dB |
||||
|
Wi-Fi |
Yes |
||||
|
Noise Reduction |
3D noise reduction |
||||
|
Wireless Standard |
IEEE802.11b/802.11g/802.11n |
||||
|
Video Compression |
H.264 |
||||
|
Wireless Frequency Range |
2.4GHz |
||||
|
Video Resolution |
Main stream: WVGA, 720P, D1 Sub stream: CIF, WVGA, QVGA, 1080P, D1 |
||||
|
Web Configuration |
Yes |
||||
|
Video Frame Rate |
PAL:25 fps NTSC:30 fps |
||||
|
Performance |
|||||
|
Video Bit Rate |
265 kbps4 Mbps |
||||
|
|
Card Reading Distance |
3 cm5 cm (1.18"1.97") |
|||
|
Light Compensation |
Auto IR |
||||
|
Casing |
PC+Acrylic |
||||
|
Day/Night |
ICR auto switch |
||||
|
Capacity |
|||||
|
Audio Compression |
G.711Mu; G.711u; PCM |
||||
|
|
Card |
10,000 |
|||
|
|
|||||
|
Port |
|
|
RS-485 |
1 |
|
Electric Lock |
1 |
|
Alarm Input |
1 |
|
Alarm Output |
1 |
|
Power Output |
1 |
|
Exit Button |
1 |
|
Door Status Detection |
1 |
|
Lock Control |
1, normally closed by default |
|
Network |
1 × 10 Mbps/100 Mbps network port |
|
Storage |
Micro SD Card, Max 64 GB (reserved for software) |
|
Alarm |
|
|
Tamper |
Yes |
|
General |
|
|
Color |
Black plate & silvery frames |
|
Power Supply |
12 VDC, 1 A Standard PoE |
|
Installation |
Surface mount |
|
Certifications |
CE/FCC/UL |
|
Accessory |
Brackets and alarm ribbon cable |
|
Dimensions |
150 mm × 100 mm × 24.8 mm (5.91'' × 3.94'' × 0.98'') |
|
Protection Grade |
IP65 (Silicone sealant is needed, see the quick start guide.) |
|
Operating Temperature |
30 °C to + 60 °C (22 °F to +140 °F) |
|
Operating Humidity |
10%RH90%RH (non-condensing) |
|
Operating Environment |
Outdoor |
|
Operating Altitude |
Beneath 3000 m (9842.51 ft) |
|
Power Consumption |
Standby</=1 W, working</=7 W |
|
Gross Weight |
490 g (1.08 lb) |
