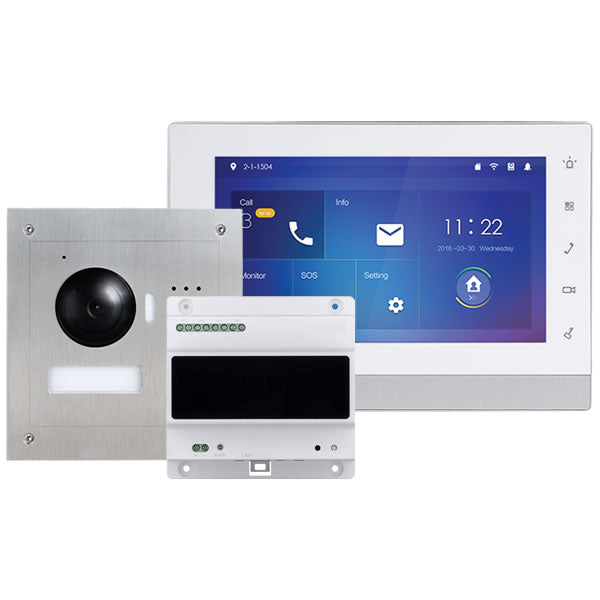

Galaxy Hunter Series 2-wire IP intercom KIT
Galaxy Hunter Series 2-wire IP intercom KIT
Model: GX-VTHO3550-2S
Regular price
$680.05
Sale price
$680.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
HD camera, 7" touch screen, 800×480, IPC support (VTNC3000A needed), Alarm integration, 2-Door, Mobile APP
Couldn't load pickup availability
- HD CMOS camera
- 7-inch capacitive touch screen, resolution 800×480
- IPC surveillance (VTNC3000A needed)
- Alarm integration
- 2-Door control
- Remote intercom with mobile APP (VTNC3000A needed)
| Video Outdoor Station | |
| Model | VTO2000A-2 |
| System | |
| Main Processor | Embedded Micro Processor |
| Operation System | Embedded LINUX OS |
| Video | |
| Video Compression | H.264 |
| Image Sensor | 1/3 1.3MP CMOS |
| Lens | 2.8mm |
| Angle of View | D:120° H:90° |
| Day/Night | Color Image |
| Audio | |
| Audio Compression | G.711 |
| Audio Input | Omnidirectional Mic |
| Audio Output | Built-in Speaker |
| Bidirectional Talk | Support Dual-way Bidirectional talk |
| Operation Mode | |
| Keypad | Single Mechanical Button |
| Interface | |
| Door Control | 2(1 relay out for main lock, 1 extended by access control module) |
| Alarm In | 2(1ch unlock button, 1ch feedback) |
| RS485 | 1 |
| Network | |
| Ethernet | 10M/100Mbps Self-adaptive |
| Network Protocol | TCP/IP |
| General | |
| Ingress Protection | IP54,IK07 |
| Tamper Switch | 1 |
| Installation | Surface & Flush |
| Material | Stainless steel |
| Power | DC 24V or supply directly by VTNC3000A |
| Power Consumption | Standby ?1W, Work ?10W |
| Working Temperature | ?40°C~+60°C |
| Relative Humidity | 10%~90%RH |
| Dimensions | 129.9mm×32.2mm×140mm |
| Weight | 0.8Kg |
| Video Indoor Monitor | |
| Model | VTH1550CHW-2 |
| System | |
| Main Processor | Embedded Micro Process |
| Operation System | Embedded LINUX OS |
| Video | |
| Video Compression | H.264 |
| Audio | |
| Audio Compression | G.711 |
| Audio Input | All-direction Microphone |
| Audio Output | Built-in Loudspeaker |
| Bidirectional Talk | Support Dual-way Bidirectional talk |
| Display | |
| LCD Screen | 7 800x480, Capacitive |
| Operation Mode | |
| Input | Touch buttons |
| Interface | |
| Alarm In | 6 |
| Alarm Out | 1 |
| RS485 | 1 |
| Network | |
| Ethernet | 10M/100Mbps Self-adaptive |
| Network Protocol | TCP/IP |
| General | |
| Memory Slot | Micro SD, Max 32G |
| Installation | Surface |
| Power | DC 24V or supply directly by VTNC3000A |
| Power Consumption | Standby ?1.5W,work?7W |
| Working Temperature | -10°C~+55°C |
| Relative Humidity | 10%~90%RH |
| Dimensions | 200.5mm×136.5mm×22.0mm |
| Weight | 0.8Kg |
| 2-Wire Network Controller | |
| Model | VTNC3000A |
| General | |
| Voltage | DC24V |
| Power Consumption | Max consumption:30W(4-CH output full load) |
| Working Temperature | -10°C~+55°C |
| Dimensions | 108mm×108mm×64mm |
| Weight | 0.5Kg |
