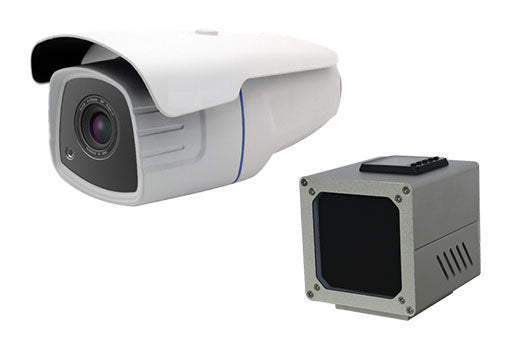

Bi-spectral Infrared Body Temperature Fast Screening Instrument
Bi-spectral Infrared Body Temperature Fast Screening Instrument
Model: GX-USS-TIC500
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Couldn't load pickup availability
Thermal imaging function:
Resolution 384 × 288, high sensitivity detector
Highest temperature cross cursor positioning
Supports point, line, rectangle, and irregular area temperature measurement modes
Support human body temperature abnormal alarm function
Support automatic capture of moving face targets
Support wearing a mask to identify the face area to avoid false alarms from non-face high temperature objects
Visible light phase function:
500W high-definition visible light detector
Supports automatic exposure control and automatic white balance
Supports face temperature measurement mode, intelligently analyzes face targets and measures body temperature, supports multiple alarm linkages
Dual light temperature measurement linkage, can draw regular and superimposed temperature measurement information on visible light image
Thermal Camera Sensor type Uncooled detector Sensor pixels 384 × 288 Response band 7.5 ~ 14?m Pixel pitch 17?m Optical Transmission Calibration Manual / Automatic NETD (Noise Equivalent Temperature Difference) <50mk (@ 25 ° C, F # = 1.0) Lens focal length 6.5mm Field of View 50.8 ° × 37.1 ° Image frame rate 16fps Palette Hot white, black hot, iron red, etc. Image and Video Thermal Image / Video / Visible Light Picture .jpg (including full temperature data) / Full Temperature Infrared Video / .jpg Visible Light Picture Visible light camera parameters Focal length 2.7mm Sensor pixels 5 million pixels Temperature measurement function Temperature measurement range 28 ° C-~42 ° C Temperature measurement deviation ± 0.3 ° C (with black body) Temperature measurement area setting Support global highest temperature, lowest temperature, average temperature tracking, point, line, rectangle, irregular area temperature measurement mode Over temperature alarm function Support human body temperature abnormal alarm function, area alarm text, temperature measurement box color can be set, alarm voice prompt Intelligent features Support automatic capture of moving face targets Face area recognition Support wearing a mask to identify the face area to avoid false alarms from non-face high temperature objects General specifications Power input DC12V Power 5W (MAX) Size (mm) 232mmx120mm × 96mm Weight ?1Kg Protection class IP65 Working temperature and humidity -10 ° C ? + 30 ° C, <90% RH Other Item List 1*Bullet thermal camera, 1*Black body , 2*Tripod, Client Software PC requirement Windows 10 64 bit, I5, 8GB RAM, NVIDIA Discrete graphics 2G
