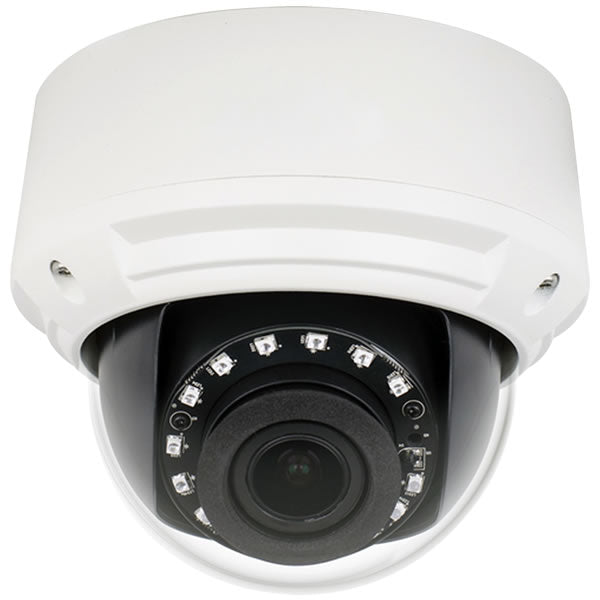

Galaxy 4MP Motorized 4in1 HD IR Dome 2.8mm~12mm Lens
Galaxy 4MP Motorized 4in1 HD IR Dome 2.8mm~12mm Lens
Model: GX-SMT-XHD784F-IZ
Available in stock
Galaxy 4MP Motorized 4in1 HD IR Dome 2.8mm~12mm Lens/ IR Up To 40m (131ft) / 2560 X 1440 Picture Quality / 24 IR LEDs / 3-Axis Gimbal / AHD + TVI + CVI + 960H Output / True Day Night / OSD Menu / IP 67 /IK10 / 12V DC
Couldn't load pickup availability
·2.8-12 mm motorized lens
·IR up to 40M (131ft)
·2560 X 1440 Picture Quality
·24 IR LEDs
·3-axis Gimbal
·AHD + CV I + TVI + 960H Output
·True Day Night
·OSD Menu
·12V DC
| Image Sensor | 1/2.7 Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. illumination | Color:0.05Lux@(F1.2,AGC ON) B/W:0.01 Lux@(IR LED ON) |
| S/N Ratio | 50dB |
| Day & Night | ICR |
| Shutter Speed | PAL:1/50-1/50000, NTSC:1/30-1/10000 |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 2D |
| Lens | Motorized 2.8-12mm |
| FOV | H: 110°~38.3°, V: 58°~21.4 |
| IR LED | 15pcs |
| IR Wavelength | 850nm |
| IR Range | 40m |
| OSD Joystick | Support |
| Up the Coax | Support |
| IMAGE | |
| Effective Resolution | 2560x1440 |
| Frame | PAL:25fps ,NTSC:30fps |
| VIDEO OUTPUT | |
| Max Distance | 75-5, 300m |
| Video Output | AHD/TVI/CVI/CVBS |
| GENERAL | |
| Power Supply | DC12V±10% |
| Power Consumption | 4.5W(Max) |
| Operating Temperature | -10 °C ~ 55 °C (14°F ~ 131 °F) |
| Operating Humidity | 0% - 85% RH |
| Ingress Protection | IP67 |
| Material | Aluminum Alloy |
| Product Dimensions | 1 0*112mm |
| Product Weight | 667g |
