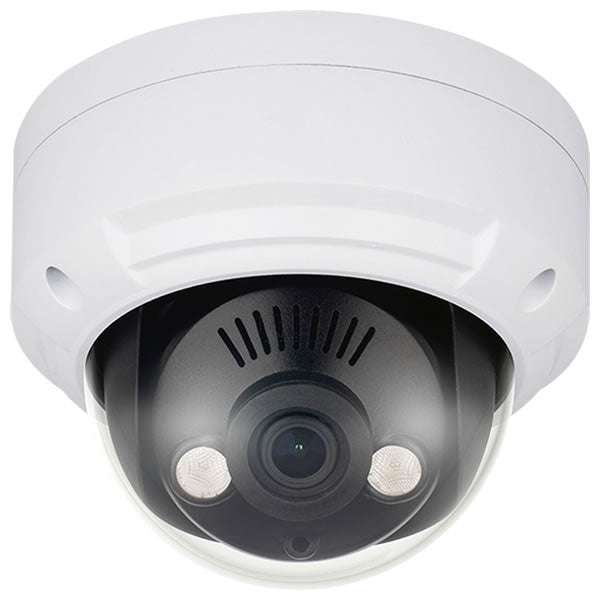

Galaxy 4MP 4in1 HD IR Dome 2.8mm Lens
Galaxy 4MP 4in1 HD IR Dome 2.8mm Lens
Model: GX-SMT-XHD744F-28
Regular price
$71.05
Sale price
$71.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Galaxy 4MP 4in1 HD IR Dome 2.8mm Lens / IR Up To 20 Meters (66 Ft) / 2560 X 1440 Picture Quality / 2 IR LEDs / 3-Axis Gimbal / AHD + TVI + CVI + 960H Output / Ture Day Night / OSD Menu / IP 67 /IK 10 / 12V DC / Junction Box Optional: DS-1280ZJ-DM18
Couldn't load pickup availability
·IR up to 20M (66ft)
·2560 X 1440 Picture Quality
·2 IR LEDs
·3-Axis Gimbal
·AHD + TVI + CVI + 960H Output
·Ture Day Night
·OSD Menu
·IP 67/IK 10
·12V DC
·2 Years Warranty
| Image Sensor | 1/2.7 Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. illumination | Color:0.05Lux@(F1.2,AGC ON) B/W:0.01 Lux@(IR LED ON) |
| S/N Ratio | 50dB |
| Day & Night | ICR |
| Shutter Speed | PAL:1/50-1/50000, NTSC:1/30-1/10000 |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 2D |
| Lens | 2.8mm |
| FOV | 90° |
| IR LED | 2pcs |
| IR Wavelength | 850nm |
| IR Range | 20m |
| OSD Joystick | Support |
| Up the Coax | Support |
| IMAGE | |
| Effective Resolution | 2560x1440 |
| Frame | PAL:25fps ,NTSC:30fps |
| VIDEO OUTPUT | |
| Max Distance | 75-5, 300m |
| Video Output | AHD/TVI/CVI/CVBS |
| GENERAL | |
| Power Supply | DC12V±10% |
| Power Consumption | 3.5W(Max |
| Operating Temperature | -10 °C ~ 55 °C (14°F ~ 131 °F) |
| Operating Humidity | 0% - 85% RH |
| Ingress Protection | IP67/IK10 |
| Material | Aluminum Alloy |
| Product Dimensions | 110*85mm |
| Product Weight | 390g |
