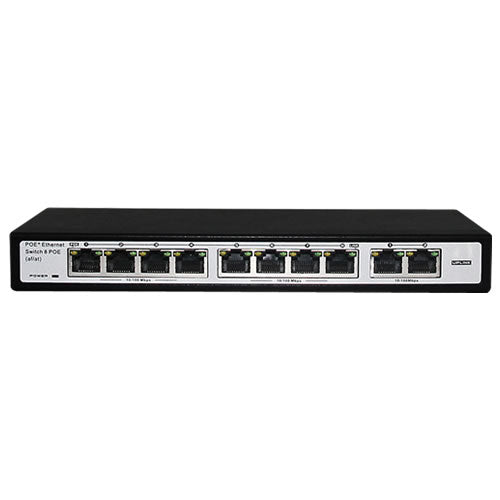

8-Port 10/100Mbps IEEE 802.3af/802.3at PoE Switch, extra 2 uplink
8-Port 10/100Mbps IEEE 802.3af/802.3at PoE Switch, extra 2 uplink
Model: GX-POE-S1008EP-2G
Available in stock
Send a copy to email:
Open here
8-port 10/100Mbps IEEE 802.3af/802.3at PoE Switch, extra two port 10/100/1000Mbps uplink RJ-45, external 120W USA power adaptor included/ 250m Long Range PoE & Data
Couldn't load pickup availability
- Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at standards
- Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
- 8-Port support 48V-56VDC power to PoE powered devices
- Provide 15.4W or 30W power to powered devices
- 120-watts PoE budget
- External 53VDC/2.5A power adapter included
- Extra 2-Port 10/100/1000Mbps UPLINK RJ-45
- PoE data & power transmission distance up to 100meters
- Port based VLAN for Enhancing Security
- Transmission distance up to 250meters while VLAN indicator turns on
- Backplane Bandwidth:5.6Gbps
- Restart function helps master IC reset wholly
- Excellent anti-thunder, anti-static and anti-interference ability
- Surge Protection: 6KV
- Easy and convenient to use, plug & play, no need to configure
- Galvanized housing for stable and durable working life
Power Supply |
Power Supply Mode |
Power Adaptor |
Voltage Range |
DC48~56V |
|
Power Consumption |
The device <5W PoE power supply?120W |
|
Network Port Parameter |
Network Port |
Ethernet Downlink RJ-45 Port: 8*10/100Mbps Uplink RJ-45 Port: 2*10/100/1000Mbps |
Transmission Distance |
1~8 Ethernet Downlink RJ-45 Port: 100m Mandatory 10 Mbps reach up to 250m Uplink RJ-45 Port: 100m |
|
Transmission Medium |
1~8 Ethernet Downlink RJ-45 Port: Cat5e/6 standard cable Uplink RJ-45 Port: Cat5e/6 standard cable |
|
PoE Standards |
IEEE802.3af/at |
|
PoE Power Supply Mode |
End-span method |
|
PoE Power Supply Wattage |
Each port ?30W Whole device?120W |
|
Network Switch Specification |
Network Standards |
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3az |
Swap Mode |
Store-and- forward |
|
Data-Caching Mechanism |
1M |
|
MAC Address List |
4K |
|
Backplane Bandwidth |
5.6Gbps |
|
Forwarding Capacity |
4.16Mpps |
|
|
Indicator/Button
|
Power Indicator |
Red LED on: power on |
Fast Ethernet Uplink Port |
Green LED on: link up, off: link down, blinks: data transferring Yellow LED on: link speed is 1000Mbps, off: link speed is 10/100Mbps |
|
PoE Indicator |
8 PoE indicators (Yellow) |
|
PoE Network Port Indicator |
1~8 port indicators blink while data transferring |
|
Reset Button |
Press the reset button to turn on indicator (green) and the device restarts. |
|
VLAN Button |
Turn on VLAN button: indicator on and VLAN function restarts Turn off VLAN button: indicator off and VLAN function stops |
|
Protection Level |
Surge Protection |
6KV (common mode),10/700us IEC61000-4-5 2KV (differential mode),10/700us IEC610000-4-5 |
Electrostatic Protection |
Contact Discharge: ±4KV Air Discharge: ±6KV Standard: IEC61000-4-2 |
|
Reliability |
Mean time between failures (MTBF) |
?50000h |
Mechanical |
