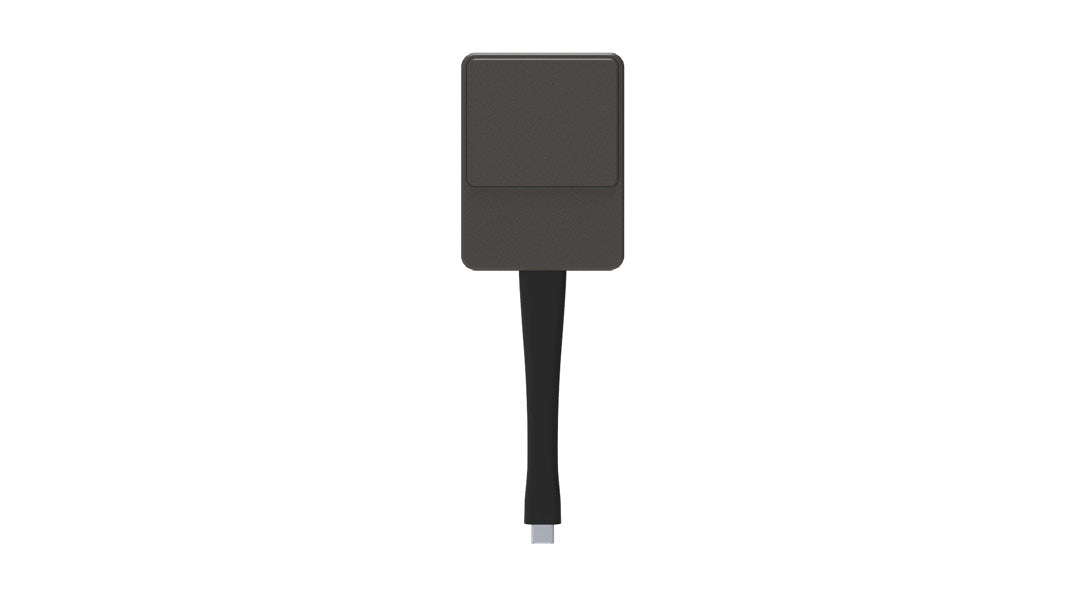

Wireless Screen Sharing Dongle
Wireless Screen Sharing Dongle
Model: GX-PKP-WP1B
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Easy to use, the wireless transmitter is plug and play, and does not
require any software or drivers to be installed. It projects a crisp image
with just the press of a button, eliminating the need to perform
time-consuming configurations. Simply pair, plug it in and hit the button
to seamlessly transmit audio and videos to other devices.
Couldn't load pickup availability
- No need to install software or drivers.
- Hassle free, there is no need to install cables.
- Performs projection with just the press of a button.
- Displays in 4K delivering a crisp image.
- Easy to use, it wirelessly transmits videos and audio to other devices,making it ideal for meetings.
- Supports Chrome, iPads and mainstream operating systems such asWindows, macOS, Linux and Android.
Technical Specifcation
Hardware Parameters
|
Input Resolution |
480p, 576p, 720p, 1080p, 4K PC timing: 640 × 480, 800 × 600, 1024 × 768, 1280 × 720, 1920 × 1080, 3840 × 2160 |
|
Output Resolution |
720 × 480, 720 × 576, 1280 × 720, 1920 × 1080 (1080p), 3840 × 2160 |
|
Interface |
Full featured Type-C |
|
Input voltage |
5 VDC (Type-C power supply) |
|
Power consumption |
2.5 W (Average) |
|
Current Consumption |
0.9 A (Max.) |
System config
|
Operating system |
Windows® 7, Windows 8.1, Windows 10 or Windows 11, macOS, Chrome OS, Linux OS, Android OS. Any OS supports full featured Type-C |
|
Encryption |
CCMP |
|
Authentication protocol |
WPA2 (WPA2-PSK (Pre-Shared key) / WPA2- Enterprise) |
|
Wireless transmission protocol |
IEEE 802.11 a/g/n |
|
Wireless data rate |
54 Mbps |
|
Frame Rate |
Up to 60 fps depending on environment (FHD) |
|
Touch control back |
Support 10 points |
Structure
|
Net weight |
80 g (0.18 lb) |
|
Dimensions |
176 mm × 58 mm × 17 mm (6.93" × 2.28" × 0.67") |
|
LED |
Blue, Green, Red |
Environment Requirements
|
Operating temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
|
Storage Temperature |
20 °C to +60 °C (4 °F to +140 °F) |
|
Operating humidity |
0%80% (RH) (non-condensing) |
|
Transmission distance |
The distance between wireless projectors and the host is up to 15 m (49.21 ft) |
|
Frequency band |
2.4 GHz and 5 GHz (recommended) |
