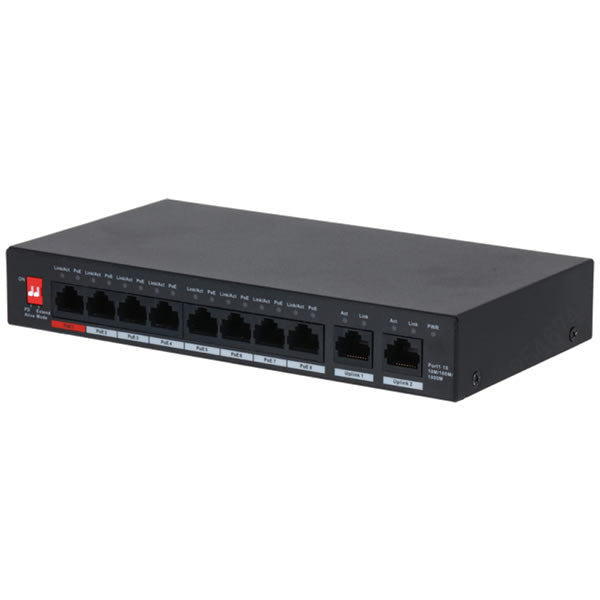

Galaxy 8 Port All Gigabit Unmanaged Poe 2.0 Switch
Galaxy 8 Port All Gigabit Unmanaged Poe 2.0 Switch
Model: GX-PFS3010-8GT-96
Available in stock
Send a copy to email:
Open here
High Poe 96w / Port 1–8: 8 × Rj-4510/100/1000 Mbps (poe) / Port 9-10: 2 × Rj-45 10/100/1000 Mbps (uplink) / 250 Meters Long Distance Poe / Poe Watchdog / Esd Protection, Thunder Proof / Operating Tempe
Couldn't load pickup availability
- Intelligent PoE for Power Consumption Management
- Long-distance PoE Transmission Distance, up to 250.0 m (820.21 ft)
- PoE Watchdog Function Monitors Network
- High-capacity Data Cache (4-megabit) for Real-time Transmission with smooth video
- Supports IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt Standards
|
Technical Specification |
|
|
Ethernet Ports |
Ports 1 through 8: 10/100/1000 Mbps, RJ45 Ports 9 and 10: 10/100/1000 Mbps (uplink), RJ45 |
|
PoE Power Consumption |
Port 1: </= 90 W (IEEE802.3bt or Hi-PoE) Ports 2 through 8: </= 30 W (IEEE802.3at) Total Power Consumption: </= 96 W |
|
PoE Protocol |
PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE, PoE++ (IEEE802.3bt) |
|
PoE PIN Assignment |
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-); |
|
PoE Transmission Distance² |
250.0 m (820.21 ft) |
|
Switching Capacity |
20 Gbps |
|
Packet Forwarding Rate |
14.88 Mpps |
|
Packet Buffer Memory |
1.5 Mbs |
|
MAC Table Size |
4K |
|
Standards Compliance |
IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab |
|
Power Input |
48 VDC to 57 VDC |
|
Power Consumption |
Idle: 3 W PoE Full Load: 96 W |
|
Operating Temperature |
10° C to 55° C (14° F to 131° F) |
|
Operating Humidity |
5% to 95%, Relative |
|
Electrostatic Discharge |
Air Discharge: 8 kV Contact Discharge: 6 kV |
|
Surge Protection |
Common Mode: 4 kV Differential Mode: 2 KV |
|
Dimensions (L x W x H) |
190.0 mm x 100.30 mm x 30.0 mm (7.48 in. x 3.95 in. x 1.18 in.) |
|
Net Weight |
0.50 kg (1.10 lb) |
|
Gross Weight |
1.32 kg (2.91 lb) |
|
Safety |
EN 62368-1:2014 |
|
Electromagnetic Compatibility (EMC) |
CFR 47 FCC Part 15 subpart B EN 55032:2015+A11:2020; EN 55024:2010+A1:2015; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 50130-4:2011+A1:2014 |
