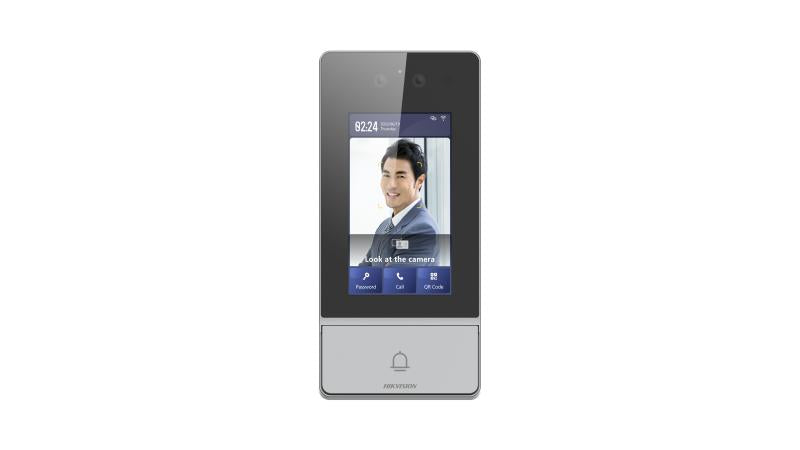

Hikvision OEM Metal Vandal-resistant Facial Recognition IP Villa Door Station
Hikvision OEM Metal Vandal-resistant Facial Recognition IP Villa Door Station
Model: GX-KV9503-WBE1
Available in stock
Send a copy to email:
Open here
Couldn't load pickup availability
- 4.3-inch colorful LCD screen with 800 × 480 resolution
- 2 × 2 MP camera with IR supplement
- One-touch physical button for easier calls
- Standard PoE power supply
- IK08 & IP65 higher protection level
- Multiple authentication methods: Face, Pin code, Card, QR code, Bluetooth
- Call directly to Hik-Connect APP without indoor station
|
System parameters |
|
|
Operation system |
Linux |
|
ROM |
4 GB |
|
RAM |
1 GB |
|
Processor |
Embeded high performance processor |
|
Display parameters |
|
|
Screen size |
4.3-inch |
|
Operation method |
Capacitive touch screen |
|
Type |
IPS |
|
Resolution |
800 × 480 |
|
Luminance |
425 cd/m² |
|
Video parameters |
|
|
Lens |
2 |
|
Resolution |
2 × 2 MP |
|
FOV |
Horizontal: 88°, Vertical: 44° |
|
Wide dynamic range (WDR) |
Support 120 dB |
|
Supplement light |
IR light, up to 3 m |
|
Video compression standard |
Main stream and sub stream: H.264 Third stream: H.265 |
|
Audio parameters |
|
|
Audio input |
1 built-in omnidirectional microphone |
|
Audio compression standard |
G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
|
Audio output |
1 built-in loudspeaker |
|
Audio compression bitrate |
G.711u、G.711a、Opus：64kbps；G.722.1、G.726：32kbps；AAC-LD、AAC-LC：16kbps |
|
Audio quality |
Noise suppression and echo cancellation |
|
Volume adjustment |
Adjustable |
|
Capacity |
|
|
User capacity |
20000 |
|
Face capacity |
10000 |
|
Fingerprint capacity |
/ |
|
Card capacity |
100000 |
|
Message capacity |
/ |
|
Linked indoor station capacity |
500 |
|
Sub door station capacity |
16 |
|
Network parameters |
|
|
Network protocol |
TCP/IP, RTSP |
|
Wi-Fi |
IEEE802.11b, IEEE802.11g, IEEE802.11n |
|
Bluetooth |
Support：2.0 |
|
3G/4G |
/ |
|
Authentication |
|
|
Card reading frequency |
13.56 MHz |
|
Face recognition distance |
0.3 to 2 m |
|
Face recognition accuracy rate |
≥ 99% |
|
Face recognition duration |
＜ 0.2 s per person |
|
Device interfaces |
|
|
Alarm input |
4 (2 exit butttons and 2 door contacts by default) |
|
Network interface |
1 RJ-45, 10/100 Mbps self-adaptive |
|
TAMPER |
1 |
|
Exit button |
2 |
|
RS-485 |
1 |
|
USB |
/ |
|
Wiegand |
/ |
|
TF card |
Reserved |
|
Lock control |
2 relays, Max. 30 VDC 2 A, lock 2 needs secure module |
|
Door contact input |
2 |
|
General |
|
|
Button |
1 physical button |
|
Installation |
Surface mounting |
|
Indicator |
/ |
|
Weight |
Net weight: 0.405 kg Gross weight: 0.752 kg |
|
Protective level |
IP65, IK08 |
|
Working temperature |
-40 °C to 60 °C (-40 °F to 140 °F) |
|
Working humidity |
10% to 90% (no-condensing) |
|
Dimension (W × H × D) |
182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01") |
|
Battery |
/ |
|
Power supply |
12 VDC, 1.5 A,IEEE802.3af, Standard PoE |
|
Application environment |
Outdoor |
|
Power consumption |
≤ 6 W |
|
Language |
English,French,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Viet namese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbia n,Greek |
