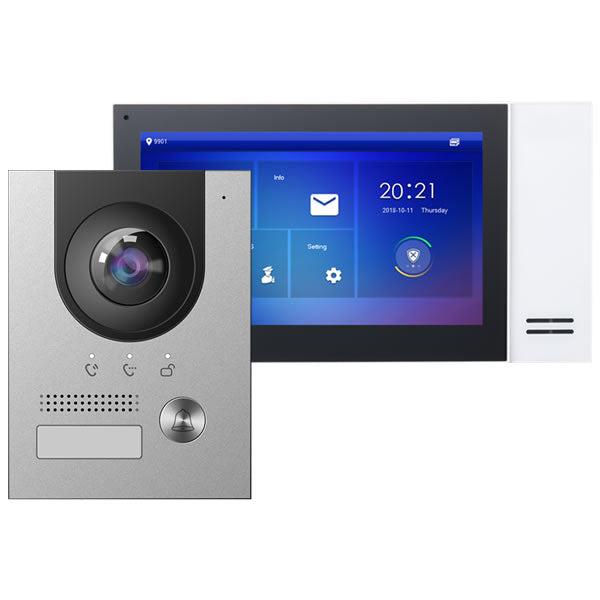

Galaxy Hunter Series IP Villa Kit
Galaxy Hunter Series IP Villa Kit
Model: GX-KTP01-S
Regular price
$685.85
Sale price
$685.85
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
2MP camera, 160° angle of view, Aluminum alloy plate, IP55, IK07, Surface mounted, Support standard PoE
Couldn't load pickup availability
- 2MP CMOS camera
- Mechanical button
- Night vision & voice indicator
- 160° angle of view
- Group call
- Aluminium alloy plate
- IP55&IK07
- Surface mounted
- Support standard PoE
- IPC surveillance
- Alarm integration
- High performance
- Embeded 8GB SD card
- Support standard PoE
| Technical Speci?cation | |
| Model | VTO2202F-P |
| System Parameter | |
| Host Processor | Embeded processor |
| Camera | CMOS Low Illumination 2MP HD Colorful |
| Angle of View | H:160° |
| Focal Length | 2 mm |
| WDR | Support |
| Noise Reduction | Noise suppression and echo cancellation |
| Video Encoding | H.264 |
| Frame Rate | PAL:25 fps NTSC:30 fps |
| Audio Encoding | G.711 U |
| Video Bit Rate | 256 K to 2 M |
| Light Compensation | IR Supplement |
| Port | |
| RS-485 Port | 1 |
| Alarm Output/Input | 1/1 |
| Lock Control | 1 set |
| Door Status Detection | 1 set |
| Eoc | 1 set |
| Exit Button | 1 |
| Tamper Switch | 1 set |
| Network Interface | 1 |
| Power Output | 12V/100mA |
| Alarm Parameter | |
| Tamper Alarm | Support |
| Door Sensor Timeout Alarm | Support |
| Alarm Iutput | Support |
| Alarm Output | Support |
| User Parameter | |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Status Indicator | Calling&Communication&Unlocked |
| Communication Methods | Digital communication |
| Unlock Mode | Remote unlocking |
| Auto Snapshot | Support |
| Leave Videos or Text Messages | Support |
| Storage | Extended 64 G TF Card |
| WEB Configuration | Support |
| Real-time Monitor | Support |
| Normal Parameter | |
| Housing Material | Alumimum |
| Power Supply Mode | POE or DC 12V |
| Installation Method | Supports surface mounted |
| Dimensions | 130 mm×96 mm×28.5 mm (5.1"×3.78"×1.1") |
| Working Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Consumption | ?12W |
| Total Weight | 0.35kg/0.77lb |
| Technical Speci?cation | |
| Model | VTH2421FW-P |
| Main Processor | High performace embedded processor |
| Operating System | Embedded LINUX OS |
| Screen Type | Capacitive screen |
| Display | 7-inch TFT screen |
| Resolution | 1024 × 600 |
| Video Compression | H.264 |
| Audio Compression | G.711A/G.711U/PCM |
| Audio Input | 1 channel all-direction microphone |
| Audio Output | Built-in 1.5W loudspeaker |
| Audio Mode | Support dual-way bidirectional talk |
| Audio Enhancement | Support echo cancellation/DNR |
| Audio Bit Rate | 16 kbps |
| Communication Mode | Full digital |
| Information Release | Support to receive and view notifications issued by center |
| Leave Videos or Text Messages | Support |
| DND Mode | Support to set DND period |
| Sub-station Quantity | 9 |
| Alarm Input | 6 channel (switch quantity) |
| Alarm Output | 1 channel |
| Network | 1 RJ-45 |
| SOS Alarm | Support |
| Casing | PC+ABS |
| Appearance Color | Appearance Color |
| Power Supply | Power Supply |
| Installation | Wall mount |
| Accessories | Default bracket Default alarm cable |
| Dimensions | 119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × 0.85") |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10%RH-95%RH |
| Power Consumption | Standby?4W, work?6W |
| Gross Weight | 0.35 Kg (0.77 lb) |
| Power Supply Mode | PoE or DC 12V |
| Storage | Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G |
