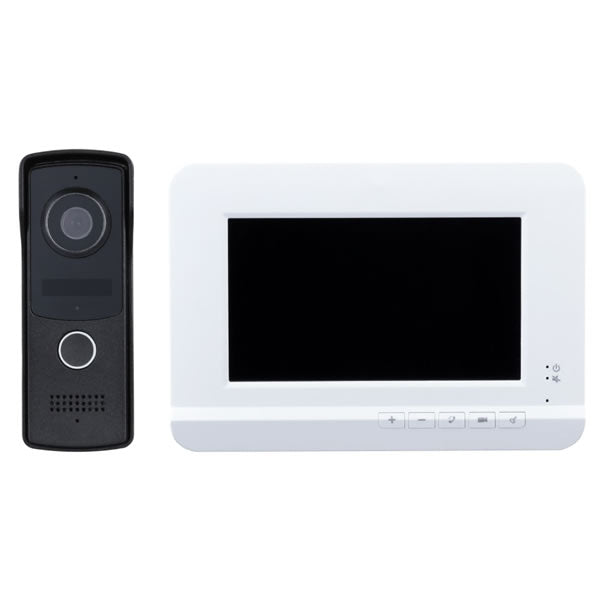

Galaxy Hunter Series 4-wire Analog indoor monitor KIT
Galaxy Hunter Series 4-wire Analog indoor monitor KIT
Model: GX-KTA01
Regular price
$187.05
Sale price
$187.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
7" Screen, Indoor monitor, function: Unlock, video call, volume adjustment, and doorway monitoring
Couldn't load pickup availability
- Screen dimension: 7 inch
- Indoor monitor function: Unlock, video call, volume adjustment, and doorway monitoring
- Quantity of outdoor station and indoor monitor: 2 outdoor station + 3 indoor monitor
- Applicable scenario: Villa
| VTO2010D | |
| Button Type | Mechanical keyboard keys |
| Camera | 2MP CMOS |
| Field of View | Horizontal: 70° Vertical: 40° |
| Focal Length | 3.3 mm |
| IR | Support |
| Audio In | 1 channel to the microphone, pickup distance 0.5m |
| Audio Out | 1 channel to the speaker |
| Indicator Light | 1 indicator light; Green: Power on |
| Communication Method | Analog |
| Unlock Mode | Local unlock |
| Exit Button | 1 |
| Appearance Color | Black |
| Installation Mode | Surface |
| Dimensions | 134.9 mm × 47.2 mm × 33.8 mm (5.31" × 1.86" × 1.33") |
| Protection Grade | IK07, IP65(Apply silica gel to gaps between the device and the wall.Liquid sodium silicate is recommended. For details, see the quick start guide.) |
| Operating Temperature | -30° C to +50° C (-22°F to +122°F) |
| Operating Humidity | 10%RH 95%RH |
| Power Consumption | ?1W (standby mode) ?3W (operating) |
| Net Weight | 0.19 kg (0.42 lb) |
| VTH2020DW | |
| Button Type | Mechanical keyboard keys |
| Screed Type | Non-touch screen |
| Display | 7 inch TFT display |
| Resolution | 800 (H) × 480 (V) |
| Status indicator Light | 2 indicator lights Power: Indicator light green-Power on Volume: Indicator light off-Mute |
| Communication Methods | Analog |
| Housing Material | PC+ABS |
| Appearance Color | White |
| Power Supply Mode | 12V DC 2A |
| Power Source | Optional |
| Installation Mode | Surface |
| Dimensions | 220.5 mm × 153.5 mm × 26.8 mm (8.68" × 6.04" × 1.06") |
| Operating Temperature | -10° C to +55° C (+14°F to +131°F) |
| Operating Humidity | 10%RH95%RH |
| Power Consumption | ?2W (standby mode) ?5W (operating) |
| Net weight | 0.39 kg (0.86 lb) |
