Keypad Standalone wall/flush/standard
Keypad Standalone wall/flush/standard
Model: GX-KP-100A
Regular price
$143.55
Sale price
$143.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here

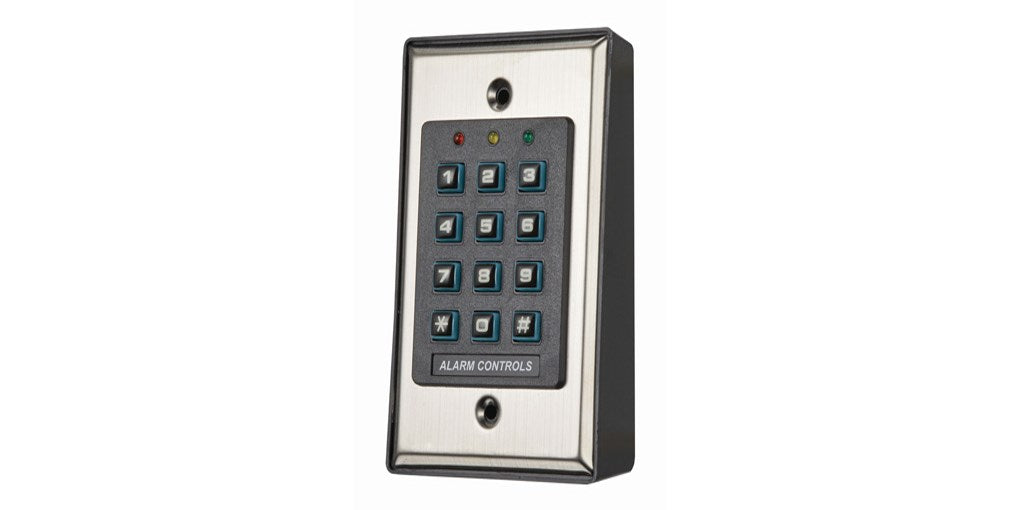

The KP-100A is a self-contained digital access control keypad that can be flush mounted on a single gang box or surface mounted on its plastic mounting box.
Couldn't load pickup availability
Standard Features
- Single gang or flush mount stainless steel plate
- 12-key illuminated 3x4 keypad
- True 10-digit operation (10 digits plus * and # keys)
- 1 - 1,000 user codes capability
- 1 - 50 visitor codes for temporary workers and visitors
- Easy programming from the keypad
- Built-in tamper switch with N.C. dry contact
- Passage mode and Lockout mode
- Configurable audible keystroke echo tone
- Red, green and yellow LEDs for status and programming feedback
- Fail safe or fail secure capable
- Easy to install with simple hand tools
- 5A SPDT timed, control relay (1) output
- Request to exit (REX) input
- For indoor applications only
- 3 year warranty
Accessories
- Comes standard with surface mount back box
Specifications
Dimensions
- Keypad: 2-3/4W X 4-1/2H X 5/32D
- Surface mount back box: 2-13/16W X 4-5/8H X 1-7/16D
Electrical
- Operating Voltage
- 12-24V AC/DC [+/- 10%]
- Operating Current
- 12VDC: 40mA at rest; 100mA active
- 24VDC: 70mA at rest; 50mA active
- Output Relay (1) Form C dry contacts
- 5A/30 VDC Max Fail Safe or Fail Secure
- REX Input N.O. dry contact
- 1mA/5VDC Max
- Tamper Switch N.C. dry contact
- 50mA/24VDC Max
Environmental
- Operating Temperature
- -4°F to +158°F [-20°C to +70°C]
- Humidity
- 5-95% relative humidity non-condensing
- Indoor use only
Shipping Weight
- 0.5lb [0.23kg]
