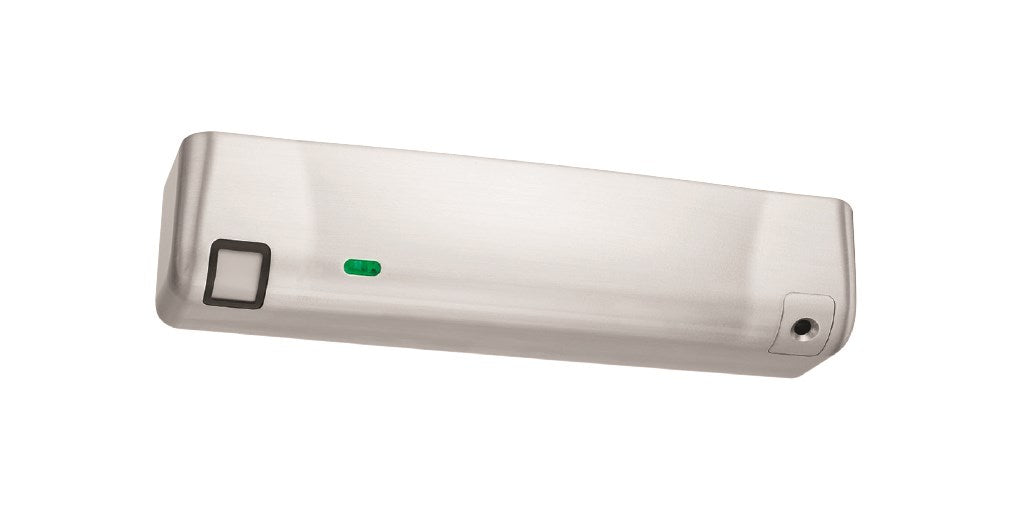

Securitron M680 Magnalock
Securitron M680 Magnalock
Model: GX-KM680EBDX
Regular price
$14,498.55
Sale price
$14,498.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
The M680E with EcoMag® technology from Securitron® delivers the same unsurpassed intelligence, style and convenience as the previous M680 series, but with 80% reduction in energy consumption.
Couldn't load pickup availability
- Strike plate mounting template provides the easiest install for out-swing doors
- LED Indicator shows the lock is secure, open, or has an incomplete bond
- Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
- Optional integrated BondSTAT and integrated Door Position Switch
- Autosensing dual voltage with microprocessor technology
- Adjustable automatic relock timer (0 to 30 seconds)
- Energy efficient, low power usage
- Size optimized for use with door closers
- MagnaCare® lifetime replacement, no fault warranty
- Holding Force: 1200 lbs [544kg]
- Dimensions:
- Magnalock: 11-1/2"L x 2-9/16"D x 2-1/2"
- Strike: 10-7/8"L x 9/16"D x 2"H
Electrical
| Maglock Average Power Draw | Maglock Maximum Power Draw |
| 113mA (±10%) at 12VDC | 515mA(±10%) at 12VDC |
| 52mA (±10%) at 24VDC | 290mA (±10%) at 24VDC |
| REX Power* | |
| +25mA (±10%) at 12VDC | |
| +10mA (±10%) at 24VDC | |
| *A separate continuous power input is required to power the REX | |
Operating Temperature
+32 to +110F [0 to +43C]
Indoor use only
