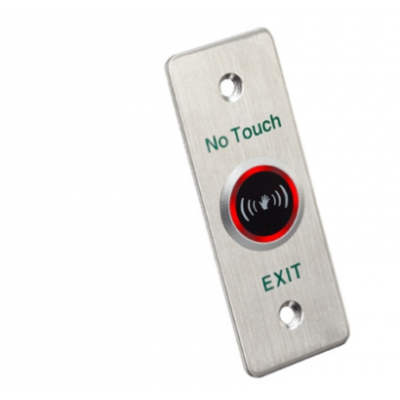

Touchless Exit Button
Touchless Exit Button
Model: GX-KB04
Regular price
$85.55
Sale price
$85.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Infrared sensor, Aluminum panel, Passed 1 million times aging test, NO/NC/COM contact, 1A@30V DC, 0.5A@125V AC
Couldn't load pickup availability
- Infrared sensor
- Aluminum panel
- Passed 1 million times aging test
- NO/NC/COM contact
- 1A@30V DC, 0.5A@125V AC
| Dimension (LxWxH) | 86x50x34mm(3.39x1.97x1.34") |
| Input Voltage | DC12V |
| Working Current | 20mA(standby), 50mA(working current) |
| Current Rating | 1A@30VDC,0.5A@125VAC |
| Output Contact | NO/NC/COM contact |
| Panel | aluminum panel |
| Aging Test | already passed 1 million times aging test; |
| Suitable Doors | all kinds of narrow doorframes |
| Working Temperature | -20°C to +50°C (-4°F to 122°F) |
| Working Humidity | 0 to 95% (relative humidity) |
| Maximum Inductive Distance | 40 to 100mm(1.57 to 3.94") (adjustable) |
| LED Indicator Status | white/green/red LED, indicates power-off/active/Standby |
| Product Weight | 0.15kg (0.33lb) |
