Model: GX-KB02
Regular price
$42.05
Sale price
$42.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here

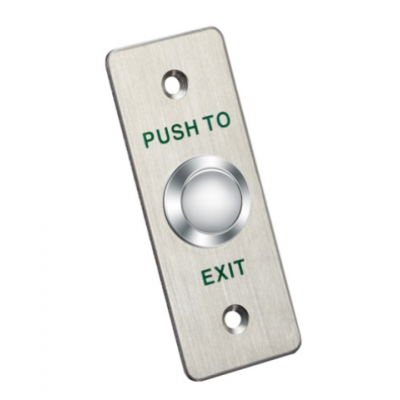

Aluminum alloy panel with sandblast finish, metal button, Passed 500,000 times aging test, NO/NC/COM Contact, 3A@36VDC Max
Couldn't load pickup availability
- Aluminum alloy panel with sandblast finish, metal button
- Passed 500,000 times aging test
- NO/NC/COM Contact
- 3A@36VDC Max
| Dimension (LxWxH) | 90x35x28.9mm(3.54x1.38x1.14") |
| Structure | Aluminum alloy panel, metal button |
| Current Rating | 3A@36VDC Max |
| Output Contact | NO/NC/COM Contact |
| Aging Test | Already passed 500 thousand times aging test |
| Suitable Doors | Hollow doorframe and embedded-electric box |
| Working Temperature | -10°C to +55°C (14°F to 131°F) |
| Working Humidity | 0 to 95% (relative humidity) |
| Panel | Aluminum panel with sandblast |
| Product Weight | 0.20kg (0.44lb) |
