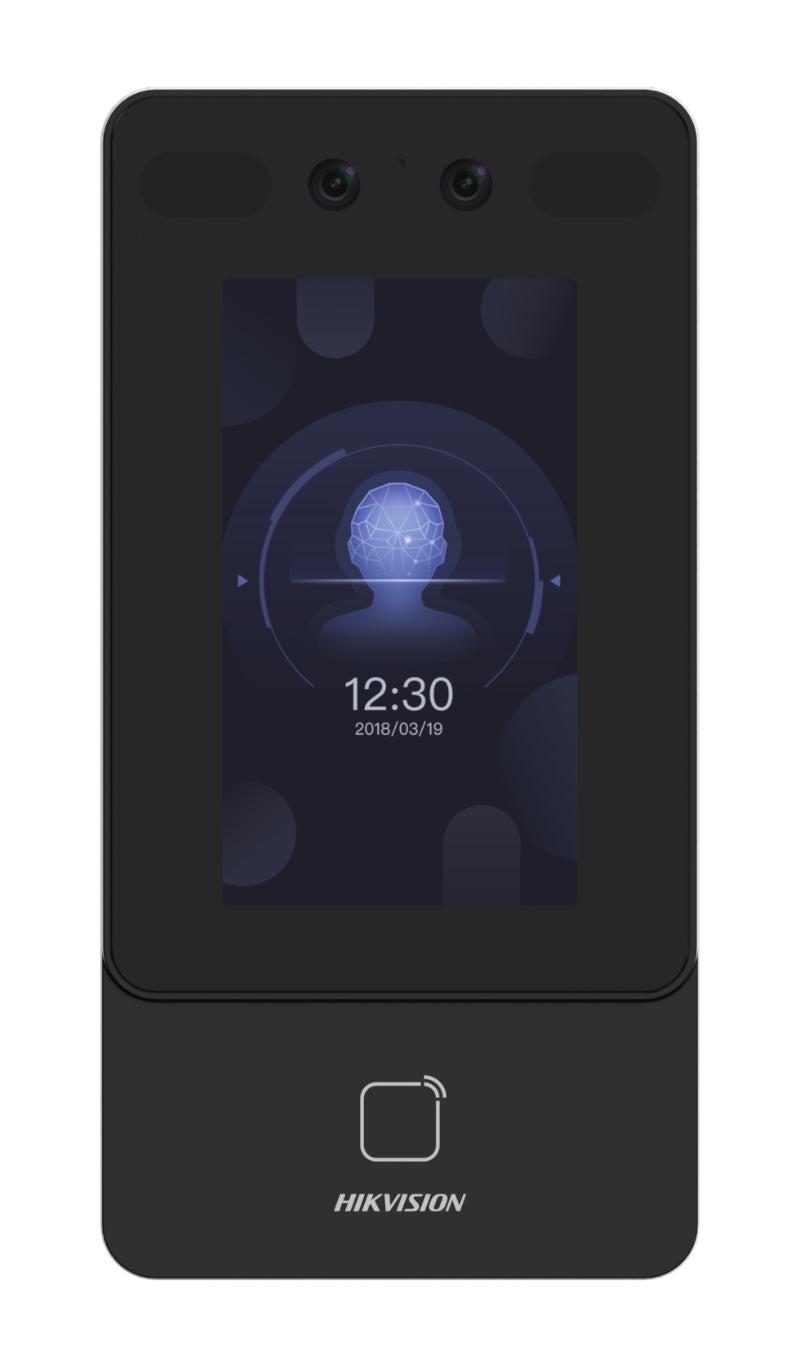

Hikvision OEM Face Recognition Terminal
Hikvision OEM Face Recognition Terminal
Model: GX-K1T342DWX-E1
Available in stock
Send a copy to email:
Open here
Couldn't load pickup availability
- Max.1500 faces capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens, built-in M1/Felica/DESfire card reading module
- Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
- Supports ISAPI, ISUP5.0
- Configuration via the web client
- Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
- Supports face with mask recognition
- Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
- Supports platform-applied personal PIN and device-set personal PIN
|
System |
|
|
Operation system |
Linux |
|
Display |
|
|
Dimensions |
4.3-inch |
|
Resolution |
272 × 480 |
|
Type |
LCD |
|
Operation method |
Capacitive touch screen |
|
Video |
|
|
Pixel |
2 MP |
|
Lens |
× 2 |
|
Video standard |
PAL (Default) and NTSC |
|
Network |
|
|
Wired network |
10 M/100 M self-adaptive |
|
Wi-Fi |
Support |
|
Interface |
|
|
PoE |
IEEE802.3at, standard PoE |
|
Network interface |
1 |
|
RS-485 |
1 |
|
Wiegand |
1 |
|
Lock output |
1 |
|
Exit button |
1 |
|
Door contact input |
1 |
|
TAMPER |
1 |
|
USB |
1 |
|
Capacity |
|
|
Card capacity |
3,000 |
|
Face capacity |
1,500 |
|
Event capacity |
150,000 |
|
Authentication |
|
|
Card type |
M1 card,DESfire card,Felica card |
|
Card reading frequency |
13.56 MHz |
|
Face recognition duration |
□ 0.2 s |
|
Face recognition accuracy rate |
＜99% |
|
Face recognition distance |
0.3 to 1.5 m |
|
General |
|
|
Power supply |
Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A) Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock) |
|
Working temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
|
Working humidity |
0 to 90% (No condensing) |
|
Dimensions |
91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96") |
|
Installation |
Wall Mounting |
|
Protective level |
IP65 |
|
Weight |
Gross weight: 0.93 kg (2.05 lbs) Net weight: 0.36 kg (0.79 lbs) |
|
Language |
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Brazilian Portuguese, Japanese, Korean, Chinese Traditional, French, Turkish, Kazakh and Uzbek. |
|
Function |
|
|
Face anti-spoofing |
Support |
|
Audio prompt |
Support |
|
Time synchronization |
Support |
