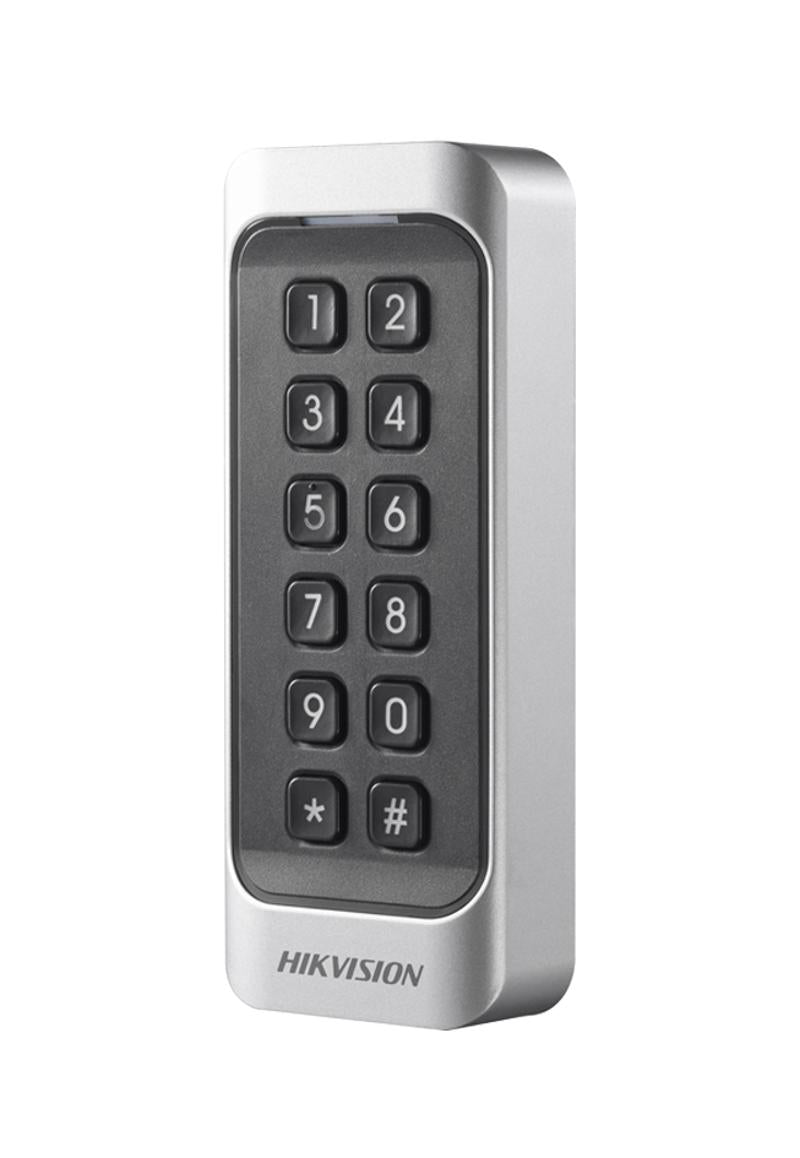

Hikvision OEM Access control card reader with keypad
Hikvision OEM Access control card reader with keypad
Model: GX-K1107AMK
Regular price
$73.95
Sale price
$73.95
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Couldn't load pickup availability
- Equipped with the 32-bit high-speed processor
- RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
- Build-in M1 card reading module (Frequency: 13.56MHz).
- Supports tampering alarm
- Built-in buzzer for identifying the reading status
- Online upgrade function
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
|
Interface |
|
|
TAMPER |
1 |
|
RS-485 |
1 RS-485. Supports OSDP protocol, Baud 19200 |
|
Wiegand |
1 (set via DIP switch) |
|
Authentication |
|
|
Card reading frequency |
13.56 MHz |
|
General |
|
|
Power supply |
12 VDC |
|
Power consumption |
≤ 2 W |
|
Working temperature |
-20 °C to 65 °C (-4 °F to 149 °F) |
|
Working humidity |
10% to 90% (no condensing) |
|
Protective level |
IP65 |
|
Dimensions |
115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'') |
|
Installation |
Wall mounting with screws; Do not support gang box |
|
Weight |
Gross weight: 0.25 kg (0.55 lb) Net weight: 0.16 kg (0.35 lb) |
|
Keypad |
12 Keys (0 to 9, *, #) |
|
Buzzer |
Support |
