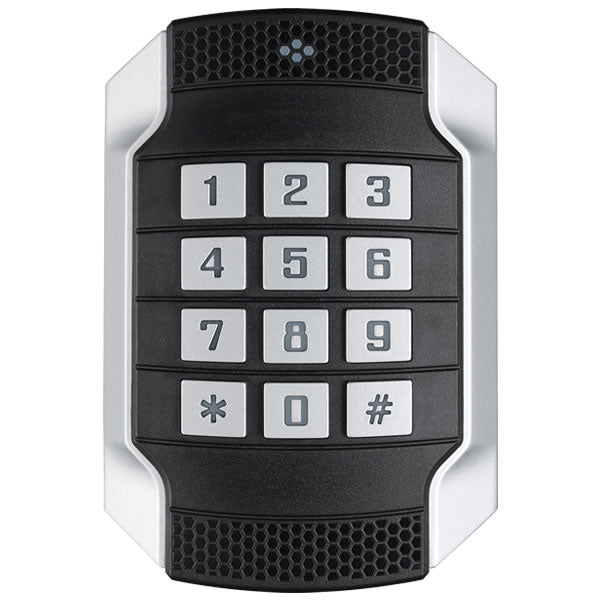

Mifare Card Reader Vandal Proof
Mifare Card Reader Vandal Proof
Model: GX-K1104MK
Regular price
$203.00
Sale price
$203.00
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Wiegand 26/34 Bit & Rs485 Mifare Card Reader (13.56mhz), Keypad W/ 12 Keys, Vandal-proof, Ip65 Dust-proof & Weather-proof Design,
Couldn't load pickup availability
| System Parameters | ||
|---|---|---|
| Card Reading Frequency: | 13.56MHz | |
| Card Reading Distance: | ?50mm (?1.97") | |
| ID Settings: | Setting by the DIP Switch on the Main Board | |
| Processor: | 32-bit | |
| General | ||
|---|---|---|
| Working Current: | ?500mA | |
| Key Board: | No Keypad (DS-K1104M) Keypad with 12 Keys (0 to 9, *, #) (DS-K1104MK) | |
| Audio Alert: | Beeper | |
| Power Supply: | 12VDC | |
| Power Consumption: | ?2W | |
| LED Indicator: | Power Indicator; Status LED Indicator | |
| Protection Level: | IP 65 Water-Proof | |
| Installation: | Applied for 86 & 120 Gang Box | |
| Certification: | CE, FCC | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -20°C to +65°C (-4°F to +149°F) | |
| Dimensions (L×W×H): | 118mm × 76mm × 23mm (4.65'' × 2.99'' × 0.91") | |
| Weight: | ? 0.52Kg | |
