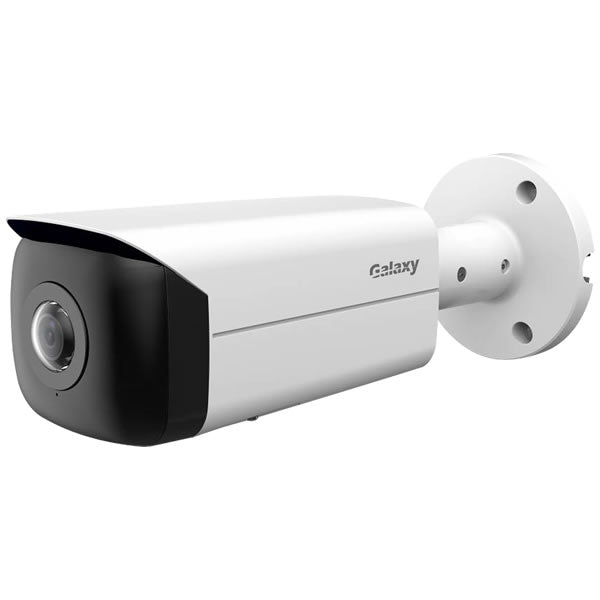

Galaxy Hunter 4MP Wide Angle Fixed Bullet AI Starlight Network Camera
Galaxy Hunter 4MP Wide Angle Fixed Bullet AI Starlight Network Camera
Model: GX-HT844F-AI-EPTZ
Available in stock
Send a copy to email:
Open here
4MP, 2688x1520, @30fps, H.265, 120dB WDR, SMD, People Counting, Face Detection, Intrusion Prevention, Tripwire, Human/Vehicle, IR, up to 20m (66ft), Built-in Mic, Audio, Alarm, MicroSD slot, IP67, 2.1mm Lens, Fixed, DC12V, Optional: GX-HT-BK-JB82X, GX-BK-JBE83X, GX-HT-BK-WM02D
Couldn't load pickup availability
> 4-MP 1/2.7" CMOS starlight-grade image sensor, low luminance, and high definition image.
> Outputs 4 MP (2688 × 1520) @25/30 fps , and supports max. 5 MP (2880 × 1620) @20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 20 m.
> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply.
> IP67 protection.
> EPTZ: Enlarge and track the targets of intelligent alarms.
> SMD 3.0.
|
Camera |
|||||
|
Image Sensor |
1/2.7" CMOS |
||||
|
Max. Resolution |
2880 (H) × 1620 (V) |
||||
|
ROM |
128 MB |
||||
|
RAM |
512 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s1/100,000 s |
||||
|
Min. Illumination |
0.01 lux@F2.0 (Color,30 IRE) |
||||
|
S/N Ratio |
>56 dB |
||||
|
Illumination Distance |
20 m (65.62 ft) (IR LED) |
||||
|
Illuminator On/Off Control |
Auto |
||||
|
Illuminator Number |
2 (IR LED) |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°360° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Lens Mount |
M12 |
||||
|
Focal Length |
2.1 mm |
||||
|
Max. Aperture |
F2.0 |
||||
|
Field of View |
LDC is disabled: |
||||
|
Close Focus Distance |
0.6 m (1.97 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.1 mm |
52.0 m |
20.8 m |
10.4 m |
5.2 m |
|
|
Intelligence |
|||||
|
IVS (Perimeter Protection) |
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
||||
|
SMD 3.0 |
Less false alarm, longer detection distance |
||||
|
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
||||
|
Smart Codec |
Smart H.265+; Smart H.264+ |
||||
|
AI Coding |
AI H.265; AI H.264 |
||||
|
Video Frame Rate |
Main stream: 2880 × 1620 @(120 fps )/2688 × 1520 @(125/30 fps ) |
||||
|
Stream Capability |
3 streams |
||||
|
Resolution |
5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 2304 × 296 ; 1080p(1920 × 1080); |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
H.264: 3 kbps8192 kbps; |
||||
|
Day/Night |
Auto (ICR)/Color/B/W |
||||
|
BLC |
Yes |
||||
|
HLC |
Yes |
||||
|
WDR |
120dB |
||||
|
Scene Self-adaptation (SSA) |
Yes |
||||
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||
|
Gain Control |
Auto; Manual |
||||
|
Noise Reduction |
3D NR |
||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
|
Region of Interest (RoI) |
Yes (4 areas) |
||||
|
Smart Illumination |
Yes |
||||
|
Defog |
Yes |
||||
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower) |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
4 areas |
||||
|
Audio |
|||||
|
Built-in MIC |
Yes |
||||
|
Audio Compression |
G.711a; G.711Mu; PCM; G.726; G.723 |
||||
|
Alarm |
|||||
|
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
||||
|
Network |
|||||
|
Network Port |
RJ-45 (10/100 Base-T) |
||||
|
SDK and API |
Yes |
||||
|
Cyber Security |
Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
||||
|
Network Protocol |
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
