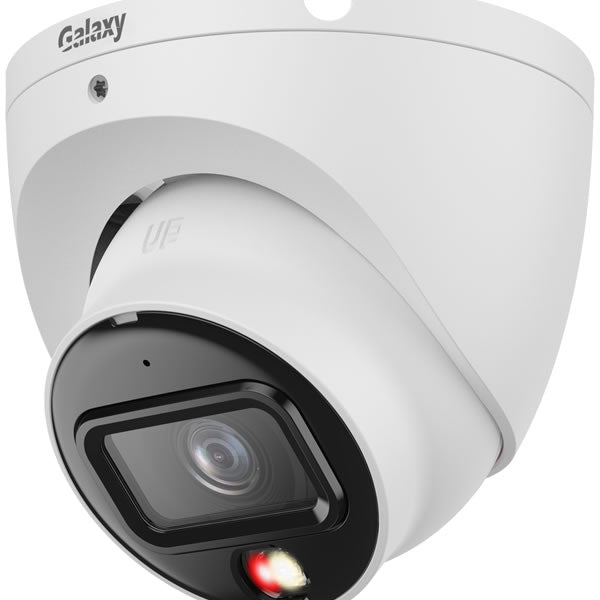

Galaxy Hunter Entry Level 6mp AI CAMERA
Galaxy Hunter Entry Level 6mp AI CAMERA
Model: GX-HT726E-SDI-28
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Galaxy Hunter Entry Level 6MP AI (Human Detection) Smart Dual Light Turret Fixed Lens IPC / H.265+ / 30 Meters IR Distance / Build In Mic / IP67 / PoE / 2.8mm Lens / 3.37" × 3.7" / 0.75LB / Optional Junction Box:GX-HT-BK-JB80X, GX-HT-BK-JB81X / Wall Mount: GX-HT-BK-WM09D / White Color
Couldn't load pickup availability
- The parameters and datasheets below can only be applied to 1639-S6 series.
- 1/2.7" CMOS image sensor, low luminance, and high definition
- Outputs 6 MP (3200 × 1800) @20 fps, and supports 2688 ×1520@25/30 fps.
- 265 codec, high compression rate, ultra-low bit rate.
- Built-in Multi-core Light, the IR distance is 30 m and the max. warm light distance is 30 m.
- ROI, SMART 264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring
- Built in
- 12 VDC/PoE power supply, easy for
- IP67
- Supports human
|
Image Sensor |
1/2.7" CMOS |
||||
|
Max. Resolution |
3200 (H) × 1800 (V) |
||||
|
ROM |
128 MB |
||||
|
RAM |
256 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s1/100,000 s |
||||
|
Min. Illumination |
0.007 lux@F1.6 (Color, 30 IRE); 0.0007 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
||||
|
S/N Ratio |
>56 dB |
||||
|
Illumination Distance |
Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
||||
|
Illuminator On/Off Control |
Auto;Manual |
||||
|
Illuminator Number |
1 (Multi-core (IR + warm) light) |
||||
|
Angle Adjustment
Lens |
Pan: 0°360°; Tilt: 0°78°; Rotation: 0°360° |
||||
|
|
|||||
|
Lens Type |
Fixed-focal |
||||
|
Lens Mount |
M12 |
||||
|
Focal Length |
2.8 mm; 3.6 mm |
||||
|
Max. Aperture |
F1.6 |
||||
|
Field of View |
2.8 mm: H: 110°; V: 58°; D: 132° 3.6 mm: H: 91°; V: 46°; D: 110° |
||||
|
Iris Control |
Fixed |
||||
|
Close Focus Distance |
2.8 mm: 1.1 m (3.61 ft) 3.6 mm: 1.7 m (5.58 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm |
63.6 m ( 208.66 ft) |
25.4 m ( 93.33 ft) |
12.7 m ( 41.67 ft) |
6.4m ( 21.00 ft) |
|
|
3.6 mm |
85.4 m ( 280.18 ft) |
34.2 m ( 112.20 ft) |
17.1 m ( 56.10 ft) |
8.5 m ( 27.89 ft) |
|
|
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
|||||
Intelligence
|
Human Detection |
Support the classification and accurate detection of human |
|
Smart Search
Video
Video Compression |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
|
|
|
|
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
|
|
Smart Codec |
Smart H.265+; Smart H.264+ |
|
Video Frame Rate |
Main stream: 3200 × 1800@(120 fps)/2688 × 1520@(125/30 fps) sub stream: 704 × 576@(125 fps)/704 × 480@(130 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|
Stream Capability |
2 streams |
|
|
6M (3200 × 1800); 4M (2880 × 1620/2688 × 1520); 3M |
|
Resolution |
(2048 × 1536/2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × |
|
|
480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|
Bit Rate Control |
VBR;CBR |
|
Video Bit Rate |
H.264: 32 kbps8192 kbps; H.265: 12 kbps8192 kbps |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
DWDR |
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Region of Interest (RoI) |
Yes (4 areas) |
|
Smart Illumination |
Yes |
|
Smart Dual Light |
Yes |
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
|
Mirror |
Yes |
|
Privacy Masking
Audio Built-in MIC |
4 areas |
|
|
|
|
Yes, built-in Mic |
|
|
Audio Compression |
G.711a; G.711Mu; PCM; G.726 |
|
Alarm |
|
|
|
Network disconnection; IP conflict; illegal access; motion |
|
Alarm Event |
detection; video tampering; audio detection; SMD |
|
|
(human); security exception |
|
Network |
|
|
Network Port |
RJ-45 (10/100 Base-T) |
|
SDK and API |
Yes |
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
|
Interoperability |
ONVIF (Profile S & Profile T); CGI |
|
User/Host |
20 (Total bandwidth: 48 M) |
|
Storage |
FTP |
|
Browser |
IE; Chrome; Firefox |
|
Management Software |
Smart PSS Lite; DSS; DMSS; DoLynk Care |
|
Mobile Client |
iOS;Android |
|
Cyber Security |
Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade |
|
Certification |
|
|
Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
|
Power |
|
|
Power Supply |
12 VDC/PoE (802.3af) |
|
Power Consumption |
Basic: 2 W (12 VDC), 2.9 W (PoE); Max. : 4 W (12 VDC); 5.3 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity) |
|
Environment |
|
|
Operating Temperature |
40 °C to +60 °C (40 °F to +140 °F) |
|
Operating Humidity |
</=95%(RH), non-condensing |
|
Storage Temperature |
40 °C to +60 °C (40 °F to +140 °F) |
|
Storage Humidity |
</=95%(RH), non-condensing |
|
Protection |
IP67 |
|
Structure |
|
|
Casing Material |
Metal |
|
Product Dimensions |
85.6 mm × 94.0 mm (3.37" × 3.7") |
|
Net Weight |
0.34 kg (0.75 lb) |
|
Gross Weight |
0.45 kg (0.99 lb) |
