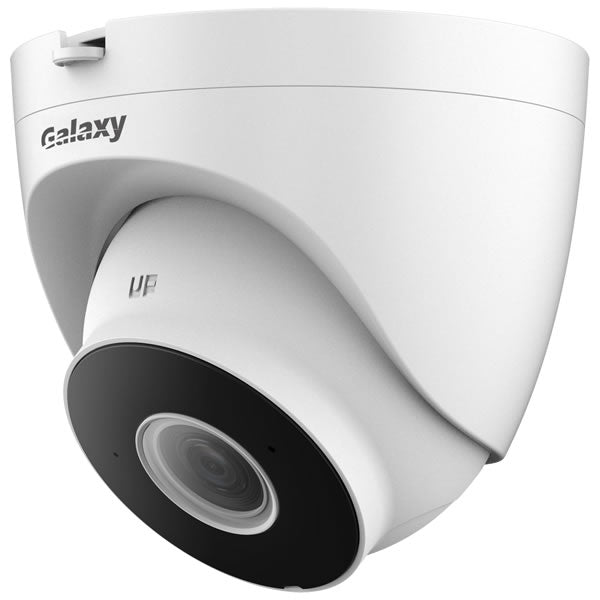

Galaxy Hunter 4MP IR WiFi turret camera with fixed lens, outdoor security camera with night vision and wireless connectivity.

GX-HT724A-28WIFI Galaxy Hunter 4MP IR Fixed WiFi Turret Camera

Name: GX-HT724A-28WIFI Galaxy Hunter 4MP IR Fixed WiFi Turret Camera
Brand: My Store
Price: 150.80 CAD
Availability: InStock

Model: GX-HT724A-28WIFI

$150.80

Available in stock

🖨️ Print as PDF

4MP, 2560x1440@20fps, H.265+, DWDR, 0.025Lux, IR up to 30m (98ft), Built-in Mic/Speaker, Dual Antenna, Motion Detection, MicroSD Card slot, 2.8mm Fixed Lens, DC12V, IP67 / Optional Junction Box: PFA13G
Wall Mount: GX-HT-BK-WM04D
Pole Mount: GX-HT-BK-UP06

> 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 4 MP (2560 × 1440) @20 fps, and max.supports 3 MP (2304 × 1296) @25 fps/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 30 m.

> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access.

> Built-in dual-antenna 2.4G Wi-Fi that covers a range of up to 120 m in an open area.

> Supports max.256 G Micro SD card. Built-in MIC and speaker.

> 12 VDC power supply.

> IP67 protection.

Camera

Image Sensor

1/3" CMOS

Max. Resolution

2560 (H) × 1440 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s1/100,000 s

Min. Illumination

0.025 lux@F2.0 (Color, 30 IRE)

0.0025 lux@F2.0 (B/W, 30I RE)

0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°360°
Tilt: 0°78°
Rotation: 0°360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm:

Horizontal: 90°; Vertical: 50°; Diagonal: 107°

3.6 mm:

Horizontal: 76°; Vertical: 40°; Diagonal: 92°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.28 ft)
3.6 mm: 1.4 m (4.59 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

68.0 m (223.10 ft)

27.2 m

(89.24 ft)

13.6 m

(44.62 ft)

6.8 m

(22.31 ft)

3.6 mm

85.2 m (279.53 ft)

34.1 m

(111.88 ft)

17.0 m

(55.77 ft)

8.5 m

(27.89 ft)

Video

Video Compression

H.264B; H.264; H.264H; H.265

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream:
2560 × 1440 (120 fps)
Sub stream:
704 × 576 (125 fps)
704 × 480 (130 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 24 kbps4096 kbps

H265: 9 kbps4096 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Smart Illumination

Yes

Image Rotation

0°/180°

Mirror

Yes

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

G.711a; G.711Mu

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE802.11b/g/n 2.42.4835 GHz; 2.4 G

Wireless Range

Up to 120 m (The performance varies based on

actual environment)

SDK and API

Yes

Cyber Security

Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP

Interoperability

ONVIF (Profile S/Profile T); CGI; P2P

User/Host

6 (Total bandwidth: 36 M)

Storage

Micro SD card (support max. 256 GB)
