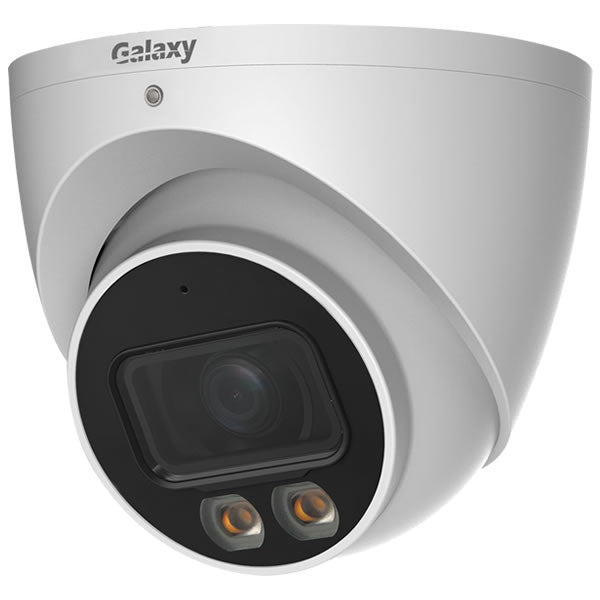

Galaxy Hunter 4MP Full Color Starlight Warm Light AI Turret IP Camera
Galaxy Hunter 4MP Full Color Starlight Warm Light AI Turret IP Camera
Model: GX-HT724-AI-LED-28CF
Regular price
$216.05
Sale price
$216.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Galaxy Hunter 4MP Full Color Starlight Warm Light AI Turret IP Camera / H.265 / True WDR / 17 Meter IR Distance / SD Card Support / Audio / IP67 / 2.8mm Lens / AI Functions: Face
Detection, Perimeter Protection, People Counting
JUNCTION BOX: GX-HT-BK-JB80X
WALL MOUNT: GX-HT-BK-WM09D
Couldn't load pickup availability
- 1/1.8" 4Megapixel progressive scan CMOS
- H.265 & H.264 triple-stream encoding
- 25/30 fps@2688 × 1520, 50/60 fps@1080P (1920 × 1080)
- WDR (140 dB), Day/Night (Electronic), 3D DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- 2.8 mm fixed lens
- Built-in MIC, Max. LEDs Length 20 m
- Micro SD memory, IP67
| Camera | |
| Image Sensor | 1/1.8 4Megapixel progressive scan CMOS |
| Effective Pixels | 2688 (H) ×1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s1/100000 s |
| Min. Illumination | 0.002 Lux@F1.6 |
| IR Distance | up to 20 m (66 ft) |
| IR On/Off Control | Auto/Manual |
| LEDs | 2 |
| Lens | |
| Lens Type | Fixed focal |
| Mount Type | Board-in |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31° |
| Iris Type | Fixed |
| Close Focus Distance | 1.3 m (4.27 ft) |
| DORI Distance | Detect: 58m(192ft), Observe: 23m(75ft), Recognize: 12m(39ft), Identify: 6m(20ft) |
| Pan/Tilt/Rotation | |
| Pan/Tilt/Rotation Range | Pan: 0?360?; Tilt: 0?78?; Rotation: 0?360? |
| Artificial Intelligence | |
| Face Detection | Support face image capture |
| Perimeter Protection | Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering |
| People Counting | Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection |
| General Intelligence | |
| Event Trigger | Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly |
| General Intelligence | Object Abandoned/Missing |
| Heat Map | Yes |
| Video | |
| Video Compression | H.265,H.264,H.264B,H.264H,MJPEG (sub stream) |
| Smart Codec | Yes |
| Streaming Capability | 3 Streams |
| Resolution | 2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
| Frame Rate | Main Stream: 2688 × 1520 (1 fps25/30 fps), 2560 × 1440 (1 fps25/30 fps), 1920 × 1080 (1 fps50/60 fps)
Sub Stream: D1 (1 fps25/30 fps), D1 (1 fps50/60 fps) Third Stream: 1080P (1 fps16 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 Kbps8192 Kbps H.265: 3 Kbps8192 Kbps |
| Day/Night | Day/Night: Electronic, Auto/Color/B/W |
| BLC Mode | BLC/HLC/WDR (140 dB) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off/On (4 Zone, Rectangle) |
| Region of Interest | Off/On (4 Zone) |
| Electronic Image Stabilization (EIS) | N/A |
| Smart IR | Yes |
| Defog | Yes |
| Flip | 0°/90°/180°/270° |
| Mirror | Off/On |
| Privacy Masking | Off/On (4 Area, Rectangle) |
| Audio | |
| Compression | G.711a, G.711Mu, G.726, AAC, G.723 |
| Network | |
| Network | RJ-45 (10/100 Base-T) |
| Protocol | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP; FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP; NFS;PPPoE;802.1x;SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P |
| Streaming Method | Unicast/Multicast |
| Max. User Access | 20 Users |
| Edge Storage | NAS;FTP;SFTP, Micro SD card 256 GB |
| Web Viewer | IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12) |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | iOS, Android |
| Interface | |
| Audio Interface | Built-in MIC |
| RS485 | N/A |
| Alarm | N/A |
| Electrical | |
| Power Supply | DC 12V (±30%), PoE (802.3af) (Class 0) |
| Power Consumption | <7.2W |
| Environment | |
| Operating Conditions | -30° C to +60° C (-22° F to +140° F)/Less than 95% RH |
| Strorage Conditions | -30° C to +60° C (-22° F to +140° F) |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Metal |
| Dimensions | ?106 mm × 99.2 mm (4.17 × 3.91) |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.71 kg (1.57 lb) |
