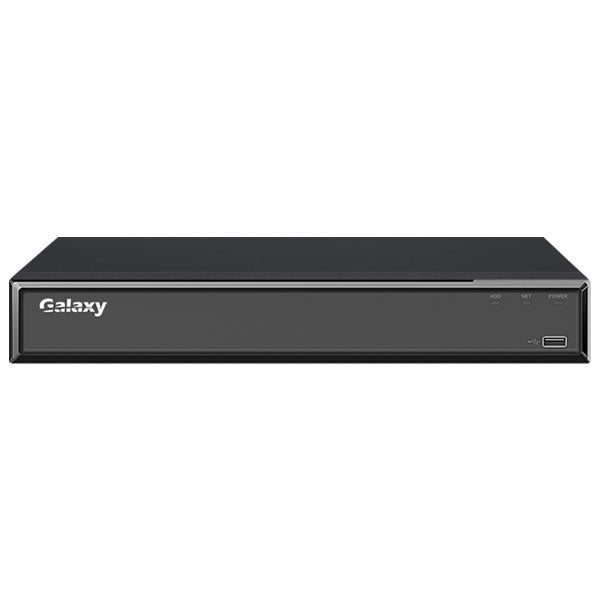

Galaxy Hunter Series 4CH 4K AI Pentabrid DVR
Galaxy Hunter Series 4CH 4K AI Pentabrid DVR
Model: GX-HT-XVR8504K-ST-AI+1TB
Regular price
$381.35
Sale price
$381.35
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
4CH HDCVI/AHD/TVI/CVBS, 8CH IP, H.265+, Perimeter, Face Detection, SMD+, 1x HDMI, 1x VGA, Audio, 1x SATA up to 10TB, 2xUSB2.0, 1xRJ45, RS485, Onvif, Mini 1U
Couldn't load pickup availability
- H.265+/H.265 dual-stream video compression
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Supports 8 channels of IPC access, each channel up to 8MP input; Max 32Mbps Incoming Bandwidth
- IoT & POS functionalities
- Perimeter Protection and SMD Plus
- Up to 2 channels video stream(analog channel )human face recognition
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Perimeter Protection | |
| Perimeter protection | 1.AI by DVR: Detection alarm for human and vehicle. Filter misinformation such as leaves and light. 2.Function configuration: Set at most 10 rules such as area intrusion and tripwire intrusion. 3.Performance: 2 channels |
| Live View | 1. Rule box inspection: Configure the rule box and object inspection box. 2.Smart panel: Display object classification (human, vehicle), event types, triggering time, image matting and object types. Attribute is not supported. 3. Counting: Count people in Peopletotal. Count motor vehicles in Vehicle. Support exporting of associated event playback before and after 10 seconds. |
| Playback | 1. Search conditions: According to channels, time, event types and target types. 2.Functions: Support search of associated event playback or snapshot before and after 10 seconds. 3. Snapshot capacity: 500,000 |
| Face Recognition | |
| Performance | 1. UP to 12 face pictures/sec processing (modeling and comparing). 2. Up to 2 channels video stream (analog channel ) human face recognition. 3. Up to 10 face databases with 10,000 face images in total. 4. Up to 300,000 face detection events in total. 5. Up to 300,000 face Recognition events in total. |
| Stranger Mode | Detect strangers' faces (not in device's face database).Similarity threshold can be set manually. |
| AI Search | Up to 8 target face images search at same time, similarity threshold can be set for each target face image. |
| Database Management | Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture. |
| Database Application | Each database can be applied to video channels independently. |
| Trigger Events | Buzzer, Voice Prompts, Email, Snapshot, Recording, PTZ Activation, etc. |
| SMD Plus | |
| SMD Plus | 1. AI by DVR: Motion detection alarm for human and vehicle. Filter misinformation such as leaves and light. 2. Performance: 4 channels , AI by DVR |
| Preview | Preview: Configure and inspect detection box |
| Playback | 1.Playback: Search videos through channels, time and target types. 2.Functions: Support search of associated event playback before and after 10 seconds. |
| Video and Audio | |
| Analog Camera Input | 4 Channel, BNC |
| HDCVI Camera | 4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera | 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera | 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 4+4 Channel, each channel up to 8MP |
| Audio In/Out | 4 Channel Input, 1 Channel Output, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
| Recording | |
| Compression | H.265+/H.265/H.264+/H.264 |
| Resolution | 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF, QCIF |
| Record Rate | Main stream: All channel: 4K(1fps7fps); 6MP(1fps10fps); 5MP(1fps12fps); 4K-N/4MP/3MP(1fps15fps); 4M-N/1080P/720P/960H/D1/CIF/QCIF (1fps25/30fps); Sub steram:960H(1fps15fps); D1/CIF/QCIF(1fps25/30fps) |
| Bit Rate | 32Kbps6144Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Stop |
| Record Interval | 160 min (default: 60 min), Pre-record: 1 sec30 sec, Post-record: 10 sec300 sec |
| Audio Compression | AAC(only for the 1st channel), G.711A, G.711U, PCM |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI:2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Network | |
| Interface | 1 RJ-45 Port (100M) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis |
| Alarm input | - |
| Relay Output | - |
| Playback and Backup | |
| Playback | 1/4 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA Port, up to 10TB capacity for each disk |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 USB Ports (2 USB 2.0 ) |
| RS232 | N/A |
| RS485 | 1 Port, for PTZ Control |
| Electrical | |
| Power Supply | DC 12V/2A |
| Power Consumption | <10W (Without HDD) |
| Construction | |
| Dimensions | Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2") |
| Net Weight | 1.45kg (3.2lb) (without HDD) |
| Gross Weight | 2kg (4.4lb) |
| Installation | Desktop installation |
| Environmental | |
| Operating Conditions | -10°C to +55°C (+14°F to +131°F), 090% RH |
| Storage Conditions | -20°C to +70°C (-4°F to +158°F) , 090% RH |
| Third-party Support | |
| Third-party Support | Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
