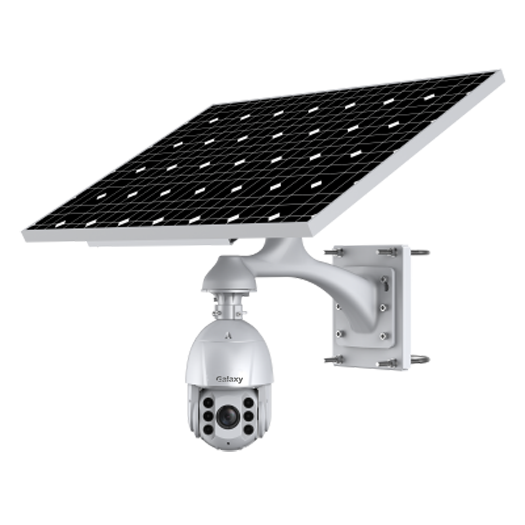

Integrated Solar Power System (Without Lithium Battery)

Model

DH-PFM378-B125-CB

Solar Panel

Type

Monocrystalline silicon

Max. Power

125 W

Solar Cell Efficiency

21%

Max. Mechanical Load

5400 Pa

Controller

Type

MPPT

Operating Voltage

12 VDC

Rated Charging Current

10 A

Rated discharge current

10 A

MPPT Tracking Efficiency

>/= 99%

Communication Mode

RS485

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Rated Charging Power

130 W

Over-discharge Protection Voltage

11.1 VDC

Others

Over-temperature ,over-discharge,overa-voltage and low-temperature protection of battery; overload and short circuit protection of load.

Port

Power Output

PHI 5.5 mm × PHI 2.1 mm × 12 mm (PHI 0.22" × PHI 0.08" × 0.47")

RS–485

Red: RS485-A
Black: RS485-B

Output Port

CSA authorized M15 2-core waterproof connector (connected to lithium battery)

General

Main Body Material

Q235 steel/aluminum

IP Rating

IP65

Installation

Pole mount, PHI 80mm~PHI 150mm

Adjustable Angle

Solar panel: H: 360°, V: 10°/20°/30°/40°/50°

Product Dimensions

965.0 mm × 910.5 mm × 786.4 mm (37.99" × 35.85" × 30.96")

Packaging Dimensions

1,280 mm × 775 mm × 280 mm (50.39" × 30.51" × 11.02")

Packaging Method

1 pc in each carton

Net Weight

20.1 kg (44.31 lb)

Gross Weight

26 kg (57.32 lb)

Environment

Operating Altitude

< 3000 m (9842.5 ft)

Applicable Area

Areas with daily exposure to solar radiation for more than 3.5 hours

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

< 95% (RH)

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Humidity

< 95% (RH)

Certifications

Certifications

CE: EN 55032: 2015+A11: 2020, EN 55030-4: 2011+A1: 2014, EN 55024: 2010+A1: 2015, EN 55035: 2017+A11: 2020
FCC: 47 CFR Part 15, Subpart B
UKCA: EN 55032: 2015+A11: 2020, EN 55030-4: 2011+A1: 2014, EN 55024: 2010+A1: 2015, EN 55035: 2017+A11: 2020

4 MP 32x Startlight IR WizSense Network PTZ Camera

Model

DH-SD6C3432XB-HNR-AGQ-PV

Camera

Image Sensor

1/2.8” CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)

Illumination Distance

150 m (492.13 ft) (IR)
80 m (262.47 ft) (white light)

Illuminator Number

4 (IR)
2 (white light)

Lens

Focal Length

4.8 mm–154 mm

Max. Aperture

F1.6–F4.0

Field of View

H: 55.8°–2.3°
V: 31.9°–1.3°
D: 63.7°–2.7°

Optical Zoom

32×

Focus Control

Auto; Semi-Auto; Manual

Close Focus Distance

0.1m-1.5m

Iris Control

Auto

DORI Distance

Detect

Observe

Recognize

Identify

3,080 m (10104.99

ft)

1,216.6 m (3991.47

ft)

616 m (2021.00

ft)

308 m (1010.50

ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –20° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°–160°/s; Tilt: 0.1°–120°/s

Preset Speed

Pan: 240°/s; Tilt: 150°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

Smart Event

IVS

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; linkage tracking

Intelligence

Smart Capture

Support human, motor vehicle and non-motor vehicle image capture.

IVS (Perimeter Protection)

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

Face Detection

Yes

People Counting

Yes

Auto Tracking

Preset; Pattern; Tour; Scan

Video

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream)

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p (1–50/60 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 2816 kbps–8192 kbps
H.265: 1024 kbps–7936 kbps

Day/Night

Auto (ICR); Color; B/W

BLC

Yes

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Region of Interest (RoI)

Yes

Image Stabilization

EIS

Defog

Electronic defog

Digital Zoom

16 ×

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view

S/N Ratio

>/= 55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

4G-Wireless Frequency Range

LTE-FDD: B1/3/5/7/8/20
LTE-TDD: Band 38/40
WCDMA: Band 1/5/8
GSM: 850/900/1800 MHz

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP;DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS

Interoperability

ONVIF (Profile S&G&T); CGI; Dahua SDK; GA/T 1400; SDK; API

User/Host

20 (total bandwidth: 64 MB)

Storage

FTP; Micro SD card (256 GB); NAS

Management Software

Smart PSS; DSS; DMSS; Easy4ip; IVSS; ConfigTool; NVR; Smart Player; Imou; NetSDK

Mobile Client

iOS; Android; iPhone; iPad; Windows Phone

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

Port

RS-485

1 (baud rate: 1200 bps–9600 bps)

Two-way Audio

Yes

Alarm Linkage

Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email; waking up

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Alarm I/O

2/1

Audio I/O

1/1

Power

Power Supply

12 VDC, 4 A (–10% to +25%)

Power Consumption

Sleep: </= 1 W
Basic: 4.0 W (not pulling stream in 4G), 7.4 (pulling stream in 4G)
Max.: 27 W (illuminator+heater+PTZ+speaker+pulling stream in 4G)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

</= 95%

Protection

IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Casing

ADC12

Dimensions

325.0 mm × PHI 202.0 mm (12.80" × PHI 7.95")

Net Weight

4.4 kg (9.70 lb)

Gross Weight

6.4 kg (14.11 lb)

Ceiling Mount Bracket of PTZ camera

Model

DH-PFB301C

General

Material

Aluminum alloy

Dimension (W×H×D)

PHI 128.8 mm × 35.5 mm (5.07" × 1.40") (D × H)

Weight

0.21 kg (0.46 lb)

Load Bearing

10.0 kg (22.04 lb)

Mount Adapter

Model

PFA111

General

Material

Aluminum

Dimension (W×H×D)

PHI 60 mm x 49 mm (PHI 2.36" × 1.93")

Weight

0.25 kg (0.55 lb)

Load Bearing

7.0 kg (15.43 lb)
