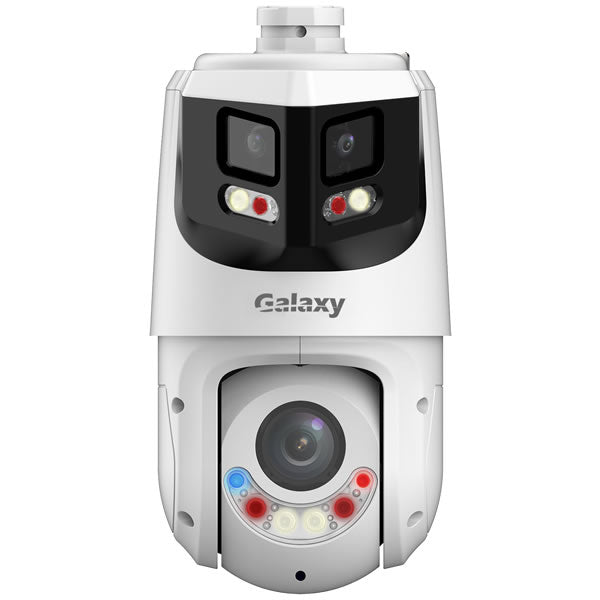

Galaxy Hunter 8MP+4MP 25X AI Active Deterrence Auto Tracking Camera
Galaxy Hunter 8MP+4MP 25X AI Active Deterrence Auto Tracking Camera
Model: GX-HT-PTZ844PX25-AI-AD
Available in stock
Send a copy to email:
Open here
Galaxy Hunter 8MP+4MP 25X AI Active Deterrence Auto Tracking / Smart Tracking Panoramic PTZ / Color247 / 25x Optical Zoom / 100 IR Distance / Two Way Audio requires an external microphone/ Build in Speaker / AI Human Vehicle Detection / Perimeter Protection / IP66 / Red Blue Warning Lights / Sound Warning / 2.8 Wide angle lens / 5~125mm Motorized Lens / WDR 120dB / Audi/Alarm / Micro SD Card Slot /Support - 40 Degrees / mm (7.65" × 6.30" × 12.24") (L × W × H) / 10.14lb / Wall Mount Bracket Included / Optional Corner Mount PFA151 / Pole Mount Bracket GX-HT-BK-UP06 / Ceiling Mount: PFB300C / Pole Mount: PFA150 / Parapet Mount: PFB303S / Power adapter DC12V/3A / PoE+ (30W) Not Included
Couldn't load pickup availability
> Overview channel: Outputs 180° wide angle splicing image
> Detail channel: 1/2.8"4Megapixel STARVIS™ CMOS
> 25x optical zoom
> Max. 25/30 fps@8M
> IR distance up to 100 m
> Auto tracking 3.0
> Smart tracking
> Perimeter protection
> Active deterrence
> Smart dual light +
|
Camera |
|||||
|
Image Sensor |
Overview channel: 1/2.7" CMOS; Detail channel: 1/2.8" CMOS |
||||
|
Pixel |
Overview channel: 8 MP; Detail channel: 4 MP |
||||
|
Max. Resolution |
Overview channel: 4096 (H) × 1860 (V); Detail channel: 2560 (H) × 1440 (V) |
||||
|
ROM |
Overview channel: 4 GB; Detail channel: 4 GB |
||||
|
RAM |
Overview channel: 2 GB; Detail channel: 1 GB |
||||
|
Electronic Shutter Speed |
1 s–1/30,000 s |
||||
|
Scanning System |
Progressive |
||||
|
Min. Illumination |
Overview channel: |
||||
|
Illumination Distance |
Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light); Detail channel: 100 m (328.08 ft) (IR); 50 m (131.23 ft) (white light) |
||||
|
Illuminator On/Off Control |
Overview channel: |
||||
|
Illuminator Number |
Overview channel: 2 (IR light); 2 (White light); Detail channel: 2 (IR light); 2 (Warm light) |
||||
|
Lens |
|||||
|
Focal Length |
Overview channel: 2.8 mm; Detail channel: 5 mm–125 mm |
||||
|
Max. Aperture |
Overview channel: F1.4; Detail channel: F1.6-F3.6 |
||||
|
Field of View |
Overview channel: H: 180°; V: 86°; Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
||||
|
Optical Zoom |
Overview channel: NA; Detail channel: 25× |
||||
|
Focus Control |
Auto; manual; semi-auto |
||||
|
Close Focus Distance |
Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33"–1.64") |
||||
|
Iris Control |
Overview channel: NA; Detail channel: Auto; manual; iris prio |
||||
|
DORI Distance |
Detect |
Detect |
Observe |
Recognize |
Identify |
|
Overview channel: 2.8 mm |
56.0 m (183.72 ft) |
22.4 m (73.49 ft) |
11.2 m (36.74 ft) |
5.6 m (18.37 ft) |
|
|
Detail channel: W |
100.0 m (328.08 ft) |
40.0 m (131.23 ft) |
20.0 m (65.62 ft) |
10.0 m (32.81 ft) |
|
|
Detail channel: T |
2500.0 m (8202.00 ft) |
1000.0 m (3280.80 ft) |
500.0 m (1640.40 ft) |
250.0 m (820.20 ft) |
|
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||
|
PTZ |
|||||
|
Pan/Tilt Range |
Pan: 0° to 360° endless |
||||
|
Manual Control Speed |
Pan: 0.1°/s–180°/s; |
||||
|
Preset Speed |
Pan: 0.1°/s–180°/s; |
||||
|
Preset |
300 |
||||
|
Tour |
8 (up to 32 presets per tour) |
||||
|
Pattern |
5 |
||||
|
Scan |
5 |
||||
|
Power-off Memory |
Yes |
||||
|
Idle Motion |
Preset; Pattern; Tour; Scan |
||||
|
Intelligence |
|||||
|
IVS (Perimeter Protection) |
Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking |
||||
|
SMD |
SMD 4.0 |
||||
|
Active Deterrence |
|||||
|
Light Warning |
Red-Blue light warning; |
||||
|
Sound Warning |
Offers 11 sound alarm and 10 custom sound alarms can be imported. |
||||
|
Video |
|||||
|
Video Compression |
Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
||||
|
Streaming Capability |
3 streams |
||||
|
Resolution |
Overview channel: 8M (4096 × 1860); 2M (2048 × 928); 1080p (1920 × 1080); 720p (1280 × 720); 1024 × 448; D1 (704 × 576/704 × 480);VGA (640 × 480);CIF (352 × 288/352 × 240); Detail channel: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480);VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||
|
Video Frame Rate |
Overview channel: |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
Overview channel: |
||||
|
Day/Night |
Overview channel: Auto; Color; B/W; Electronic |
||||
|
BLC |
Yes |
||||
|
WDR |
Overview channel: DWDR; Detail channel: 120 dB |
||||
|
HLC |
Yes |
||||
|
White Balance |
Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
||||
|
Gain Control |
Overview channel: Auto; manual; gain prio |
||||
|
Noise Reduction |
Overview channel: 2D NR; 3D NR |
||||
|
Motion Detection |
Yes |
||||
|
Region of Interest (RoI) |
Yes |
||||
|
Image Stabilization |
Overview channel: NA |
||||
|
Defog |
Overview channel: Electronic |
||||
|
Digital Zoom |
Overview channel: NA; |
||||
|
Image Rotation |
Overview channel: NA |
||||
|
S/N Ratio |
Overview channel: >/=55 dB |
||||
|
Audio |
|||||
|
Audio Compression |
PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729 |
||||
|
Network |
|||||
|
Network Port |
RJ-45 (100/1,000 Base-T) |
||||
|
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; NFS |
||||
|
Interoperability |
ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P |
||||
|
Streaming Method |
Unicast/Multicast |
||||
|
User/Host |
20 (total bandwidth: 64 M) |
||||
|
Storage |
Micro SD card (512 GB); FTP/SFTP; NAS |
||||
|
Browser |
web5.0: |
||||
|
Management Software |
DMSS; DSS Pro |
||||
|
Mobile Client |
iOS; Android |
||||
|
Management Software |
DMSS; DSS Pro |
||||
|
Mobile Client |
iOS; Android |
||||
|
Certification |
|||||
|
Certifications |
CE: EN 50130-4 |
||||
|
Port |
|||||
|
Audio Input |
1 channel (LINE IN, bare wire) |
||||
|
Audio Output |
1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)) |
||||
|
Alarm Input |
2 (on-off value input: 0–5 VDC) |
||||
|
Alarm Output |
1 channel |
||||
|
Alarm Linkage |
Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light |
||||
|
Alarm Event |
Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
||||
|
Alarm Event |
Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
||||
|
Power |
|||||
|
Power Supply |
12 VDC, 3 A ± 10%;PoE (802.3at) |
||||
|
Power Consumption |
Basic: 14 W; |
||||
|
Power Adapter |
Optional |
||||
|
Environment |
|||||
|
Operating Temperature |
–40 C to +65 C (–40 F to +149 F) |
||||
|
Operating Humidity |
</=95% |
||||
|
Protection |
IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection |
||||
|
Structure |
|||||
|
Product Dimensions |
194.2 mm × 160 mm × 311 mm (7.65" × 6.30" × 12.24") (L × W × H) |
||||
|
Net Weight |
3.1 kg (6.83 lb) |
||||
|
Gross Weight |
4.6 kg (10.14 lb) |
