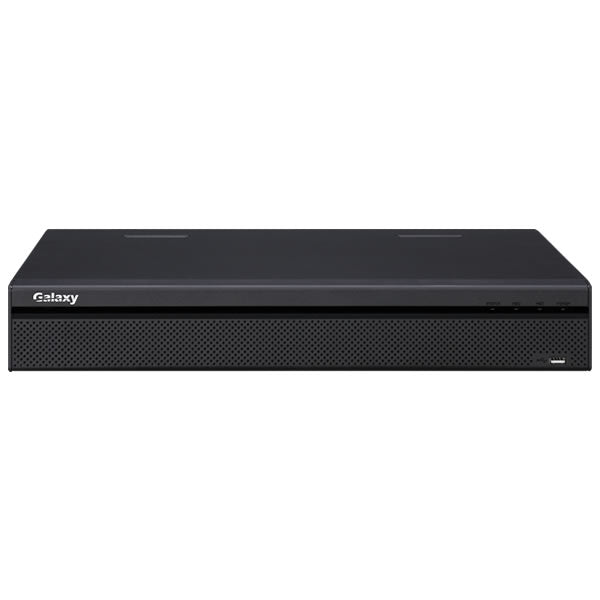

Galaxy Hunter Series 32CH 4K H.265 1.5U NVR
Galaxy Hunter Series 32CH 4K H.265 1.5U NVR
Model: GX-HT-NVR8432
Regular price
$729.35
Sale price
$729.35
Regular price
Out of stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
32CH 4K NVR, Support AI IPC, 2CH 4K@30fps, 8CH 1080P@30fps, 200Mbps, H.265+, 1x VGA, 1x 4K HDMI, 4x SATA up to 10TB/ea, 1x USB2.0, 1x USB3.0, Alarm, RS232, RS485, RJ45, P2P, Onvif, 1.5U
Couldn't load pickup availability
- Smart H.265+/H.265/Smart H.264+/H.264
- Max 200Mbps Incoming Bandwidth
- Up to 8MP Resolution for Preview and Playback
- Up to 2ch@4K/8ch@1080P decoding
- HDMI/VGA simultaneous video output
- Support IPC UPnP, 16PoE ports
| System | |
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| Aduio and Video | |
| IP Camera Input | 32 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 |
| VGA: 1920×1080, 1280×1024, 1280×720 | |
| Decoding Capacity | 2ch@4K 30fps, 8ch@1080P 30fps |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Recording | |
| Compression | Smart H.265+/H.265/Smart H.264+/H.264 |
| Resolution | 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
| Record Rate | 200Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Alarm input | 16 Channel |
| Alarm output | 4 Channel |
| Playback and Backup | |
| Playback | 1/4/9/16 |
| Search Mode | Time /Date, MD and Exact Search (accurate to second), Smart search |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Third-party Support | |
| Third-party Support | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more |
| Network | |
| Interface | 1 RJ-45 Port (10/100/1000Mbps) |
| PoE | - |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support IP camera, DVR, NVS, etc.), Easy4ip |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Storage | |
| Internal HDD | 4 SATA III Ports, Up to 10 TB capacity for each HDD |
| HDD Mode | Single |
| Auxiliary Interface | |
| USB | 2 ports(1 USB2.0, 1 USB3.0) |
| RS232 | 1 Port, for PC Communication and Keyboard |
| RS485 | 1 Port, for PTZ Control |
| Electrical | |
| Power Supply | AC100V ~ 240V, 50 ~ 60 Hz |
| Power Consumption | NVR: < 13.7W(without HDD) |
| PoE: Max 25.5w for single port, 150w in total | |
| Environmental | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Construction | |
| Dimensions | 1.5U, 440mm×411.1mm×76mm, (17.3" x 16.2" x 3.0") |
| Net Weight | 4.7kg (10.4lb) (without HDD) |
| Gross Weight | 7.5kg(16.5 lb)(without HDD) |
