Model

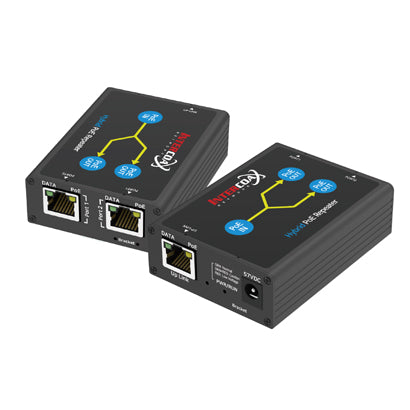

HPS-01: 2 Port Hybrid PoE Switch

Interface

Downlink

2 x RJ-45

Uplink

1 x RJ-45 – 10/100 Base-T with Auto-detect MDIX

Transmission Rate

100 Mbps Full Duplex

Transmission distance

Ethernet / PoE

Up to 100m - 10/100 Base-T

Up to 200m between devices – 10/100 Base-T

LED Indication

Data

3 x Data Link (Green)

PoE

3 x PoE Link (Amber)

PWR

1 x Input Power Quality

(Green: Normal/48VDC and more, Green+Red: Caution, Red : Power Shortage/38VDC and below)

Power Input

PoE

PoE Switch/NVR (Max. 25W)

DC

DC48V ~ 57V (Max. 70W)

Power Output

PoE

IEEE802.3af (PoE), IEEE802.3at (PoE+),

Extra PoE up to G0W with 57V Power Adaptor

Mechanical

Dimension

80.4(L) x G1.G(W) x 24(H) mm

Weight

102g

Environment

Operating Temp.

- 20 ~ G0 °C

Storage Temp.

- 30 ~ 80 °C

Relative Humidity

10% ~ 90%

Compliance

Certification

FCC, CE, KC, RoHS

Surge Protection

IEC G1000-4-5 4kV(1.2 / 50us), 2kV(8 / 20us)

Optional Accessories

57VDC / 1.2A External Power Supply
