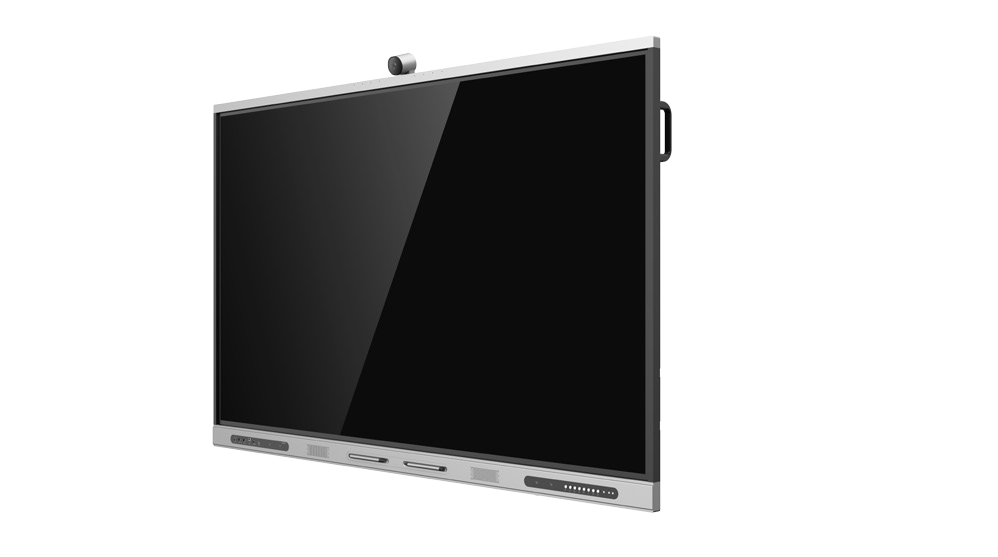

65 inch Smart interactive whiteboard
65 inch Smart interactive whiteboard
Model: GX-HN-IFDX65
Available in stock
Send a copy to email:
Open here
65'' UHD Pro for Edu Series Smart Interactive Flat Panel;
CPU：Quad-core A53 + Quad-core A73, 2.2GHz；
RAM：8GB；ROM： 64GB；
Android 11；
LCD Resolution：3840 (H ) × 2160 (V)；
Camera Resolution：48MP；
MIC：Built-in 8 array microphone
WiFi：Dual-band 2.4G/5G；
Power Supply：100–240 VAC, 50/60 Hz；
Power Consumption：120 W;
Couldn't load pickup availability
- 65-inch 4K DLED display with Zero Air Gap technology that
- delivers a clear image in sharp, vivid colors.
- Wireless screen sharing from multiple devices with an intuitive, easy-to-use system.
- 8 physical front buttons for quick access to functions.
- Multiple ports and front full-featured Type-C supports 65 W charging.
- Smooth writing experience that supports handwriting recognition.
- Quick file sharing by scanning a QR code, with easy file encryption for added privacy and security.
- Switches between Android and Windows, and OPS module is optional.
- Optional USB camera that takes photos in 48 MP resolution.
|
Technical Specification |
Built-in System
|
Operating System |
Android 11 |
|
CPU |
Quad-core A73 + Quad-core A53 |
|
CPU Frequency |
2.2GHz + 2.0GHz |
|
GPU |
ARM Mali-G52 MP8 (8EE) |
|
RAM |
8 GB |
|
ROM |
64 GB (optional 128 GB) |
LCD Panel
|
Panel Dimensions |
65 inch |
|
Backlight |
DLED |
|
Aspect Ratio |
16:09 |
|
Brightness |
400 cd/m² (typ.) |
|
Static Contrast |
VA: 4000 (typ.); IPS: 1200 (typ.) |
|
Resolution |
3840 × 2160 |
|
Viewing Angle |
178°(H) / 178°(V) |
|
Lifespan |
50,000 hours |
|
Display Color |
1.07 B/10 bit (8 bit + FRC) |
|
Response Time |
8ms (typ.) |
|
Refresh Rate |
60 Hz |
Plug-in Camera
|
Plug-in Camera |
48 MP |
|
Auto Control |
Auto white balance |
|
Distortion |
8.6% |
|
Max. Resolution |
3840 × 2160@30 fps |
|
Field of View |
H: 87°; V: 49°; D: 99° |
Device Ports
|
Light Sensor |
Yes |
|
Front Button |
8 buttons (power, home, menu, signal source, touch lock, curtain, volume, and annotation) |
|
Front Ports |
Type C × 1 (4K@60 Hz, Touch, 65 W) HDMI In × 1 (4K@60 Hz) USB 3.0 Type-B × 1 (Touch) USB 3.0 Type A × 2 Mic In × 1 (3.5 mm port) |
|
Rear Port |
Type C × 1 (4K@60 Hz, Touch, 15 W) HDMI In × 2 (4K@60 Hz) VGA In × 1 (1080p@60 Hz) DP In × 1 (4K@60 Hz) USB 3.0 Type-B × 3 (Touch) HDMI Out × 1 USB 3.0 Type A × 2 USB 2.0 Type A × 1 Micro USB × 1 RS-232 × 1 RJ-45 In × 1 RJ-45 Out × 1 Audio In × 1 (3.5 mm port, used to play sound with VGA) Audio Out × 1 (3.5 mm port) SPDIF Out × 1 (Optical port) OPS slot × 1 |
Function
|
IR Receiver |
Yes |
|
Bluetooth |
Bluetooth 5.2 |
|
Wi-Fi |
WIFI 5, 2.4 GHz/5 GHz; Integrated Wi-Fi 802.11 a/b/g/n/ac, supports PEAP/EAP-GTC authentication protocol within 802.l× |
|
Wireless Access Point |
WIFI 6, 2.4 GHz/5 GHz; Supports enabling hotspot and Wi-Fi at the same time |
Touchscreen
|
Touch Technology Type |
Infrared touch technology |
|
Attachment Method |
Zero Air Gap |
|
Response Time |
</=10 ms |
|
Touch Points |
Android: 32, Windows: 40 |
|
Touch Accuracy |
± 1 mm (0.04") (over 90% area) |
|
Valid Touch |
2 mm (0.08") |
|
Touch Height |
3 mm (0.12") |
|
Writing Mode |
Finger + Pen |
|
Communication Mode |
USB |
|
Anti-light Interference |
Anti-dazzle tempered glass |
|
Surface Hardness |
8H |
|
Touch Resolution |
32767 × 32767 |
Speaker
|
Built-in Speaker |
3 |
|
Power |
2.1 channel front-end: 2 × 15 W (Ma×.) Back-end: 20 W (Ma×.) |
|
Frequency |
20 kHz200 kHz |
Microphone
|
Microphone |
8-array |
|
Pick-up Distance |
6 m10 m (19.69 ft32.81 ft ) |
|
AGC |
Yes |
|
Echo Cancellation |
Yes |
|
Polar Pattern |
Omni-directional |
|
Intelligent Noise Filtering |
Yes |
General
|
Power Supply |
100240 VAC, 50/60 Hz |
|
Power Consumption |
65-inch: 120 W (typ.); 300 W (ma×.); 86-inch: 250 W (typ.); 500 W (ma×.) |
|
Standby Power Consumption |
</=0.5 W |
|
Operating Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
|
Storage Temperature |
10 °C to +50 °C (+14 °F to +122 °F) |
|
Operating Humidity |
10%90% (RH) |
|
Storage Humidity |
10%90% (RH) |
|
Product Material |
Metal |
|
Glass |
4 mm Anti-dazzle tempered glass |
|
Casing Color (Frame/Rear) |
Bottom/top: Silver; left/right: black; back: black |
|
Product Dimensions |
65-inch: 1,485.2 mm × 93.0 mm × 924.5 mm (58.47" × 3.66" × 36.40") 86-inch: 1,953.2 mm × 93.0 mm × 1,187.9 mm (76.90" × 3.66" × 46.77") |
|
Packaging Dimensions |
65-inch: 1,580.0 mm × 200.0 mm × 1030.0 mm (62.20" × 7.87" × 40.55") 86-inch: 2,050.0 mm × 200.0 mm × 1,310.0 mm (80.71" × 7.87" × 51.57") |
|
Net Weight |
65-inch: 42 kg (92.60 lb) 86-inch: 70 kg (154.33 lb) |
|
Gross Weight |
65-inch: 52 kg (114.64 lb) 86-inch: 85 kg (187.40 lb) |
|
Holes Distance |
65-inch: 500 mm × 400 mm (19.69" × 15.75") 86-inch: 800 mm × 400 mm (31.50" × 15.75") |
|
Installation |
Wall mount; mobile bracket |
|
Packing List |
Smart interactive whiteboard × 1 Power cord × 1 Passive stylus pen × 2 HDMI cable × 1 Quick start guide × 1 Wall mount bracket (already installed on the whiteboard) × 1 Accessory package × 1 Remote control × 1 Legal and Regulatory Information × 1 USB camera × 1 |
|
Certification |
|
|
Certifications |
FCC, IC, ROHS, REACH, WEEE |
