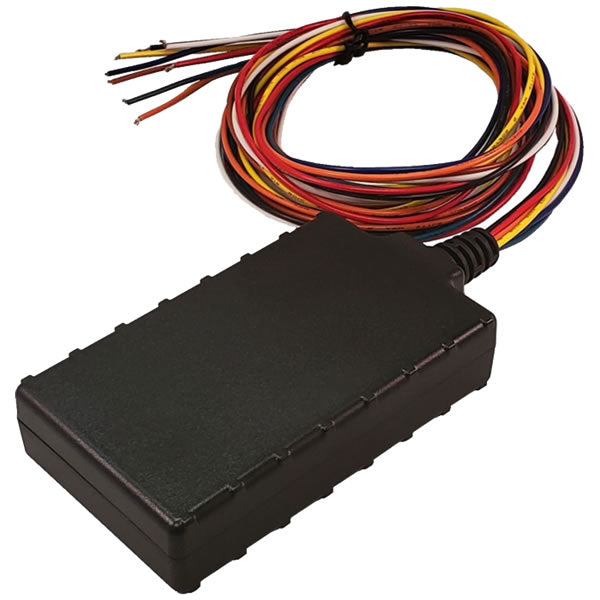

Galaxy IoT Real-time GPS Tracking Device (Monthly service fee extra: GX-GPS-SERVICE)
Galaxy IoT Real-time GPS Tracking Device (Monthly service fee extra: GX-GPS-SERVICE)
Model: GX-GPS-IOT1230
Regular price
$259.55
Sale price
$259.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
GX-GPS-IOT1230 is suitable for GPS Tracking and simple IOT solutions. Monthly service fee is required
Couldn't load pickup availability
- HSPA and/or GSM/GPRS Connectivity
- High Sensitivity GPS
- Built-in Antenna for Easy Installation
- Power Management and Sleep Modes
- Battery Operated/Powered
- Monthly service fee is required
| Environmental | |
| Temperature | -30deg. to +60deg. C (connected to primary power) -10deg. to +60deg. C (operating on internal battery) -20deg. to +25deg. C <= 6 months (long term storage with battery) |
| Humidity | 95% RH @ 50deg. C non-condensing |
| Shock and Vibration | U.S. Military Standard 202G, 810F SAE J1455 |
| ESD | IEC 61000-4-2 (4KV test) |
| Connectors/SIM Access | |
| GPS Antenna | Internal |
| Cellular Antenna | Internal |
| Certifications | |
| Industry Certifications | FCC, IC, PTCRB |
| Device Management | |
| PULS | Monitor, manage, upgrade fi rmware, confi gure and troubleshoot devices remotely |
| Cellular/Network | |
| North American Variant I | LTE Cat M1 1900 (B2)/AWS 1700 (B4)/700 (B12)* MHz |
| North American Variant II | LTE Cat M1 AWS 1700 (B4)/700 (B13) MHz |
| Satellite Location (GNSS) | |
| Constellation Support | GPS, GLONASS, SBAS Engine (WAAS, EGNOS, MSAS, GAGAN) |
| Channels | 55 Channel |
| Tracking Sensitivity | -167 dBm |
| Acquisition Sensitivity | -157 dBm (hot start) -148 dBm (cold start) |
| Location Accuracy | ~2.0m CEP Open Sky (GPS SBAS 24 hours static) |
| Location Update Rate | 1 Hz |
| AGPS | Location assistance capable |
| Electrical | |
| Operating Voltage | 12/24 VDC Vehicle Systems |
| Power Consumption | Typical 750 uA @ 12V (deep sleep) Typical 12 mA @ 12V (radio-active sleep/idle) Typical 40 mA @ 12V (active tracking w/GPS and cell enabled) |
| Physical/Design | |
| Dimensions | 2.10 x 3.80 x .77" (53.4 x 96.6 x 19.5 mm) |
| Weight | 3.95 oz. (112 g) |
| Battery Pack | |
| Battery Capacity | 200 mAh |
| Battery Technology | Lithium-Ion |
| Charging Temperature | 0deg. to +45deg. C |
| General | |
| Data Support | SMS, UDP Packet Data |
| Product Options | CalAmp Telematics Cloud API |
| Accelerometer | Built-in, triple-axis (motion sensing, tilt detection) |
| Comprehensive I/O | |
| Ignition Input | 1 fixed bias |
| Digital Inputs | 2 (high/low selectable 0-32 VDC) |
| Digital Outputs | 3 (open collector relay 150mA) |
