Model: GX-FV-3543-4
Available in stock
Send a copy to email:
Open here
Thermal imaging for temperature monitoring,
400×300 resolution,
0º to 550º C analysis range,
Up to 8 user-defined alarm zones,
Optional cooling and air curtain accessories,
PoE
Couldn't load pickup availability

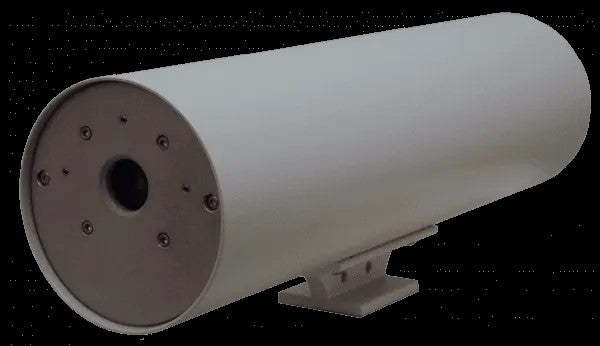

The GX-FV-3543-4 Thermal IP Network Camera is a compact LWIR camera for temperature monitoring applications.
At its core is a 400×300 uncooled vanadium oxide-based microbolometer sensor array. A variety of lens options are available, providing 46, 26, or 8 degrees field of view.
In conjunction with the IVC Alarm Server Software, the camera provides digital output for over-temperature indications within the camera’s field of view.
Up to 8 temperature user-defined zones can be configured. A zone may be a spot, area, or line. Within each zone, the camera may be programmed to alarm on:
- Over Temperature
- Temperature Difference
The GX-FV-3543-4 is housed in an industrial IP66 enclosure with optional lens cleaning and cooling options. The camera is ready for mounting and requires power and an Ethernet connection.
| Imager | 400x300 VOx microbolometer |
| Spectral Range | 8-14 ?m |
| Pixel Pitch | 17 ?m |
| Thermal Sensitivity | NetD <40mk |
| Focus | Manual Focus |
| View Angle | See ordering information below |
| F-number | See ordering information below |
| Thermal Range | 0° C to 550° C |
| Thermal Accuracy | ±2° C / ±2% |
| Detection Zones | 8 programmable |
| Protocols | IPv4/IPv6, HTTP, RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, 802.1x, ONVIF |
| Ethernet | 100Base-TX/10BaseT (RJ-45) |
| Compression | M-JPEG, H.264 |
| Frame Rate | 30 FPS |
| Voltage Required | PoE (802.3af) |
| Power Consumption | 5 W |
| Weight | 5.97 lbs. |
| Operating Temperature | -39° C to 50° C |
| Dimensions | 4.25 D x 16 L |
| Mount Wall | mount standard |
| Enclosure Rating | IP66, NEMA 4 |
| Certifications | CE/FCC |
