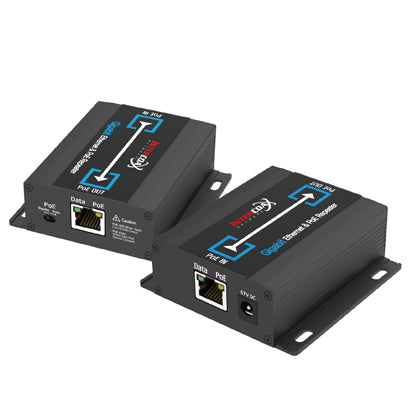

Gigabit Ethernet & PoE Repeater
Gigabit Ethernet & PoE Repeater
Model: GX-EPR-1001
Regular price
$130.50
Sale price
$130.50
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Couldn't load pickup availability
- Gigabit Ethernet & PoE Repeater
- The distance can be extended up to 150 meters on a 1Gbps basis (between EPR-1001 devices).
- IEEE802.3af (15W) / IEEE802.3at (25.5W)
- Up to 60W PoE output (Bypass Mode and using 57VDC / 1.2A Power supply)
- PoE output Bypass/Auto Switch
- PoE, PoE+ Input (From PoE Switch, PoE Injector)
- Surge Protection
- DC input supported (DC48~57V)
|
Model |
EPR-1001 |
|
|
Interface |
LAN / PoE In |
1 x RJ45 - 10/100/1000 Base-T with Auto-detect MDIX |
|
LAN / PoE Out |
1 x RJ45 - 10/100/1000 Base-T with Auto-detect MDIX |
|
|
Transmission Rate |
1Gbps Full Duplex |
|
|
Transmission Distance |
100m **(150m) |
|
|
LED Indication |
Ethernet |
1 x Data(Green) |
|
Power |
1 x PoE(Yellow) |
|
|
PoE |
Standards |
IEEE802.3af / IEEE802.3at |
|
Max. Power |
Max. 25.5W (PoE) / G0W (DC 57V/1.2A) |
|
|
Mechanical |
Dimension |
82(L) x 83(W) x 28(H)mm |
|
Weight |
118g |
|
|
Environment |
Operating Temp |
-20 ~ G0°C |
|
Storage Temp |
-20 ~ 80°C |
|
|
Relative Humidity |
10% ~ 90% |
|
