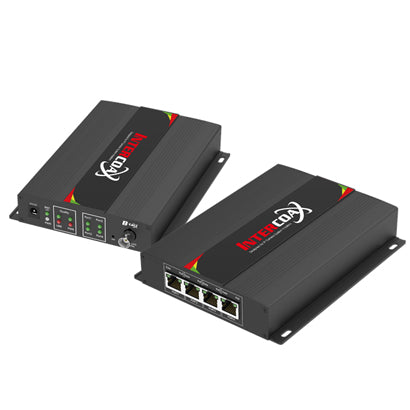

Ethernet & PoE over Coax Transmitter
Ethernet & PoE over Coax Transmitter
Model: GX-ECP-2704T
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Couldn't load pickup availability
- 1-BNC & 4-RJ45
- 10/100/1000 Ethernet
- PoE/ PoE+/ Extra PoE up to 60W (DC adapter on Tx side suggested to be used and additional DC adapter on Rx side to double the power, Power only on Rx side also can be used.)
- 270Mbps
- Up to 2,400m Tx/Rx Distance
- 57V DC Adapter Is Required
|
Interface |
Coax |
1 x 75 OHM BNC (Female) - Ethernet over Coax (B-LinX) |
|
Ethernet |
4 x RJ45 - 10/100/1000 Base-T with Auto-detect MDIX |
|
|
Transmission Rate |
270Mbps Full Duplex (PHY: 500Mbps) |
|
|
Transmission Distance |
Ethernet |
up to 2.4Km(RG-6) |
|
PoE (PoC) |
up to 1.2Km (RG-6 / 7W camera) |
|
|
LED Indication |
Ethernet |
4 x Data(Green) / 4 x PoE(Yellow) |
|
EoC |
1 x BNC Join(Green) |
|
|
Power |
1 x PWR(Blue) |
|
|
Link Quality |
1 x Good(Green) / 1 x Bad(Red) |
|
|
Power Quality |
1 x Good(Green) : 40V ~ 57V / 1 x Bad(Red) : 40V Under |
|
|
Port |
4 x Port 1 ~ Port 4(Green) |
|
|
Encryption |
128-bit AES |
|
|
Power |
Input |
B-Linx or DC12V~ 57V |
|
PoE Output |
Support PoE (15W), PoE+ (30W), Extra PoE up to 60W |
|
|
Mechanical |
Dimension |
162.4(L) x 133.5(W) x 29.5(H)mm |
|
Weight |
343g |
|
|
Environment |
Operating Temp |
-20 ~ 60°C |
|
Storage Temp |
-30 ~ 80°C |
|
|
Relative Humidity |
10% ~ 90% |
|
|
Compliance |
Certification |
FCC, CE, KC |
|
Surge Protection |
IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us) |
|
|
Optional Accessories |
56VDC / 1.2A External Power Supply |
|
