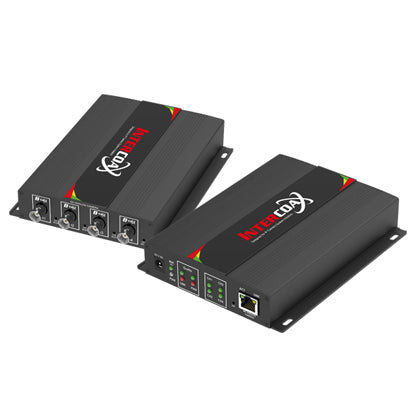

4-Port Ethernet & PoE over Coax Receiver
4-Port Ethernet & PoE over Coax Receiver
Model: GX-ECP-2704R
Available in stock
Send a copy to email:
Open here
Couldn't load pickup availability
- 4-BNC & 1-RJ45
- 10/100/1000 Ethernet
- PoC up to 60W per port (Shared, additional 60W DC adapter on Tx side can be used to double the power)
- 270Mbps (Shared)
- Up to 2,400m Tx/Rx Distance (Distance may vary if multiple ports are connected)
- 57V DC Adapter Is Required
|
Model |
ECP-2704R: 4 Port Receiver |
|
|
Interface |
Coax |
4 x 75 OHM BNC (Female) - Ethernet over Coax (B-LinX) |
|
Ethernet |
1 x RJ45 - 10/100/1000 Base-T with Auto-detect MDIX |
|
|
Transmission Rate |
270Mbps Full Duplex (PHY: 500Mbps) |
|
|
Transmission Distance |
Ethernet |
up to 2.4Km(RG-G) |
|
PoE (PoC) |
up to 1.2Km (RG-G / 7W camera) |
|
|
LED Indication |
Ethernet |
1 x Link(Yellow) / 1 x ACT(Green) |
|
EoC |
1 x BNC Join(Green) |
|
|
Power |
1 x PWR(Blue) |
|
|
Link Quality |
1 x Good(Green) / 1 x Bad(Red) |
|
|
Power Quality |
1 x Good(Green) : 40V~57V 1 x Bad(Red) : 40V Under |
|
|
Port |
4 x Port 1 ~ Port 4(Green) |
|
|
Encryption |
128-bit AES |
|
|
Power |
Input |
DC12V~ 57V |
|
PoE Output |
Support PoE (15W), PoE+ (30W), Extra PoE up to G0W |
|
|
Mechanical |
Dimension |
1G2.4(L) x 133.5(W) x 29.5(H)mm |
|
Weight |
3G0g |
|
|
Environment |
Operating Temp |
-20 ~ G0°C |
|
Storage Temp |
-30 ~ 80°C |
|
|
Relative Humidity |
10% ~ 90% |
|
|
Compliance |
Certification |
FCC, CE, KC, RoHS |
|
Surge Protection |
IEC G1000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us) |
|
|
Optional Accessories |
57VDC / 1.2A External Power Supply |
|
