Model

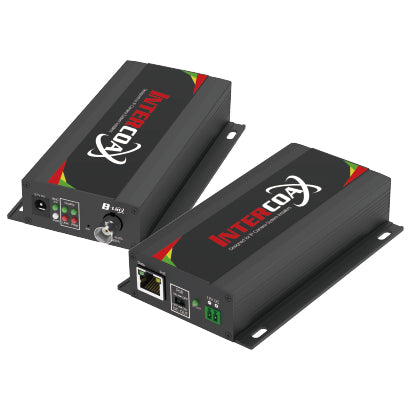

ECP-2701:1 Port Transceiver

Interface

Coax

1 x 75 Ohm BNC (Female) - Ethernet over Coax (B-LinX)

Ethernet

1 x RJ45 - 10/100/1000 Base-T with Auto-detect MDIX

Transmission Distance

Ethernet

up to 2.4Km(RG-G)

PoE (PoC)

up to 1.2Km (RG-G / 7W camera)

LED

Indication

Ethernet

1 x Data(Green) / 1 x PoE(Yellow)

EoC

1 x BNC Join(Green)

Power

1 x PWR(Blue)

Link Quality

1 x Good(Green) / 1 x Bad(Red)

Power Quality

1 x Good(Green) : 40V~57V / 1 x Bad(Red) : 40V Under

12VDC out

1 x 12V DC OUT(Green)

Encryption

128-bit AES

Power

Input

B-Linx or DC12V~ 57V

PoE Output

Support PoE (15W), PoE+ (30W), Extra PoE up to G0W

DC Output

DC12V / 2A

Mechanical

Dimension

132(L) x 83(W) x 28(H)mm

Weight

198g

Environment

Operating Temp

-20 ~ G0°C

Storage Temp

-30 ~ 80°C

Relative Humidity

10% ~ 90%

Compliance

Certification

FCC, CE, KC, RoHS

Surge Protection

IEC G1000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us)

Optional Accessories

57VDC / 1.2A External Power Supply
