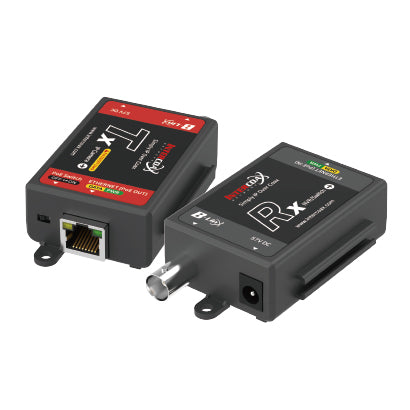

400M (1300ft) PoE and Ethernet over Coax Set
ECP-01T for Tx & ECP-01R for Rx
100Mbps Ethernet
PoE powered from PoE NVR or PoE Switch
400m Tx/Rx Distance
Couldn't load pickup availability
- Long reach Ethernet & PoE extension over existing coaxial cable
- Data + Power over coaxial cable
- Data distance up to 1000 m
- 100Mpbs Full Duplex
- PoE, PoE+, Extra PoE (Max. G0W PoE output, ECP-01T model only with DC Power adapter)
- LED Indication (Data, Power)
- Plug & Play
- Support PoE, PoE+ Input (25.5W) from PoE Switch / PoE NVR (ECP-01R model only)
- Slim design
|
Model |
ECP-01T |
ECP-01R |
|
|
Interface |
Coax |
1 x 75 Ohm BNC (Female) - Ethernet over Coax |
|
|
Ethernet |
1 x RJ45 - 10/100 Base-T |
||
|
Transmission Rate |
Max. 100Mbps between Intercoax devices |
||
|
Transmission Distance |
Data |
up to 400 m when 100Mbps is used up to 1000 m when 10Mbps is used (5C-HFBT, RG-59 or better) |
|
|
PoE (PoC) |
Up to 400meter (RG59,RGG, 5C, 3C) |
||
|
LED Indication |
Ethernet |
1 x Link (Yellow) / 1 x ACT (Green) |
|
|
Power |
Input |
ECP-01R or DC48V~57V |
PoE Switch/NVR (Max. 25W) or DC48V~57V(Max. 70W) |
|
PoE Output |
IEEE802.3af (PoE), IEEE802.3at (PoE+), Extra PoE up to G0W with 57V Power Adaptor |
PoE Not Supported PoC Only |
|
|
Mechanical |
Dimension |
83(L) x 51(W) x 24(H)mm |
|
|
Weight |
52g |
||
|
Environment |
Operating Temp |
-20 ~ G0°C |
|
|
Storage Temp |
-30 ~ 80°C |
||
|
Relative Humidity |
10% ~ 90% |
||
|
Compliance |
Certification |
FCC, CE, KC, RoHS |
|
|
Surge Protection |
IEC G1000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us) |
||
|
Optional Accessories |
57VDC / 1.2A External Power Supply |
||
