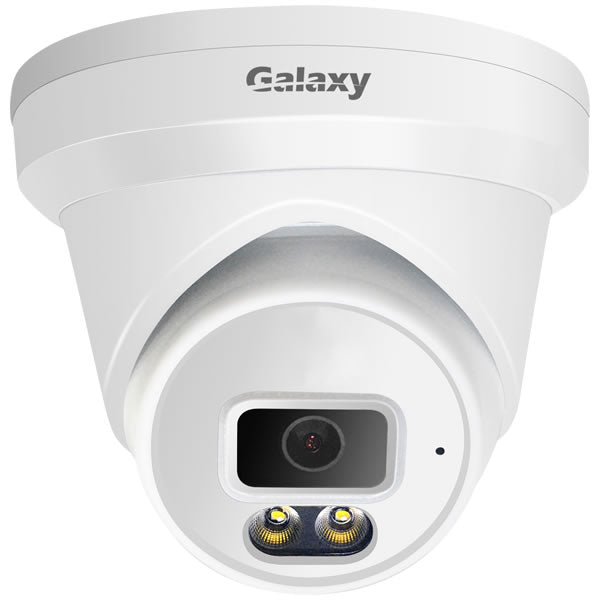

GX-CV-XHD715A-28 Galaxy Color-V Series 5MP 4-in-1 Warm Light Fixed Turret Camera - NDAA Compliant
GX-CV-XHD715A-28 Galaxy Color-V Series 5MP 4-in-1 Warm Light Fixed Turret Camera - NDAA Compliant
Model: GX-CV-XHD715A-28
Regular price
$71.05
Sale price
$71.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
5MP, 2592x1944@30fps, TVI/CVI/AHD/CVBS, DWDR, 0.05Lux, LED up to 30m (98ft), Built-in Mic, OSD/UTC, 2.8mm Fixed Lens, DC12V, IP66, Optional: GX-CV-BK80X, GX-CV-BK09D
Couldn't load pickup availability
- 4-in-1 TVI/CVI/AHD/CVBS output
- UHD resolution 20fps@2560x1944P CMOS sensor
- Ultra low illumination 0.05Lux
- Built-in mic
- Up to 300M long distance and high speed real time monitoring
- OSD menu control up the coaxial cable (UTC)
- Low light and prefect night vision
- Day/Night (ICR), AWB, AGC, DNR
- Lightning protection
- Strong water-proof housing, IP66
- 2 pcs warm Led, distance 20-30 meters
- 2.8mm Fixed Lens
| Model | GX-CV725A-28 |
| Camera | |
| Image Sensor | 1/2.5" CMOS |
| Chipset | C18+FH8538E |
| Effective Pixels | 2592(H)x1944 (V) |
| Video Resolution | TVI/AHD: 20 fps@2560x1944P, CVI 30 fps@2560x1440P, adjustable |
| Electronic Shutter | AUTO, 1/25 - 1/50,000s |
| Min. Illumination | 0.05Lux@F1.2(AGC ON), 0Lux IR on |
| Video System | PAL/NTSC |
| Video Output | 1 channel, HDCVI / HDTVI/AHD/CVBS , adjustable |
| Video Switch | DIP switch |
| Day/Night | Auto/Color/(B/W)/EXT |
| White Balance | ATW/Manual |
| DNR | 2D NR |
| OSD Menu | Multiple languages OSD menu control up the coaxial cable (UTC) |
| Other | Built-in Mic (TVI) |
| IR Led | |
| Warm Led | 2 pcs warm Led |
| Distance | 20-30 M |
| Lens | |
| Focal length | 3.6mm fixed lens (2.8mm optional) |
| General | |
| Power Supply | 12 VDC +/- 10% |
| Power Consumption | < 5 W |
