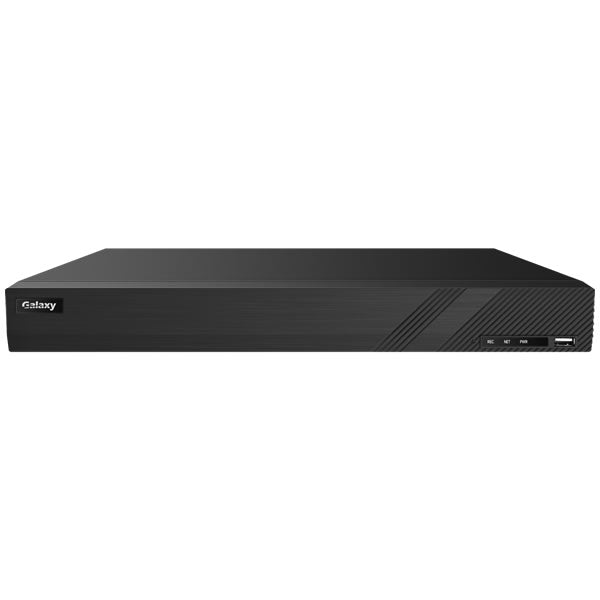

Galaxy Color-V 9 Series 16CH 16MP POE NVR / 2 SATA / NDAA / 160Mbps Input Bandwidth
Galaxy Color-V 9 Series 16CH 16MP POE NVR / 2 SATA / NDAA / 160Mbps Input Bandwidth
Model: GX-CV-NVR9216-P16N
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Couldn't load pickup availability
- Support 16CH 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P / 960H / DI / CIF IP video input
- Adopt standard H.265 and H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timed / motion / sensor / POS / AI recording
- Playback : 16 CH simultaneous playback
- Search : time slice, time, event, tag, smart search
- Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
- Support POS information overlay on live view and playback
- Express and flexible backup via USB, network and so on
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web or CMS : preview, playback, backup, PTZ and configuration
- 16 PoE network ports; IPC can be directly connected to NVR; PoE power supply supported
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Support NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Android OS
|
System |
OS |
Embedded Linux |
|
Video |
Network Input |
16CH IPC input |
|
Network Input Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
|
Output |
HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 |
|
|
VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 |
||
|
Screen Display Mode |
1/4 /6/8/9/13/16 |
|
|
Compression |
H.265S /H.265+ / H.265 / H.264 |
|
|
Audio |
Network Input |
16 CH IPC audio input |
|
Local Input |
RCA × 1 (for two-way audio) |
|
|
Local Output |
RCA × 1 |
|
|
Compression |
G.711(U/A) |
|
|
Record |
Resolution |
8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
Frame Rate |
NTSC:30fps; PAL:25fps |
|
|
Playback |
Simultaneous Playback |
Max.16 CH |
|
Search |
Time slice / time / event / tag / smart search |
|
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, |
|
|
different colors refers to different record events |
||
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
|
|
Decoding Capability |
Live View/ Playback |
1×8MP@30fps; 6×1080P@30fps |
|
Alarm |
Mode |
Manual, sensor, motion, exception, smart events |
|
Input |
Supports IPC alarm input |
|
|
Output |
Supports IPC alarm output |
|
|
Triggering |
Record, snap, preset, e-mail, etc. |
|
|
Network |
Interface |
RJ 45 × 1 (10/100/1000Mbps) |
|
Protocol |
TCP / IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, SMTP, HTTPs, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP, ONVIF |
|
|
Incoming/ Outgoing Bandwidth |
160/160 (Mbps) |
|
|
*When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR. |
||
|
Client Connection |
Max. 64 users access |
|
|
Face |
Face Detection Performance (AI by IPC) |
16 CH |
|
Face Detection Performance (AI by Device) |
2 CH |
|
|
Face Match Performance |
No |
|
|
Statistical Graph of Information |
Bar graph |
|
|
Statistical Mode of Information |
Statistics by day, week, month, quarter as well as customized time period |
|
|
Video Structure Analysis |
Human/Vehicle Classification(AI by IPC) |
16 CH |
|
Human/Vehicle Classification(AI by Device) |
2 CH |
|
|
Human/Vehicle Attribute Analysis |
Yes (AI by IPC) |
|
|
Other Functions |
Fisheye |
Supports fisheye dewarping via Web Client and mobile APP |
|
Plate Recognition (AI by IPC) |
Yes |
|
|
Mobile Device |
OS |
iOS, Andriod |
|
Storage |
HDD Interface |
SATA3.0 × 2, max 10T |
|
Backup |
Local Backup |
U disk, USB mobile HDD |
|
Network Backup |
Yes |
|
|
Port |
USB |
USB 2.0 × 2 |
|
Remote Controller |
Optional |
|
|
PoE |
PoE Ports |
100M RJ45 × 16 |
|
Standards |
IEEE802.3AF/AT |
|
|
Output Power |
</= 150W |
|
|
Others |
Power Supply |
DC 48V/3.75A |
|
Consumption |
</= 10W ( without HDD ) |
|
|
Dimensions (mm) |
380 × 268× 45 ( W × D × H ) |
|
|
Working Environment |
-10~50 °C, 10% ~ 90% humidity |
|
|
Certificate |
CE, FCC |
|
|
Environmental Protection |
Complies with Directive EU RoHS, REACH and WEEE |
