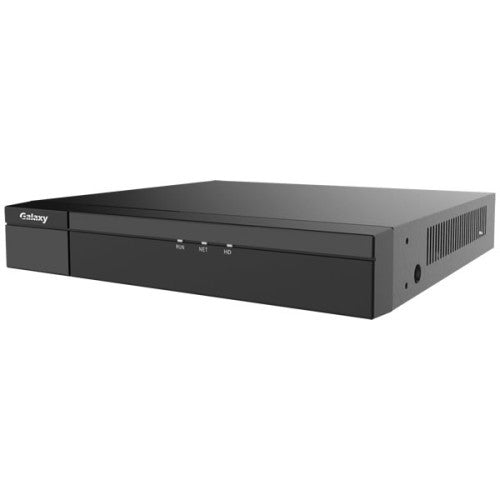

NDAA Galaxy Color-V Series Ultra H.265 8CH 4K/8MP POE Lite NVR with 2TB HDD Included
NDAA Galaxy Color-V Series Ultra H.265 8CH 4K/8MP POE Lite NVR with 2TB HDD Included
Model: GX-CV-NVR8108-P8N+2TB
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
4K HDMI/VGA simultaneous / Audio / 80M Input / Support 1 SATA HDD up to 6TB / Cloud Upgrade / 1 RJ-45 10M/100M / 4CH VCA
Couldn't load pickup availability
- Support Ultra 265/H.265/H.264 video formats
- 4/8-channel input
- Plug & Play with 4/8 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD up to 6TB
- Support cloud upgrade
Model | GX-CV-NVR8104-P4N | GX-CV-NVR8108-P8N |
Video/Audio Input | ||
IP Video Input | 4-ch | 8-ch |
Network | ||
Incoming Bandwidth | 40Mbps | 50Mbps |
Outgoing Bandwidth | 40Mbps | 40Mbps |
Remote Users | 128 | |
Protocols | P2P, UPnP, DHCP | |
Video/Audio Output | ||
HDMI/VGA Output | HDMI: 3840x2160/30Hz , 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
Audio Output | 1-ch, RCA | |
Recording Resolution | 8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF | |
Synchronous Playback | 4-ch | 8-ch |
Corridor Mode Screen | 3/4 | 3/4/5/7/9 |
Decoding | ||
Decoding format | Ultra 265/H.265/H.264 | |
Liveview/Playback | 8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF | |
Capability | 1 x 8MP@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 | |
Hard Disk | ||
SATA | 1 SATA interface | |
Capacity | up to 6TB for each disk | |
External Interface | ||
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
USB Interface | Rear panel: 2 x USB2.0 | |
PoE | ||
Interface | 4 RJ45 10M/100M self-adaptive Ethernet Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface |
Max Power | Max 30W for single port Max 54W in total | Max 30W for single port Max 75W in total |
Supported Standard | IEEE 802.3at, IEEE 802.3af | |
General | ||
Power Supply | 48V DC Power Consumption: </= 9 W (without HDD) | 52V DC Power Consumption: </= 9 W (without HDD) |
Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity </= 90% RH (non-condensing) | |
Dimensions (W×D×H) | 260mm × 243mm × 46mm (10.2" × 9.6" × 1.8") | |
Weight (without HDD) | </= 1.2kg (2.65 lb) | |
