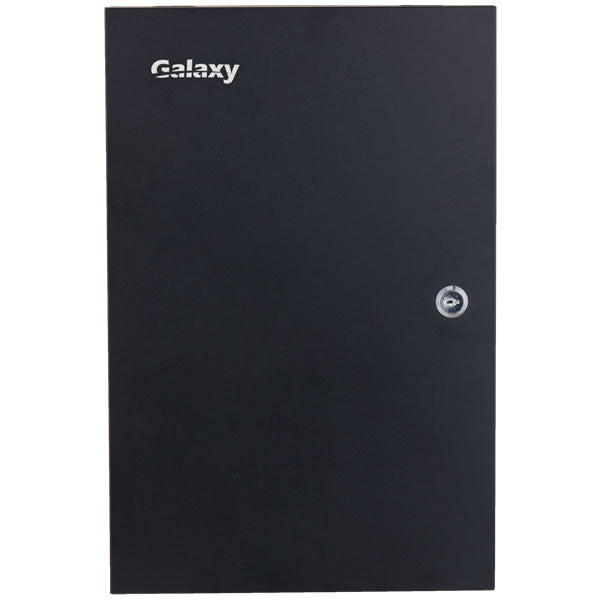

Galaxy Hunter Series Four Door two-way Access Controller
Galaxy Hunter Series Four Door two-way Access Controller
Model: GX-ASC4204C-D
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Couldn't load pickup availability
> Adopts Linux and comes with a webpage.
> Supports 100,000 users, 100,000 passwords, 100,000 cards, 10,000 fingerprints, and 500,000 access records.
> Supports multiple unlock methods including card, password, fingerprint and QR code. You can also combine them to create your own personal unlock methods.
> Supports RS-485 card reader and Wiegand card reader.
> Offers multiple types of alarms such as duress, tamper, intrusion, unlock timeout, excessive use of illegal card, mains electricity power failure and undervoltage.
> Supports anti-passback, multi-door interlock, multi-person unlock, first-card unlock and remote verification.
> Supplies power to 4 locks (12 V, 1.2 A or lower) and 8 card readers (12 V, 500 mA or lower) at the same time.
> Supports charging and discharging the battery. The battery is sold separately, but a space was reserved for it that is 157 mm × 127 mm × 75 mm (6.18" × 5.00" × 2.95") (L × W × H).
> Features the fire alarm linkage. The device must be connected to the alarm input port and the corresponding linkage must be configured.
> Fire safety control linkage can be accessed through the independent port.
> Supports TCP/IP connection, auto registration, P2P registration and DHCP.
> Compatible with the platforms of SmartPSS Lite, DSS Pro and DMSS.
|
System |
|
|
Main Processor |
Embedded Processor |
|
Network Protocol |
IPv4;UDP;P2P;IPv6;TCP |
|
OSDP Protocol |
Yes |
|
Interoperability |
ONVIF PROFILE C |
|
SDK |
Yes |
|
API |
Yes |
|
Basic |
|
|
Product Type |
Controller |
|
Buzzer |
Yes |
|
Casing Material |
SGCC galvanized |
|
Function |
|
|
Verification Method |
Card;Password;Fingerprint;Remote;QR Code |
|
Period List |
128 groups |
|
Holiday Period |
128 groups |
|
Network Update |
Yes |
|
First User Unlock |
Yes |
|
Remote Verification |
Yes |
|
Restricted List/Trusted List |
Yes |
|
Peripheral Card Reader |
Supports 8-channel RS-485 card readers and 8-channel Wiegand card readers. |
|
Multi-door Interlock |
Yes |
|
Multi-user Authentication |
Yes |
|
Real-time Monitoring |
Yes |
|
Multi-factor Authentication |
Yes |
|
Web Configuration |
Yes |
|
Unidirectional or Bidirectional |
Bidirectional |
|
User |
|
|
User (Card) Type |
General user, VIP user, patrol user, guest user, blocklist user, other users, custom user 1 and custom user 2 |
|
Capacity |
|
|
User Capacity |
100,000 |
|
Fingerprint Capacity |
10,000 |
|
Card Capacity |
100,000 |
|
Record Capacity |
500,000 |
|
Port |
|
|
RS-485 |
9 ports. 8 for card readers, and the remaining 1 is for the extension port. |
|
Wiegand |
8-channel input |
|
Network Port |
1 RJ-45, 10 Mbps/100 Mbps self-adaptive |
|
Alarm Input |
5 channels. |
|
Alarm Output |
4 channels; expandable to 8 channels when connected to an external alarm module. |
|
Alarm Linkage |
Yes |
|
Exit Button |
4 channels |
|
Door Status Detection |
4 channels |
|
Lock Control |
4 channels |
|
Alarm |
|
|
Anti-pass Back |
Yes |
|
Tamper Alarm |
Yes |
|
Duress Alarm |
Yes |
|
Door Sensor Timeout |
Yes |
|
Intrusion |
Yes |
|
Illegal Card Exceeding Threshold |
Yes |
|
Duress Fingerprint |
Yes |
|
General |
|
|
Power Supply |
Switching power supply (AC to DC, AC 100240 V 1.4 A; DC 12 V 6 A) |
|
Power Consumption |
</= 3 W; it might alter if other devices are connected |
|
Product Dimensions |
397.6 mm × 262.6 mm × 82.8 mm (15.65" × 10.34" × 3.26") (L × W × H) |
|
Packaging Dimensions |
473 mm × 353 mm × 162 mm (18.62" × 13.90" × 6.38") (L × W × H, 1 in inner carton) |
|
Operating Temperature |
30 °C to +60 °C (22 °F to +140 °F) |
|
Operating Humidity |
5%95% (RH), non-condensing |
|
Operating Environment |
Indoor |
|
Gross Weight |
4.0 kg (8.82 lb) |
|
Installation |
Surface Mount |
