GX-APTZ-3045-04 Rugged PTZ HD Color Analog Camera
GX-APTZ-3045-04 Rugged PTZ HD Color Analog Camera
Model: GX-APTZ-3045-04
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
Rugged outdoor 30x PTZ camera,
316L stainless steel,
Designed for environments classified as hazardous,
Certified Class I Division 1
Couldn't load pickup availability

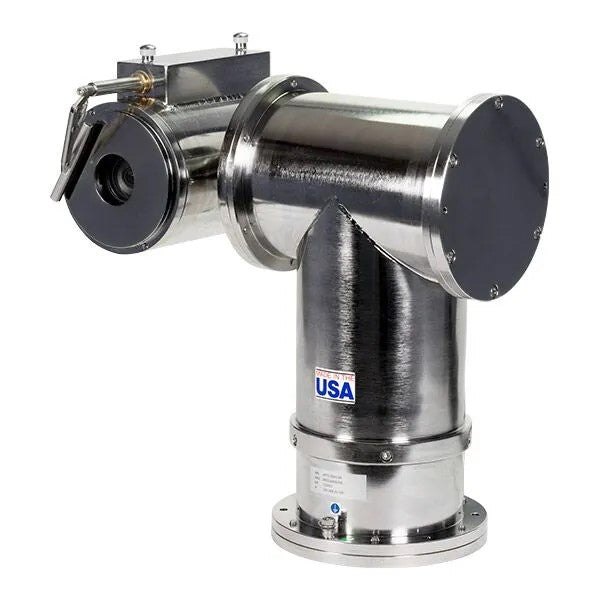

The GX-APTZ-3045-04 is a high quality, high-resolution color video camera with outstanding low-light performance. It has a 36x motor-driven optical zoom. This PTZ camera is a high-performance, low-light camera that automatically switches to black and white and removes an IR cut filter to increase sensitivity in low light conditions.
The camera is housed in a stainless-steel enclosure certified for Class I Division 1, groups B, C, and D. IP connection requires a separate encoder.
| Minimum Illumination |
0.7 Lux (Color) 0.01 Lux (B/W) |
View Angle | 1.7° - 57.8° |
| White Balance | Auto | Video Output | 1.0Vp-p; 75? on BNC |
| Iris | Auto | Protocol | Pelco-D |
| Focus | Auto and manual | Resolution | 530 TVL |
| Exposure | Auto | Frame Rate | 50 Hz |
| Focal Length | 3.4 - 122.4 mm | Weight | 48.5 lbs. |
| F-number | 1.6 - 4.5 | Current | 500mA |
| Zoom ratio | 36x Optical | Voltage Required | 90 - 240 VAC, 50/60 Hz |
| Pan Angle | 360° | Operating Temperature | -25° to 50° C |
| Pan Speed | 45° Per Second | Mount | Pedestal |
| Dimensions | 15.73" H x 13.97" W x 10.31" D | Approvals | Class I Division 1 Groups B, C, & D T6 Tamb +50°C (+122°F) |
| Protection Class | NEMA TYPE 4 |
