Model: GX-AMZ-HD41-3
Available in stock
Send a copy to email:
Open here
3 MP IP video,
4x motorized zoom,
Integrated IR illuminators,
12 VDC; PoE,
Wide dynamic range,
Certified for use in hazardous areas
Couldn't load pickup availability

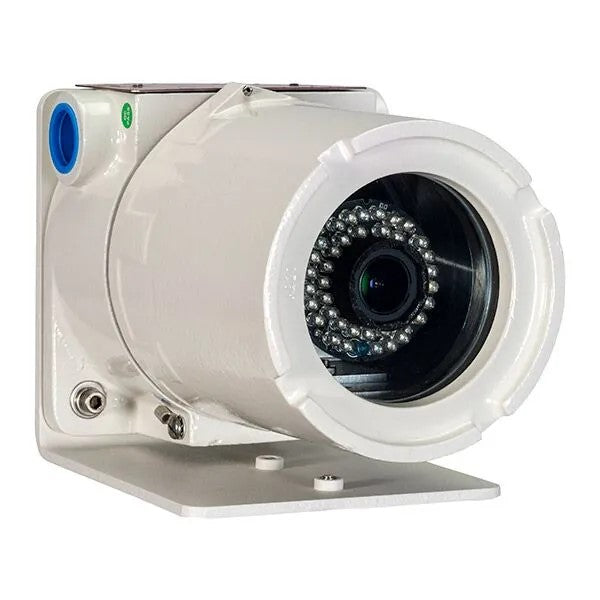

The GX-AMZ-HD41-3 is a high quality, high-definition, color video camera. This compact camera provides 4x motor-driven optical zoom and delivers 3 MP HD video, up to 30 frames per second. The zoom functions can be controlled automatically and precisely from anywhere using the features of IVC’s camera management software. In addition, the camera has a wide dynamic range to increase sensitivity and improve images in varying lighting conditions.
The camera is housed in a heavy-duty, cast-aluminum, weatherproof enclosure suitable for hostile environments and is certified for use in hazardous areas. A 316L stainless steel enclosure option is also available
| Imager | Sony 1/2.8 3.23 MP Progressive Scan CMOS | Compression | H.264, MJPEG |
| Resolution | 2048 x 1536 | Protocols | TCP/IP, HTTP, FTP, SMTP |
| Shutter | 1 to 1/10,000 Seconds | Weight | 8.1 lbs. (Aluminum Enclosure) 10.2 lbs. (Stainless Steel Enclosure) |
| Minimum Illumination | Color 0.15 lux BW 0.09 lux | Voltage Required | (See ordering information) |
| WDR | Digital WDR (ATR-EX) | Power Consumption | 1.2A @12 VDC 0.3A @ 48 VDC (PoE) |
| Image Features | Auto Exposure, Auto White Balance, Auto and Manual Iris, Back Light Compensation | Operating Temperature | -29° to 60° C -10° to 60° C (PoE version) |
| Focus | Auto | Storage Temperature | -35° to 65° C |
| Zoom Ratio | 4x | Dimensions | 5.50 H x 5.50 W x 7.75 D (Aluminum) 5.50 H x 5.50 W x 8 D (Stainless Steel) |
| View Angle | H103° x V74.4° ~ H30.8° x V23.3° | Mount | Wall Mount Standard |
| Focal Length | 2.8 12mm | Protection Class | NEMA Type 4x, IP66 |
| F-number | 1.4 ± 5% | Regulatory Approvals | |
| Network | 10/100 BASE-T (RJ-45) | Safety | Conforms to UL STD 61010-1 + UL1203 Certified to CSA STD CSA22.2 NO.30 + CAN/CSA C22.2 No. 25 EN 60079-0:2012+A11:203, EN 60079-1:2007, EN 60079-31:2014. ATEX 2014/34/EU. |
| Frame Rate | 30 FPS | Hazardous Area | Class I, Division 1, Groups B-D, Class II, Division 1, Groups E-G, II 2 GD Ex db IIC T6 Gb, II 2 GD Ex tb IIC T80°C Db IP66 |
