GX-AMZ-3041-2 Rugged, HD, Color, Video Camera(Housed in a heavy-duty cast aluminum)
GX-AMZ-3041-2 Rugged, HD, Color, Video Camera(Housed in a heavy-duty cast aluminum)
Model: GX-AMZ-3041-2
Available in stock
Send a copy to email:
Open here
Indoor/outdoor fixed camera,
-40° to 60° range of operation,
12 VDC, 24 VDC, 24 VAC versions,
Wide dynamic range,
Certifed for use in hazardous areas
Couldn't load pickup availability

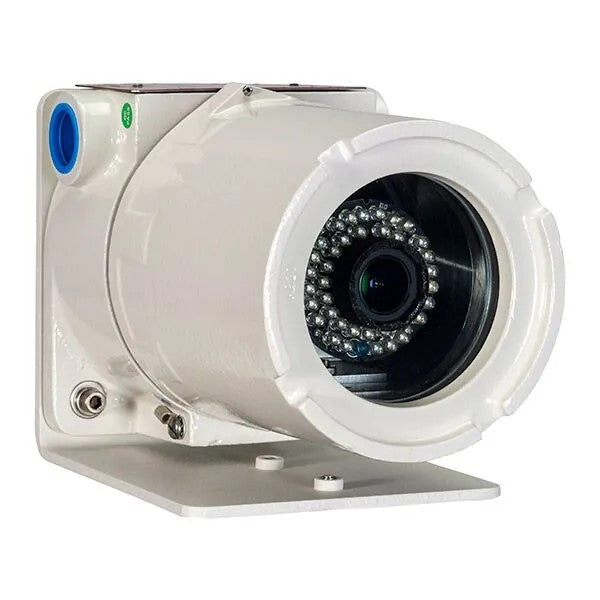

The AMZ-3041-2 is a high quality, high-resolution, analog, day/night video camera with a vari-focal and auto iris-lens. A variety of lens options are available to suit any application.
The camera is housed in a heavy-duty, cast-aluminum, weatherproof enclosure suitable for hostile environments. The camera is sealed and certified for use in hazardous areas. The complete assembly is rated NEMA 7/4x. A stainless-steel enclosure option is also available.
The AMZ-3041-2 is ready for mounting using the included mounting arm. The camera requires only power and a coax video connection. A separate video encoder is required to IP-enable this camera system.
| Imager | 1/3" DPS CMOS | Voltage Required | (see ordering information) |
| Minimum Illumination | 0.3 Lux (color); 0.06 Lux (b/w) | Power Consumption | 0.7A @ 12 VDC 0.4A @ 24 VDC |
| White Balance | Auto | Operating Temperature | -40° to 60° C |
| Auto Iris | DC iris | Storage Temperature | -45° to 65° C |
| Gain | Auto | Dimensions | 5.50" H x 5.50" W x 7.75" D (Aluminum) 5.50" H x 5.50" W x 8" D (Stainless Steel) |
| Horizontal Resolution | 525 TV lines (NTSC) 625 TV lines (PAL) |
Mount | Wall Mount Standard |
| S/N Ratio | 50 dB (p-p/rms) or better | Protection Class | NEMA Type 4x, IP66 |
| F-number | 1.4 | Regulatory Approvals | |
| Video Output | VBS 1.0V p-p/75 Ohms | Safety | Conforms to UL STD 61010-1 + UL1203 Certified to CSA STD CSA22.2 NO.30 + CAN/CSA C22.2 No. 25 EN 60079-0:2012+A11:203, EN 60079-1:2007, EN 60079-31:2014. ATEX 2014/34/EU. |
| Weight | 8.1 lbs. (Aluminum Enclosure) 10.2 lbs. (Stainless Steel Enclosure) |
Hazardous Area | Class I, Division 1, Groups B-D, Class II, Division 1, Groups E-G, II 2 GD Ex db IIC T6 Gb, II 2 GD Ex tb IIC T80°C Db IP66 |
