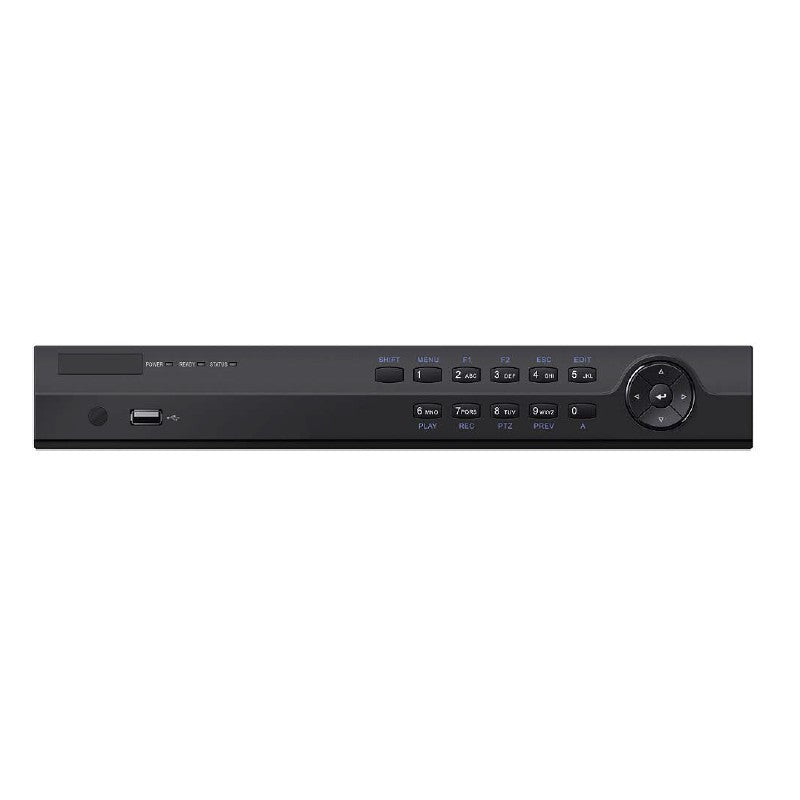

Hikvision OEM SVDN8704Q-P4 Galaxy Platinum 4CH H.264 6MP NVR w/ 4PoE
Hikvision OEM SVDN8704Q-P4 Galaxy Platinum 4CH H.264 6MP NVR w/ 4PoE
Model: SVDN8704Q-P4
Regular price
$195.75
Sale price
$195.75
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
40Mbps, 4x6MP@60fps, H.264, 1CH HDMI, 1CH VGA, Audio 1in/1out, 1x SATA up to 6TB/ea, 1x USB2.0, 1x USB3.0, 1x RJ45 10/100/1000M, DC48V, 1U, Toshiba 1TB HDD included
Couldn't load pickup availability
- Third-Party network cameras supported
- Up to 6MP resolution recording
- HDMI and VGA output at up to 1920x1080P resolution
- Plug & Play with 4 independent PoE network interfaces
- 1 SATA HDD interface up to 6TB
| Video/Audio Input | |
| IP video input | 4-ch |
| Two-way audio input | 1-ch, RCA(2.0Vp-p, 1kOhm) |
| Incoming bandwidth | 40Mbps |
| Outgoing bandwidth | 80Mbps |
| Remote connections | 128 |
| Video/Audio output | |
| Recording resolution | 6MP |
| HDMI/VGA output | 1-ch, resolution: 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz, |
| Frame Rate | Main Stream: 60fps, Sub Stream: 60fps |
| Audio output | 1-ch, RCA (lINEAR, 1kOhm) |
| Decoding | |
| Playback resolution | 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ UXGA/ 720P/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF |
| Capability | 4-ch |
| Hard disk | |
| SATA | 1 SATA |
| Capacity | Up to 6TB capacity for each HDD |
| External interface | |
| Network interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet interface |
| USB port | 1x USB2.0, 1x USB3.0 |
| PoE Interface | |
| Interface | 4 independent 100 Mbps PoE |
| Power | </= 50W |
| Supported standard | AF/AT |
| General | |
| Power Supply | 48V DC |
| Consumption | </= 10W |
| Working temperature | 14deg.F ~ 131deg.F (-10deg.C ~ +55deg.C) |
| Working humidity | 10% ~ 90% |
| Chassis | 1U chassis |
| Dimensions (WxDxH) | 12.4" x 9.0" x 1.8" (315 x 230 x 45mm) |
| Weight | </= 4.4lb (2kg) |
