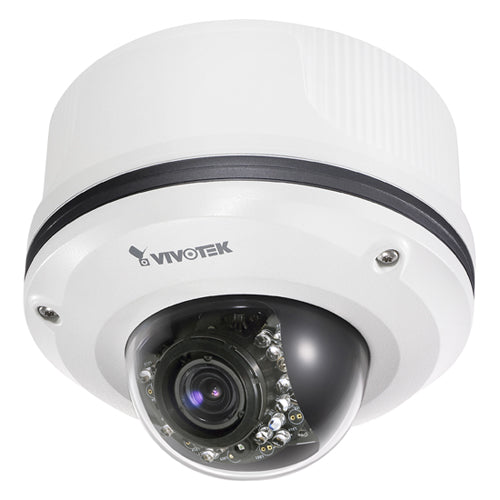

VIVOTEK 2MP H.264 Vivotek IP Camera
VIVOTEK 2MP H.264 Vivotek IP Camera
Model: FD8361L
Regular price
$771.40
Sale price
$771.40
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Outdoor, Day & Night, 1600x1200 (2MP), Triple (H.264/MPEG-4/MJPEG), 1/3.2"CMOS, 30 fps @ 800x600, 15 fps @1600x1200, Auto-Iris Vari-focal 3~9mm Lens, Wired, PoE, IP66, SD Card Slot, ONVIF
Couldn't load pickup availability
- 2-megapixel CMOS Sensor
- 3 ~ 9 mm Vari-focal, Auto-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, effective up to 20 Meters
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Multiple Simultaneous Streams
- Video Cropping for Bandwidth Saving
- ePTZ for Data Efficiency
- Activity Adaptive Streaming for Dynamic Frame Rate Control
- Tamper Detection for Unauthorized Changes
- Vandal-proof and Weather-proof IP66 rated Housing
- Built-in 802.3af Compliant PoE (Class 3)
- Built-in SD/SDHC Card Slot for On-board Storage
- Built-in Heater and Fan, supported by PoE
- 3-axis Mechanical Design for Ceiling/Wall Mount Installation
- Supports ONVIF Standard to Simplify Integration and Enhance Interoperability Approvals
| System | CPU: TI DM365 SoC Flash: 128MB RAM: 256MB Embedded OS: Linux 2.6 |
| Lens | f=3 ~ 9 mm F 1.2 (wide) F 2.1 (tele) auto iris Board lens Vari-focal Removable IR-cut filter for day & night function |
| Angle of View | 31.7 ~ 93.0 (horizontal) 23.8 ~ 68.4 (vertical) |
| Shutter Time | 1/5 ~ 1/40,000 sec |
| Image sensor | 1/3.2" CMOS in 1600x1200 Resolution |
| Minimum Illumination | 0 Lux / F1.2 ( IR LED on ) |
| IR Illuminators | Built-in IR illuminators, Effective up to 20 meter |
| Video | Compression: H.264, MPEG-4 & MJPEG Streaming: Simultaneous multiple streams H.264 streaming over UDP, TCP, HTTP or HTTPS H.264/MPEG-4 multicast streaming MPEG-4 streaming over UDP, TCP, HTTP or HTTPS MPEG-4 multicast streaming MJPEG streaming over HTTP or HTTPS Supports activity adaptive streaming for dynamic frame rate control Supports video cropping for bandwidth efficiency Supports ePTZ for data efficiency Supports 3GPP mobile surveillance Frame rates: H.264: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200 MPEG-4: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200 MJPEG: Up to 30 fps at 1280x720, Up to 15 fps at 1600x1200 BNC connector for video output NTSC/PAL video output switch |
| Image Settings | Adjustable image size, quality, and bit rate Time stamp and text caption overlay Flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance and exposure AGCAWBAES Automatic, manual or scheduled day/night mode Supports privacy masks BLC (Backlight compensation) |
| Networking | 10/100 Mbps Ethernet, RJ-45 ONVIF support Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
| Alarm and Event Management | Triple-window video motion detection Event notification using HTTP, SMTP, or FTP Local recording of MP4 files Tamper Detection |
| On-board Storage | SD/SDHC card slot Stores snapshots and video clips |
| Security | Multi-level user access with password protection IP address filtering HTTPS encrypted data transmission 802.1X port-based authentication for network protection |
| Users | 10 clients on-line monitoring at the same time |
| Dimensions | Diam.: 170mm x 133 mm Cable length: 690 mm Cable diameter: Diam. 10 mm; Max Connector:Diam. 18 mm |
| Weight | Net: 1907g |
| LED Indicator | System power and status indicator |
| Power | 24V AC Power consumption: Max. 5.3 W Power consumption: Max. 9.9 W (with heater, fan, and IR illuminator) 802.3af compliant Power-over-Ethernet (Class 3) |
| Housing | Weather-proof IP66-rated housing |
| CEC-TickFCCLVDVCCI | |
| Operating Environments | Temperature: -30 ~ 50 C (-22 ~ 122 F ) Humidity: 20 ~ 95% |
| Viewing System Requirements | OS: Microsoft Windows 2000/XP/Vista/7 Cell phone: 3GPP player Real Player: 10.5 or above Quick Time: 6.5 or above |
| Installation, Management, and Maintenance | 3-axis mechanism for flexible ceiling and wall mount installation Drop-ceiling mount installation Camera angle adjustment: Pan range: 350 Tilt range: 85 Rotate range: 350 Installation Wizard 2 Supports firmware upgrade |
| Applications | SDK available for application development and system integration |
| Warranty | 24 Months |
