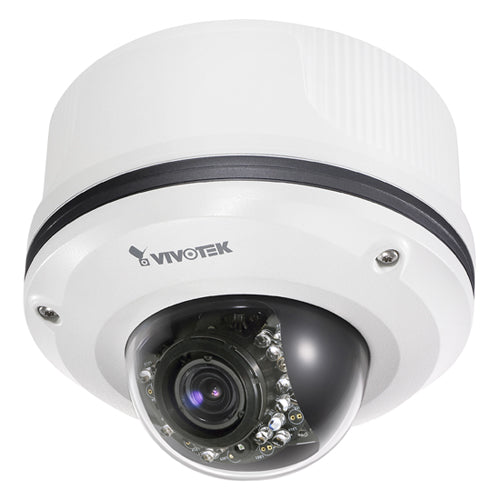

VIVOTEK 2MP H.264 Day & Night Vandal-proof IP Camera
VIVOTEK 2MP H.264 Day & Night Vandal-proof IP Camera
Model: FD8361
Regular price
$939.60
Sale price
$939.60
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Outdoor, Day & Night, 1600x1200 (2MP), Triple (H.264/MPEG-4/MJPEG), 1/3.2"CMOS, 30 fps @ 800x600, 15 fps @1600x1200, 2-Way Audio, Auto-Iris Vari-focal 3~9mm Lens, Wired, PoE, IP66, SD Card Slot, ONVIF
Couldn't load pickup availability
- 2-megapixel CMOS Sensor
- 3 ~ 9 mm Vari-focal, Auto-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, effective up to 20 Meters
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Multiple Simultaneous Streams
- Video Cropping for Bandwidth Saving
- ePTZ for Data Efficiency
- Activity Adaptive Streaming for Dynamic Frame Rate Control
- Tamper Detection for Unauthorized Changes
- Vandal-proof and Weather-proof IP66 rated Housing
- Built-in 802.3af Compliant PoE
- Built-in SD/SDHC Card Slot for On-board Storage
- Built-in Heater and Fan, supported by PoE
- 3-axis Mechanical Design for Ceiling/Wall Mount Installation
- Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
* VIVOTEKs ONVIF compatible products are fully certified with the latest ONVIF test tool released by ONVIF technical services Committee. VIVOTEK does not guarantee interoperability with third party surveillance management software. For best ONVIF experience please contact us for ONVIF compatibility issues. Experienced in software integration, VIVOTEK offers the most prompt and professional ONVIF technical support in the market.
| System | CPU: TI DM365 SoC Flash: 128MB RAM: 256MB Embedded OS: Linux 2.6 |
| Lens | Board lens, Vari-focal, f = 3 ~ 9 mm, F1.2 (wide), F2.1 (tele), auto-iris Removable IR-cut filter for day & night function |
| Angle of View | 31.7deg. ~ 93.0deg. (horizontal) 23.8deg. ~ 68.4deg. (vertical) |
| Shutter Time | 1/5 sec. to 1/40,000 sec. |
| Image Sensor | 1/3.2" CMOS sensor in 1600x1200 resolution |
| Minimum Illumination | 0 Lux / F1.2 (IR LED on) |
| IR Illuminators | Built-in IR illuminators, effective up to 20 meters IR LED*18 |
| Video | Compression: H.264, MJPEG & MPEG-4 Streaming: Simultaneous multiple streams H.264 streaming over UDP, TCP, HTTP, or HTTPS MPEG-4 streaming over UDP, TCP, HTTP, or HTTPS MPEG-4 multicast streaming MJPEG streaming over HTTP or HTTPS Supports activity adaptive streaming for dynamic frame rate control Supports video cropping for bandwidth efficiency Supports ePTZ for data efficiency Supports 3GPP mobile surveillance Frame rates: H.264: up to 30 fps at 1280x720 up to 15 fps at 1600x1200 MPEG-4: up to 30 fps at 1280x720 up to 15 fps at 1600x1200 MJPEG: up to 30 fps at 1280x720 up to 15 fps at 1600x1200 Interface: BNC connector for video output NTSC/PAL video output switch |
| Image Settings | Adjustable image size, quality, and bit rate Time stamp and text caption overlay Flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, and exposure AGC, AWB, AES Automatic, manual, or scheduled day/night mode BLC (Backlight Compensation) Supports privacy masks |
| Audio | Compression: GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps G.711 audio encoding, bit rate: 64 kbps, ??-Law or A-Law mode selectable Interface: External microphone input Audio output Supports two-way audio via SIP protocol Supports audio mute |
| Networking |
10/100 Mbps Ethernet, RJ-45 |
| Alarm and Event Management | Triple-window video motion detection Tamper detection One D/I and one D/O for external sensor and alarm Event notification using HTTP, SMTP, or FTP Local recording of MP4 files |
| On-board Storage | SD/SDHC card slot Stores snapshots and video clips |
| Security | Multi-level user access with password protection IP address filtering HTTPS encrypted data transmission 802.1X port-based authentication for network protection |
| Users | Live viewing for up to 10 clients |
| Dimension | Diam. 170 mm x 133 mm |
| Weight | Net: 2,184 g |
| LED Indicator | System restore status indicator |
| Power | 12V DC 24V AC Power consumption: Max. 5.3W Max. 9.9W (with heater, fan, and IR illuminator) 802.3af compliant Power-over-Ethernet |
| Housing | Metal base and polycarbonate transparent cover Vandal-proof: 1,000 kg Weather-proof IP66-rated housing |
| Approvals | CE, LVD, FCC, VCCI, C-Tick |
| Operating Environments | Temperature: -30 ~ 50 °C (-22 ~ 122 °F ) Humidity: 20 ~ 95% RH |
| Viewing System Requirements | OS: Microsoft Windows 7/Vista/XP/2000 Browser: Mozilla Firefox, Internet Explorer 7.x or above Cell phone: 3GPP player Real Player: 10.5 or above Quick Time: 6.5 or above |
| Installation, Management, and Maintenance | 3-axis mechanism for flexible ceiling and wall mount installation Drop-ceiling mount installation Camera angle adjustment: pan 350deg., tilt 65deg., rotate 350deg. BNC connector for video output NTSC/PAL video output switch Installation Wizard 2 32-CH ST7501 recording software Supports firmware upgrade |
| Applications | SDK available for application development and system integration |
| Warranty | 24 months |
Specifications & Features:
